Evaluate artifacts over the entire detector with a single image.

ACR Accreditation Mammo FFDM™ Phantom - Gammex

ACR Accreditation Mammo FFDM™ Phantom Case - Gammex
Optional Case

The Mammo FFDM Phantom is the new, alternative ACR accreditation phantom for quality assurance (QA) in mammography. It was developed in cooperation with Gammex, the innovators behind the Mammo 156™ Phantom - the gold standard QA solution for breast health. Our Mammo FFDM Phantom has more challenging and sensitive targets than our proven Mammo 156. And it will help decrease QC time with simplified testing and documentation.

Simplify Testing and Save Time

The Mammo FFDM Phantom is designed to evaluate artifacts over the entire detector with a single image, supporting quick detection of objects from 0.14 to 1.0 mm.*

The Mammo FFDM Phantom was evaluated and accredited by the ACR, and is also referred to as the ACR Digital Mammography Phantom. The Mammo FFDM Phantom simulates radiographic characteristics of compressed breast tissue, including micro-calcifications, ductal fibrous structures and tumor-like masses. Identification of these small structures is essential to the early detection of breast cancer.

Improve Efficiencies for Physics Reviewers Evaluate Image Quality and Detect Artifacts
ACR Accreditation Mammo FFDM™ Phantom - Wax Insert - Gammex

Specifications
Wax and acrylic equivalent to 4.2 cm thick compressed breast tissue. 50% adipose and 50% glandular. Permits testing of 3.0 mGy dose limit.
Mammography Phantom: FFDM
Nylon Fibers (Fibrils): 6
Micro-calcifications (Specks): 6 Groups, Al2O2
Masses: 6
Dimensions (L/W/H): 31.0 ± 0.1 x 19 ± 0.1 x 4.1 ± 0.03 cm
Dimensions: Wax Insert (L/W/H): 12.98 (+ 0, - 0.04) x 6.98 (+0, -0.04) x 0.7 ± 0.02 cm
CNR Cavity Depth: 0.1 ± 0.005 cm
CNR Diameter: ± 0.05 cm
Compensator: 9 mil Polyvinylidene

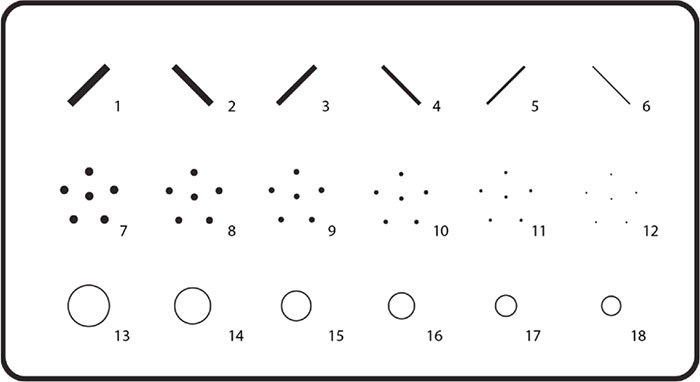

Wax Insert Text Objects
0.89 ± 0.05 0.33 ± 0.0100 1.00 ± 0.05
0.75 ± 0.03 0.28 ± 0.0083 0.75 ± 0.05
0.61 ± 0.03 0.23 ± 0.0069 0.50 ± 0.05
0.54 ± 0.03 0.20 ± 0.0059 0.38 ± 0.04
0.40 ± 0.03 0.17 ± 0.0084 0.25 ± 0.03
0.30 ± 0.03 0.14 ± 0.0070 0.20 ± 0.02
