Pro-MAM Performance
Routine Mammography Test Phantom - Diagnomatic by Pro-Project - 03-601

Pro-MAM Performance from Diagnomatic by Pro-Project provides targets for quick, repeatable checks of mammography imaging performance.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

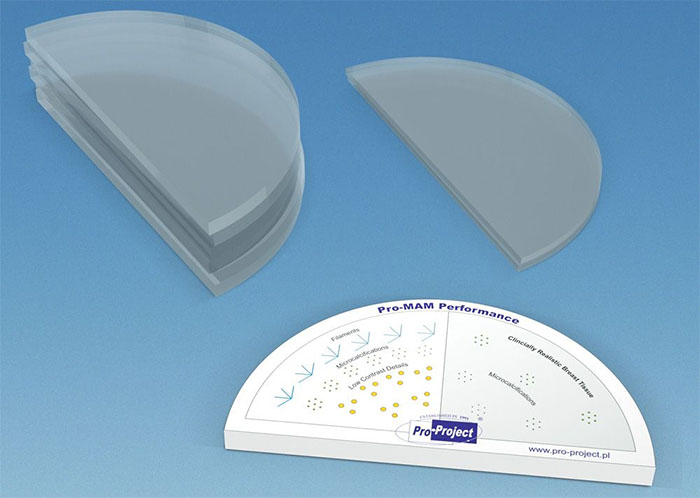

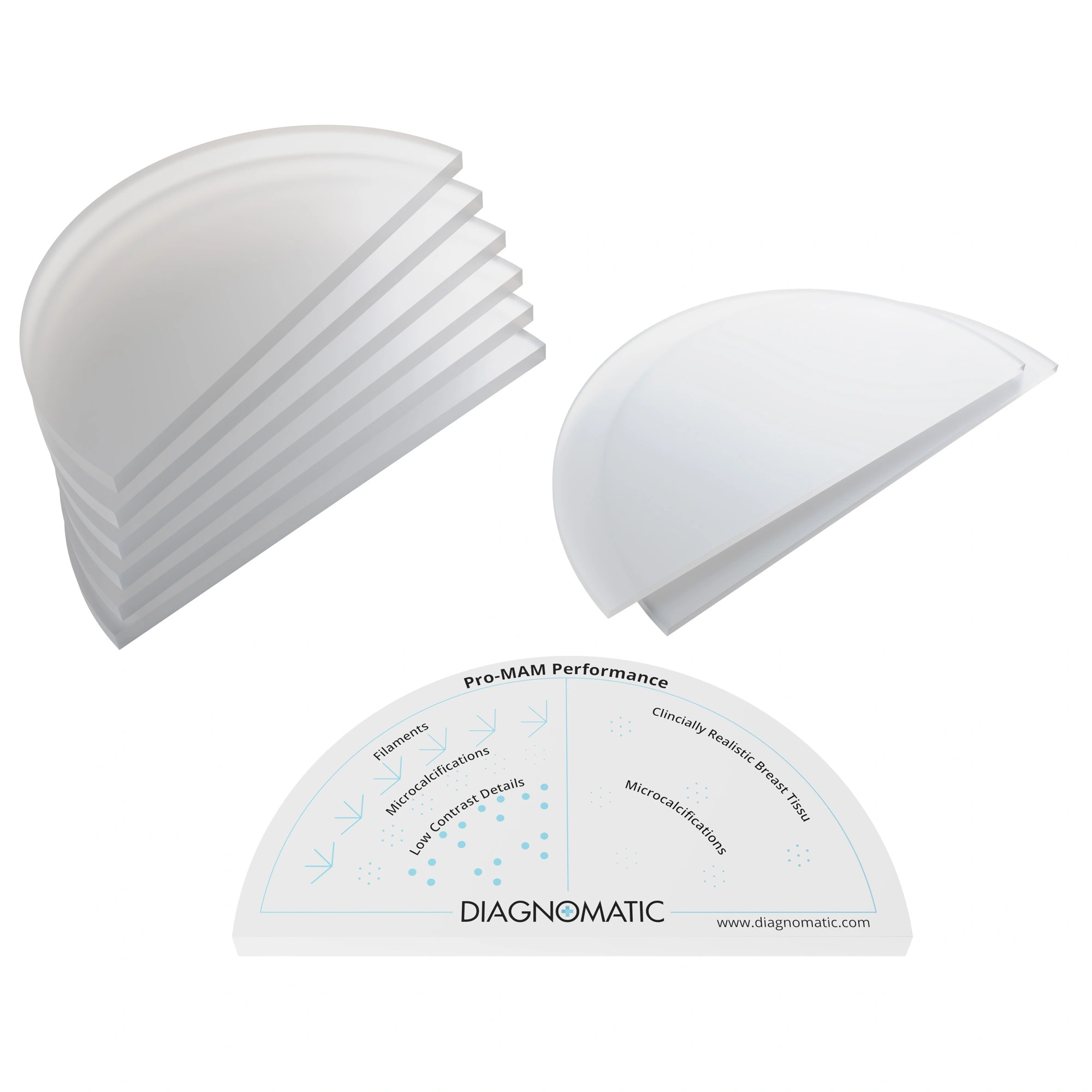

• 240 mm diameter semicircle
• first half of the test module contains:
  - 6 groups of 10 mm long multi-directional filaments of the following diameters: 0.40, 0.35, 0.30, 0.25, 0.225, 0.20 mm
  - 6 groups of microcalcifications in the following ranges: 354-224, 283-180, 226-150, 177-106, 141-90, 106-63 μm
  - 6 groups of 3 low contrast details, 3mm in diameter, producing nominal contrast at 28 kVp of: 0.04, 0.03, 0.02, 0.015, 0.01, 0.005 (each contrast is presented 3 times)
• second half of the test module contains:
  - clinically realistic breast tissue (not tissue equivalent to but simulating the appearance of the breast tissue) containing 6 groups of low contrast details with the same specifications as in the other half
• 6 PMMA plates 10 mm thick
• 2 PMMA plates 5 mm thick
• carrying case

Features and Test References

• complies with:
  – IEC 61223-3-2
• this is not an ACR approved phantom for accreditation
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
