Pro-MAM Gold
Mammography Contrast-Detail Phantom - Diagnomatic by Pro-Project - 03-401

Pro-MAM Gold from Diagnomatic by Pro-Project uses gold targets to evaluate low-contrast detail visibility in digital mammography.

Click a photo or illustration to enlarge it.

Models and Ordering

Product highlights

• gold disc diameter accuracy of 0.001 mm (1 μm) and thickness accuracy of 0.1 nm (0.0001 μm)
• gold disc objects positioned as per EUREF specs
• objects’ diameter, thickness and layout can be modified according to individual specifications
• no materials other than PMMA are used, so there is no need to calculate PMMA-equivalent attenuation for other materials such as aluminium
• for full-field analog and digital units
• Diagnomatic software provides automatic and semi-automatic analysis of phantom’s images, returning the Contrast-Details curve and the remaining data required for evaluation

Specifications

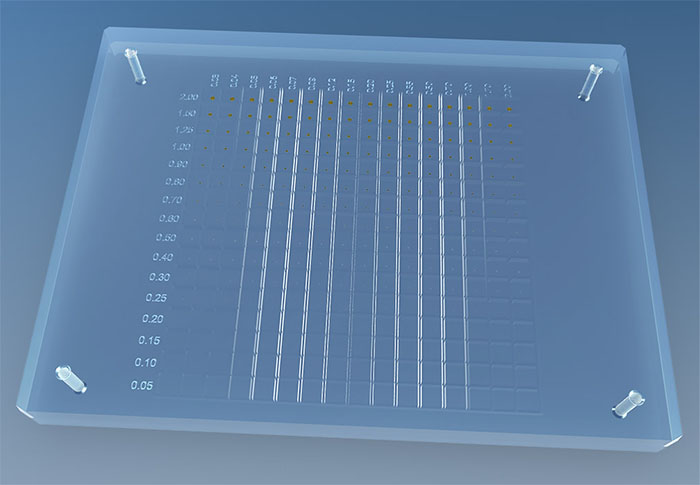

• main PMMA module size: 240 x 180 x 20 mm
• main module contains gold (99.99%) discs organized in a 16 x 16 matrix (diameter x thickness) placed at a depth of 10 mm
• one or multiple discs per cell configuration
• discs have the following standard diameters: 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.25, 1.5 and 2.0 mm
• discs have the following standard thicknesses: 30, 40, 50, 60, 70, 90, 120, 150, 200, 250, 350, 500, 700, 1000, 1700 and 2000 nm
• diameter accuracy 0.001 mm (1 μm)
• thickness accuracy: 0.1 nm (0.0001 μm)
• 2 additional 240 x 180 x 10 mm PMMA plates
• 2 additional 240 x 180 x 5 mm PMMA plates
• carrying case

Features and Test References

• complies with:
  – 4th edition of the European Guidelines for Quality Assurance in Breast Cancer Screening and Diagnosis (EPQC)
  – EUREF type test protocol version 1.2
  – IEC 61223-3-2
  – NHSBSP Equipment Report 0604, Commissioning and Routine Testing of Full Field Digital Mammography Systems Published April 2009 (Version 3)
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
