QUART CompFor MTS - 12331 & 12332
Mammography Compression Force Test Set
The set to measure compression force of mammography systems was compiled to meet all requirements of DIN 6868-152 and 6868-7 as well as IEC 61223-3-2 and 61223-2-10.
The compression force of mammography systems is regularly to be measured in both automatic and manual mode to assure accuracy and reliability.
Appropriate compression of the breast is one of the essential parameters to achieve an ideal imaging quality in mammography.

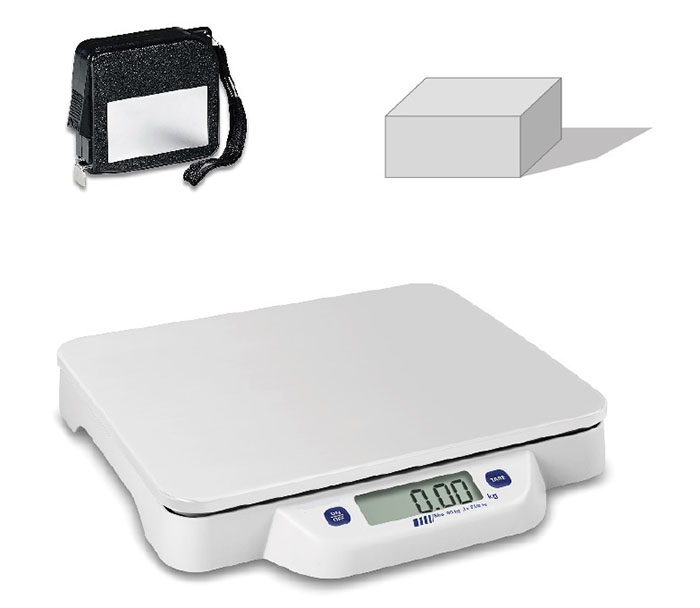

The test set consists of a foam cube featuring pre-defined size and density, electronic scales to fit the bucky, and a tape measure.
The recommended compression force per DIN standard can be checked as well as the maximum force which is not to be exceeded.
The top plate of the scales is made of stainless steel and can be taken off for cleaning or sanitisation purposes.
Technical Specifications- SCALES: Size 320 x 300 x 60 mm
- Measuring Range: 0 - 490 N (or 0 - 50 kg)
- Resolution: 0.2 N (or 20 g)
- Unit: kg
- FOAM BLOC: Size 80 x 80 x 40 mm / Density 30 ± 5 kg/m3
- TAPE MEASURE: Units mm / cm / m / Length 2 m
| Models and ordering | ||
| Item Number | Name | Description |
| 12331 | QUART CompFor MTS |
DIN/IEC Compression Force test set consisting of: electronic scales, foam bloc and tape measure.
No calibration certificate included. |
| 12332 | QUART CompFor MTS ref |
DIN/IEC Compression Force test set consisting of: electronic scales, foam bloc and tape measure.
Includes calibration certificate. |
