Pro-Euro

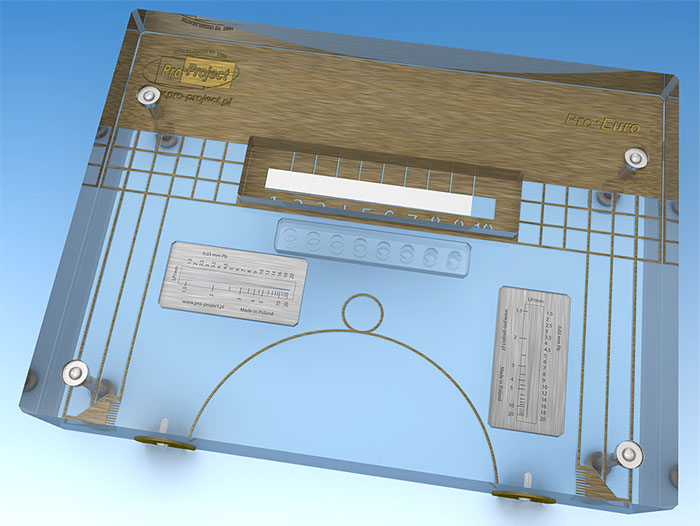

Mammography Test Phantom - Diagnomatic by Pro-Project - 03-101

Pro-Euro from Diagnomatic by Pro-Project provides a structured set of targets for checking mammography image quality.

Click a photo or illustration to enlarge it.

Models and Ordering

It can be used to test

• optical density in the reference point
• spatial resolution
• dynamic range – image contrast
• threshold contrast visibility
• effective radiation field
• film processing
• automatic Exposure Control

Specifications

• dimensions: 182.5 x 245 x 45 mm
• additional 20 mm PMMA plate
• reference point (60 mm from the thorax side)
• pattern for line pair resolution evaluation (from 1.5 to 20.0 LP/mm) perpendicular and parallel to the thorax side
• 10-step aluminium wedge
• 8 low contrast objects
• markings (graduations) for assessment of the effective radiation field
• space covered with brass for sensitometric measurements
• area for the measuring chamber of the automatic exposure timer

Features and Test References

• complies with:
  – IEC 61223-3-2
  – “European Guidelines for Quality Assurance in Mammography Screening”
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
