Pro-MAM Geometry
Mammography Collimation Test Tool - Diagnomatic by Pro-Project - 03-107

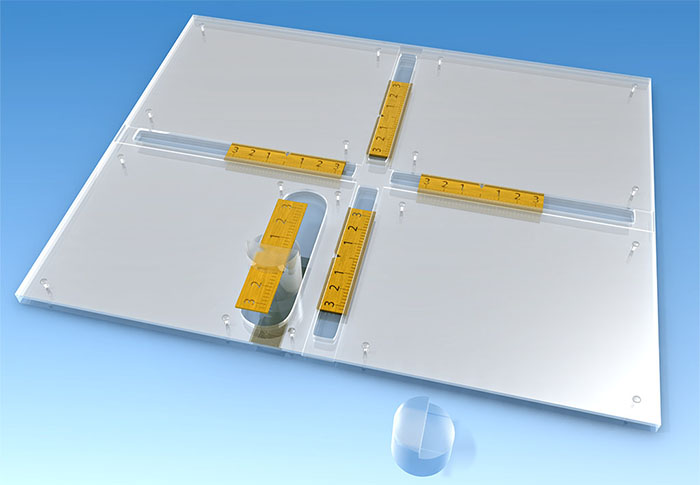

Pro-MAM Geometry from Diagnomatic by Pro-Project supports repeatable mammography field and collimation checks with a fixed-height paddle support.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 300 x 240 mm
• measurement can be repeated under identical geometry
• compression paddle rests on peg exactly 4.2 cm above the Bucky
  – no measurement of compression paddle height needed
• adaptable for 18 x 24 cm, 24 x 30 cm and magnification stand testing

Features and Test References

• complies with:
  – IEC 61223-3-2
  – MQSA testing requirements as contained in the ACR Mammography QC Manual
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
