Pro-MAM HCRP
Mammography Resolution Pattern - Diagnomatic by Pro-Project - 03-207

Pro-MAM HCRP from Diagnomatic by Pro-Project provides a protected bar pattern with 13 resolution groups spanning 5 to 20 line pairs per millimeter.

The protected Pro-Res MAM BarType 1 pattern can be oriented at 0°, 45° or 90°. Its holder represents a 50/50 glandular/adipose mixture and locates the target 4.5 cm above the support surface and 1 cm from the chest wall.

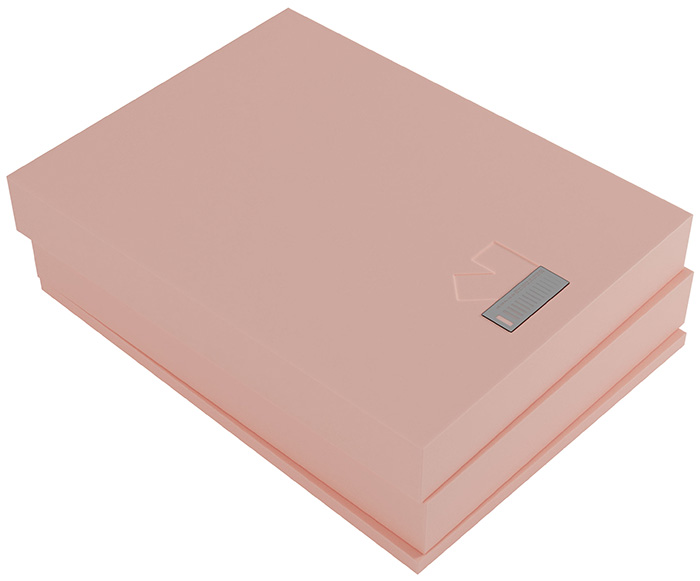

Three rectangular blocks made of flesh-coloured material stacked on top of each other, the top of which has three slots arranged at 45 degrees to accommodate the resolution tile.
Three rectangular blocks made of flesh-coloured material stacked on top of each other, the top of which has three slots arranged at 45 degrees to accommodate the resolution tile.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
03-207Pro-MAM HCRP

Specifications

  • dimensions: 152.4 x 114.3 mm (6” x  4.5”)
  • thickness: 2x 20 mm, 1x 5 mm
  • test object: Pro-Res MAM BarType1 - bar pattern for the resolution assessment 5.0 - 20.0 LP / mm (13 groups)
  • other sizes upon request

Features and Test References

  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
