QUART AEC Mammography Sets - 13303 / 13303L
PMMA Slabs for Automatic Exposure Control Testing

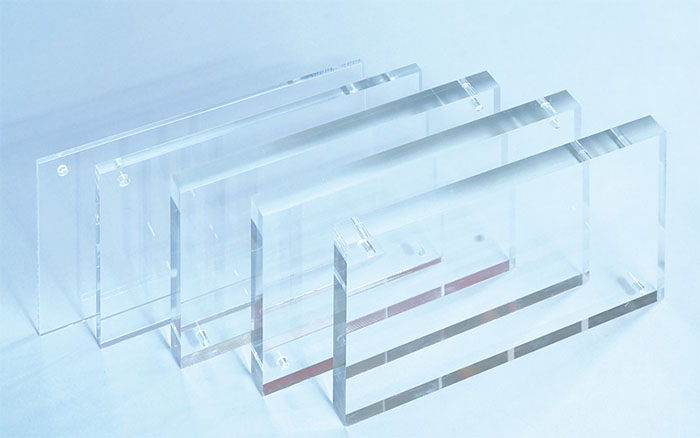

QUART AEC Mammography sets provide acrylic (PMMA) slabs for checking automatic exposure control performance in mammography equipment.
Choose the standard or large sheet format to suit your testing setup. Each set includes six sheets in the thicknesses shown below, allowing different attenuation thicknesses to be assembled for AEC measurements.
The sets are used for automatic exposure control tests according to IEC 61223-3-1.
Models & Technical Specifications
| Part Number / Size | Sheet Dimensions | Included Sheet Thicknesses | Sheets per Set |
|---|---|---|---|
| 13303 Standard | 240 x 180 mm | 3 x 20 mm / 1 x 10 mm / 2 x 5 mm | 6 |
| 13303L Large | 300 x 240 mm | 3 x 20 mm / 1 x 10 mm / 2 x 5 mm | 6 |
Both sizes contain the same thickness assortment, with a combined stack thickness of 80 mm. Additional sheets are available on request.
For ordering information, request a quote from Supertech or call (800) 654-1054. Please specify 13303 or 13303L.
