ACR Accreditation Full Field Digital Mammography Phantom - CIRS 086
Evaluate FFDM System Performance

The CIRS Model 086, ACR Digital Mammography (DM) Phantom was designed under the sponsorship of the American College of Radiology (ACR) to test the performance of FFDM systems. Objects within the phantom simulate calcifications, ducts and tumor masses. The phantom is designed to determine if your DM system can detect small structures that are important in the early detection of breast cancer.

The critical component of the phantom is a 7 mm thick wax insert positioned within a matching cavity milled out in a polymethylmethacrylate (PMMA) block. The total attenuation under the wax insert is matched with the 4.1 cm thick surrounding PMMA by the use of a 0.23 mm "compensator" placed under the wax insert. The wax insert contains targets as per map (Figure 2). Fibers are monofilament nylon, simulated calcifications or "specks" are made of spherical glass and the masses simulate 10% adipose - 90% glandular breast tissue.

CIRS Model 086 includes carry case, user guide and 48-month warranty.

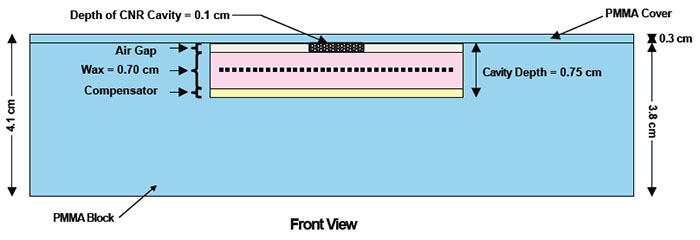

ACR Digital Mammography Phantom - CIRS 086 - Front View of Phantom

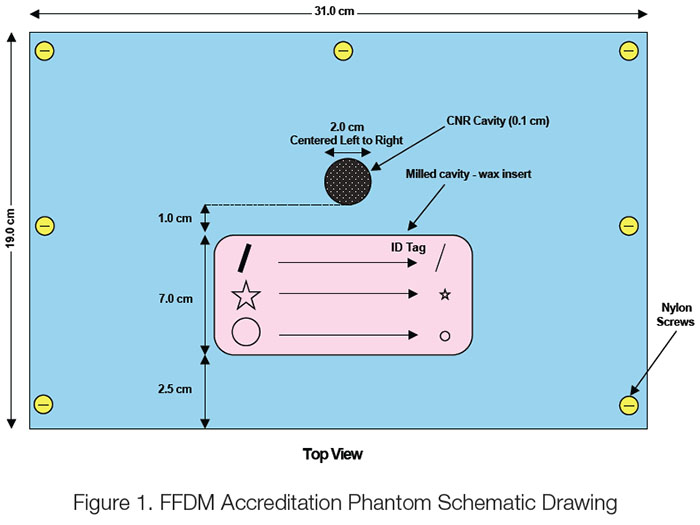

ACR Digital Mammography Phantom - CIRS 086 - Top View of Phantom

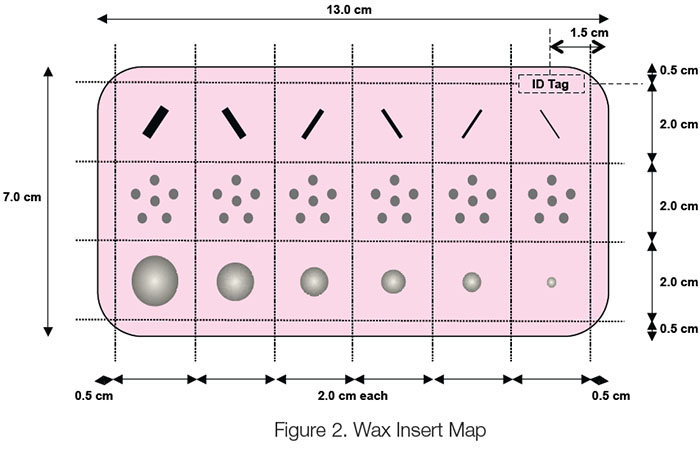

ACR Digital Mammography Phantom - CIRS 086 - Wax Insert

Fibers Speks (diameter) Masses (thickness)
0.89 mm fiber 0.33 mm sphere 1.00 mm mass
0.75 mm fiber 0.28 mm sphere 0.75 mm mass
0.61 mm fiber 0.23 mm sphere 0.50 mm mass
0.54 mm fiber 0.20 mm sphere 0.38 mm mass
0.40 mm fiber 0.17 mm sphere 0.25 mm mass
0.30 mm fiber 0.14 mm sphere 0.20 mm mass
Model 086 Includes
Full Field Digital Mammography Accreditation
1 Carry Case
1 User Guide
48-Month Warranty
