CT Perfusion Phantom - Gammex 432-BRN
Confidence in Perfusion Studies

Finally you can answer those questions with the Gammex CT Perfusion Phantom.

CT brain perfusion studies can play a key role in evaluating many disorders including stroke and help to identify patients who may benefit from thrombolytic therapies. Now there is an easy-to use contrast-simulation tool to help ensure that your CT scanner and perfusion software are providing you consistent results. The CT Perfusion Phantom is designed to mimic the injection of a contrast bolus into a region of interest allowing you to generate precise time attenuation curves (TAC), of differing velocities, to better monitor your CT Perfusion program, and patients. Once you benchmark perfusion rates and TACs for each system using the Gammex Perfusion Phantom, you will be better positioned to know if future measurements show a true change, or if follow-up results are within the precision error of the measurements. Use the dose port to optimize imaging and perfusion protocols and results at the lowest possible dose.

CT Perfusion Phantom - Gammex 432-BRN

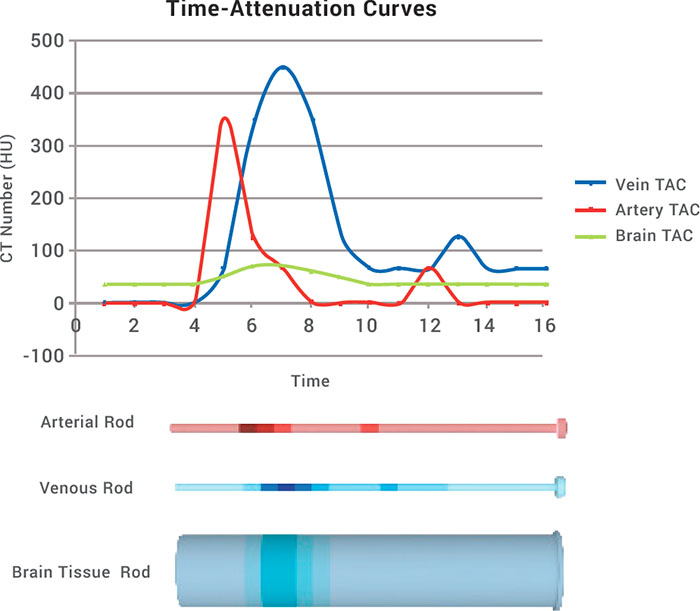

Differing concentrations of simulated blood and contrast move from
arteries, to veins to brain tissue including contrast recirculation


The CT Perfusion Phantom can help you stay compliant.

Examples of CT Perfusion Guidelines

ACR CT Perfusion recommendations1 FDA recommendations for CT Perfusion studies2
CT Perfusion Phantom - Gammex 432-BRN
Example perfusion maps at phantom speed 3 (1.75 mm/sec)

CT Perfusion Phantom - Gammex 432-BRN

Specifications
Covers and housings PVC, Acrylic
Dosimetry Port Standard CT Pencil Cambers up to 12.7 mm (0.5in) diameter
Central Scan Disk High Equivalency (HE) Brain Mimicking Material
Artery Rod 16 discrete sections of blood and contrast simulating materials to mimic arterial flow rates following a contrast bolus injection
Vein Rod 16 discrete sections of blood and contrast simulating materials to mimic venous flow rates following a contrast bolus injection
Tissue Rods (Qty 2) HE Brain Mimicking Material of 16 discrete sections of brain tissue to mimic tissue uptake rates following a contrast bolus injection
Velocity settings
(mm/second)
1.31, 1.50, 1.75, 2.10, 2.63 +/- 2%
Rod Travel Distance 10.5 cm (4.1 in)
Dimensions(L/W/H) 55.5 x 25.4 x 30.5 cm (22 x 10 x 12 in)
Power 8 AA batteries (included)
Weight 13.6 kg (29.9 lbs)

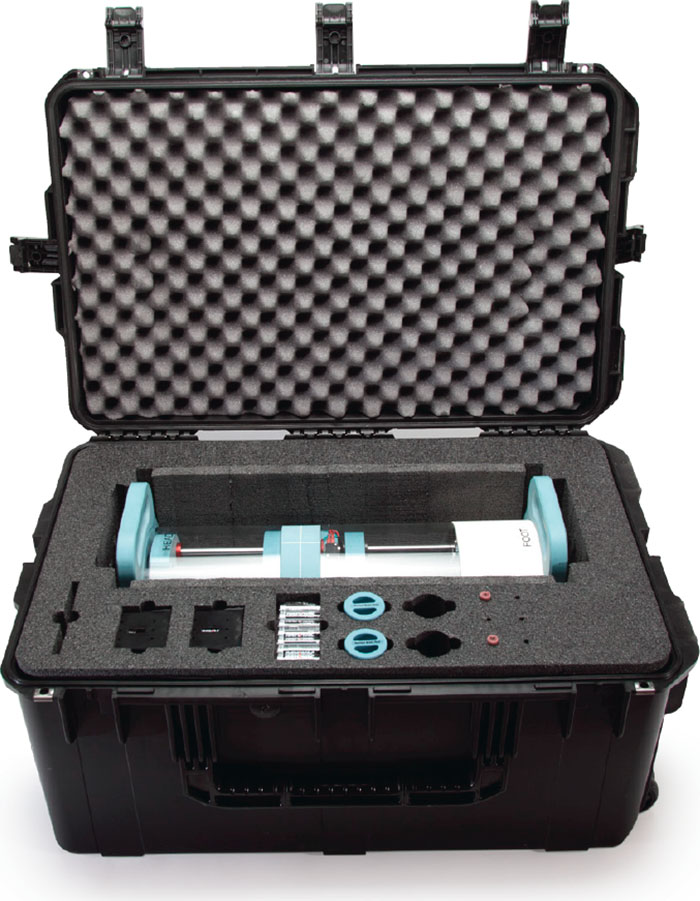

Custom Case Wheeled hard case with watertight seal
Accessories AA Batteries (included)

  1. http://www.acr.org/~/media/ACR/Documents/PGTS/guidelines/CT_Perfusion.pdf
  2. From FDA Update 11/9/2010 http://www.fda.gov/MedicalDevices/Safety/AlertsandNotices/ucm185898.htm
