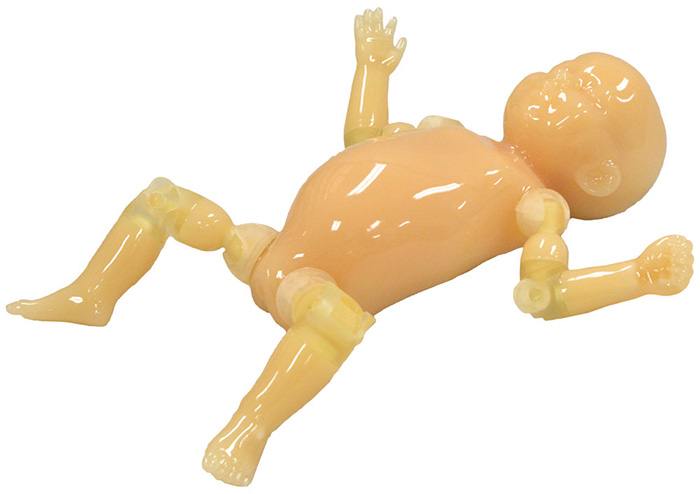

Newborn Whole Body Phantom "PBU-80" - Kyoto Kagaku - PH-50B
Neonate Phantom for CT
- Limbs rotate 360 degrees at shoulders and hip joints
- Left hand is clenched and right hand is open
- Kyoto Kagaku original human tissue substitute
- A hole for an ion chamber
- HU of average newborn
Applications:
- CT and plain X-ray
- Dosimetry
- Autopsy imaging
- Positioning:
- upright
- AP/supine
- AP/upright
- lateral/supine lateral
Anatomy:
|
|
|
Set Includes:
- Newborn whole body phantom
- Set of sample X-ray data (DVD)
- Storage case
Phantom Handling and Care:
- Do not disassemble: Although plastic screws at joints are visible, the phantom is not designed to be disassembled. Do not attempt to unscrew or remove the screws, or try to disassemble the phantom as it may damage the phantom.
- No shock, no force: Dropping the phantom or give a shock to the phantom can cause breakage. Also, do not force to move or bend the limbs of the phantom.
- Phantom Storage: Store the phantom avoiding high temperature, high humidity and direct sunlight to avoid deformation or malfunction. The color of the phantom may change over time but it will not affect the performance of the phantom.
| Specifications | |
| Phantom Size | 53 cm |
| Phantom Weight | 3.5 kg / 7.7 lb |
| Packing Size |
W57 x D44 x H29 cm W22.4 x D17.3 x H11.4 in |
| Packing Weight | 8 kg / 17.6 lb |
| Materials |
Soft tissue: urethane based resin (specific gravity: 1.06) Synthetic bone: epoxy resin (specific gravity: 1.31) *Phantom has no metal parts or liquid structure |
