Bronchoscopy-Compatible N-1 LUNGMAN with Pulmonary Vessels - PH-1D
LUNGMAN phantom with an open bronchus for bronchoscope
The PH-1D is a bronchoscopy-compatible chest phantom with an open airway and pulmonary vessels. The hollow trachea and bronchi allow a bronchoscope to be passed into the airway up to the fourth-to-fifth branches.

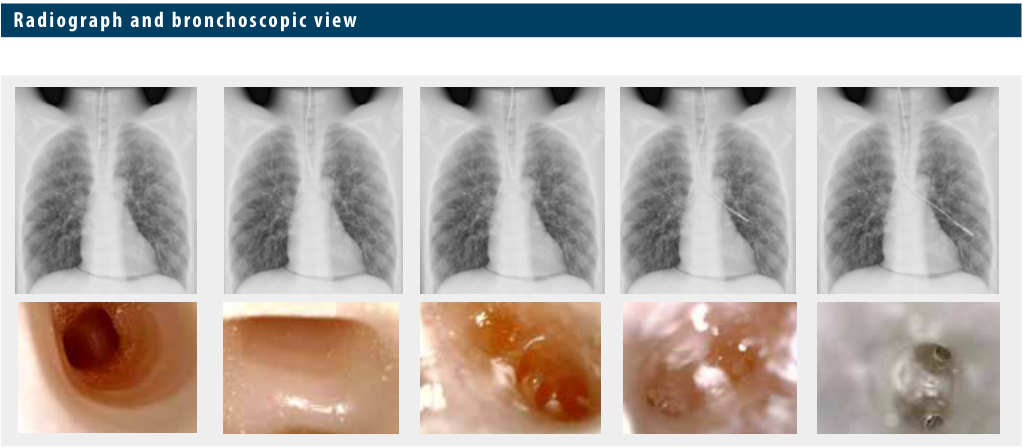

The phantom produces close-to-human medical images under plain X-ray, CT, and fluoroscopy. It combines bronchoscope access with radiographic imaging for a clear comparison between the bronchoscopic view and the bronchoscope position shown in the radiograph.
Download the PH-1D Brochure (PDF)
Features- Hollow trachea and bronchi allow bronchoscope passage into the airway up to the fourth-to-fifth branches
- Close-to-human medical images under X-ray, CT, and fluoroscopy
- Includes pulmonary vessels with a hollow trachea and bronchi
- Optional chest plates simulate the X-ray absorption of a larger body type
- No metal parts or liquid structure
- CT
- Plain X-ray
- Fluoroscopy
- Bronchoscope passage and airway-navigation training
- Hollow trachea and bronchi
- Pulmonary vessels
- Soft-tissue substitute
- Synthetic bones
- 1 Phantom body
- 1 Internal lung structure
Specifications
Model: PH-1D
Product Code: 41337-500
Phantom Size: Approx. W43 x D20 x H48 cm (W17 x D8 x H18 in.)
Chest Girth: Approx. 94 cm (37 in.)
Phantom Weight: Approx. 18 kg (39.6 lb)
Packing Size: Approx. W63 x D50 x H29 cm (W24.8 x D19.7 x H11.4 in.)
Packing Weight: Approx. 25 kg (55.1 lb)
Materials:
- Soft tissue: urethane-based resin, density 1.06
- Synthetic bone: epoxy resin, density 1.31
- 41337-010 Chest Plates for PH-1/N1
- 41363-020 Carrying Case for PH-1/N1
- 41337-070 N1 Simulated Tumors for PH-1
