CT Colonography Phantom NCCS - PH-49 - Kyoto Kagaku
Innovative study tool for safe and effective CT colon screening

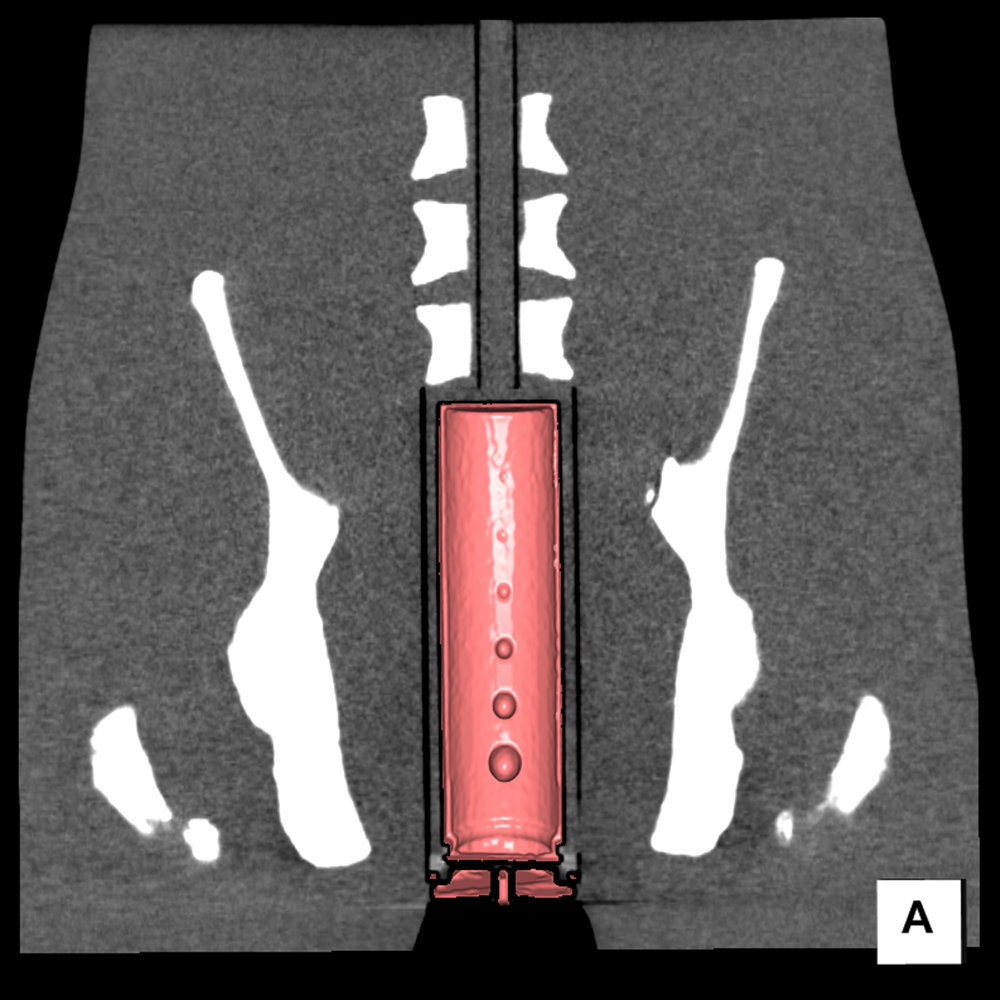

The PH-49 CT Colonography Phantom NCCS is a life-size lower torso phantom developed for virtual colonography and CT colon screening studies. Interchangeable cylindrical colon units can be positioned at the ascending colon, descending colon and rectum.
Four colon units are supplied. Each unit contains six simulated targets arranged along its inner wall. Contrast agent can be poured into the units for tagging studies, and a pencil-shaped ion chamber can be inserted at the center of the phantom for CTDI measurement.
Download the PH-49 Product Catalog (PDF)
Download the PH-49 Instruction Manual (PDF)
Download the PH-49 Imaging Examples (PDF)
- Life-size lower torso phantom with locations for colon units at the ascending colon, descending colon and rectum
- Four interchangeable colon units, each with six targets arranged along the inner wall
- Two depressed-type and two projection-type target variations for evaluation
- Contrast agent can be added to the colon units for tagging studies
- Central ion-chamber hole supports CTDI measurement with a pencil-shaped ion chamber

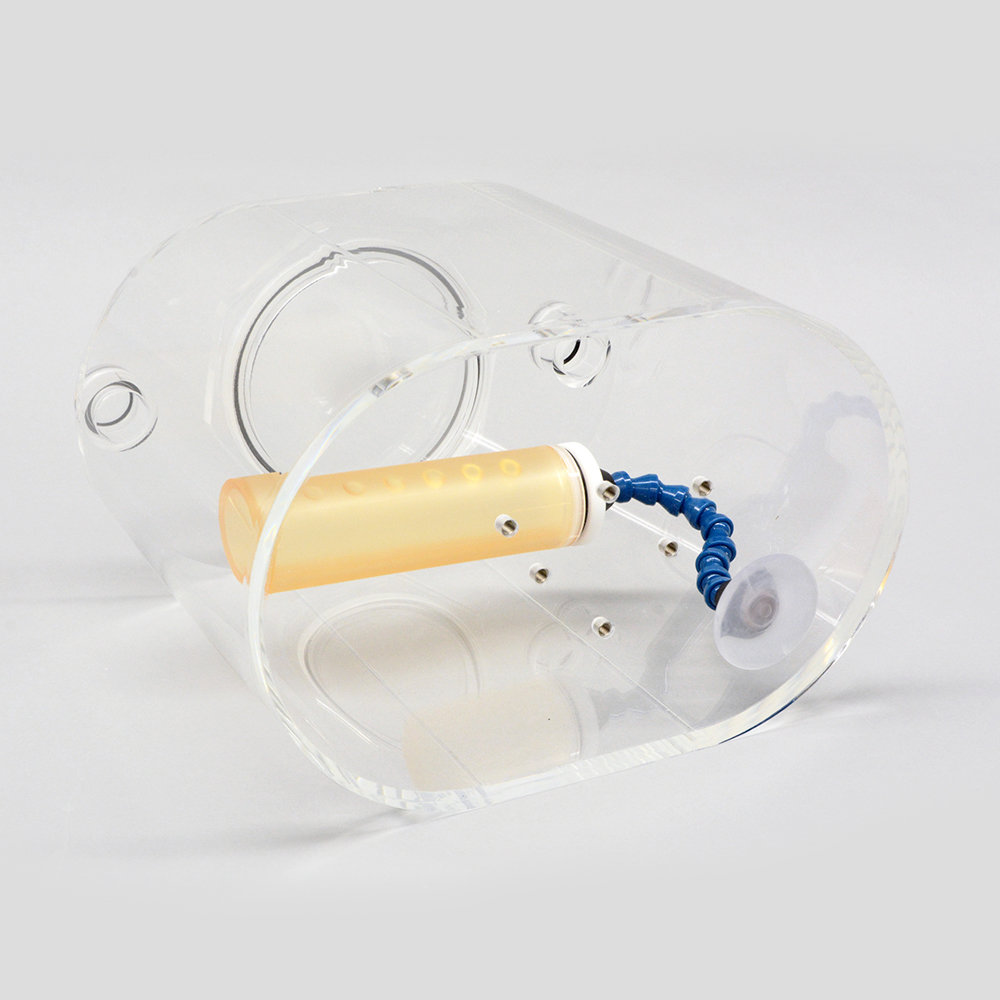

- Colon units can also be evaluated in the supplied water-fillable acrylic container
- CT and virtual colonography

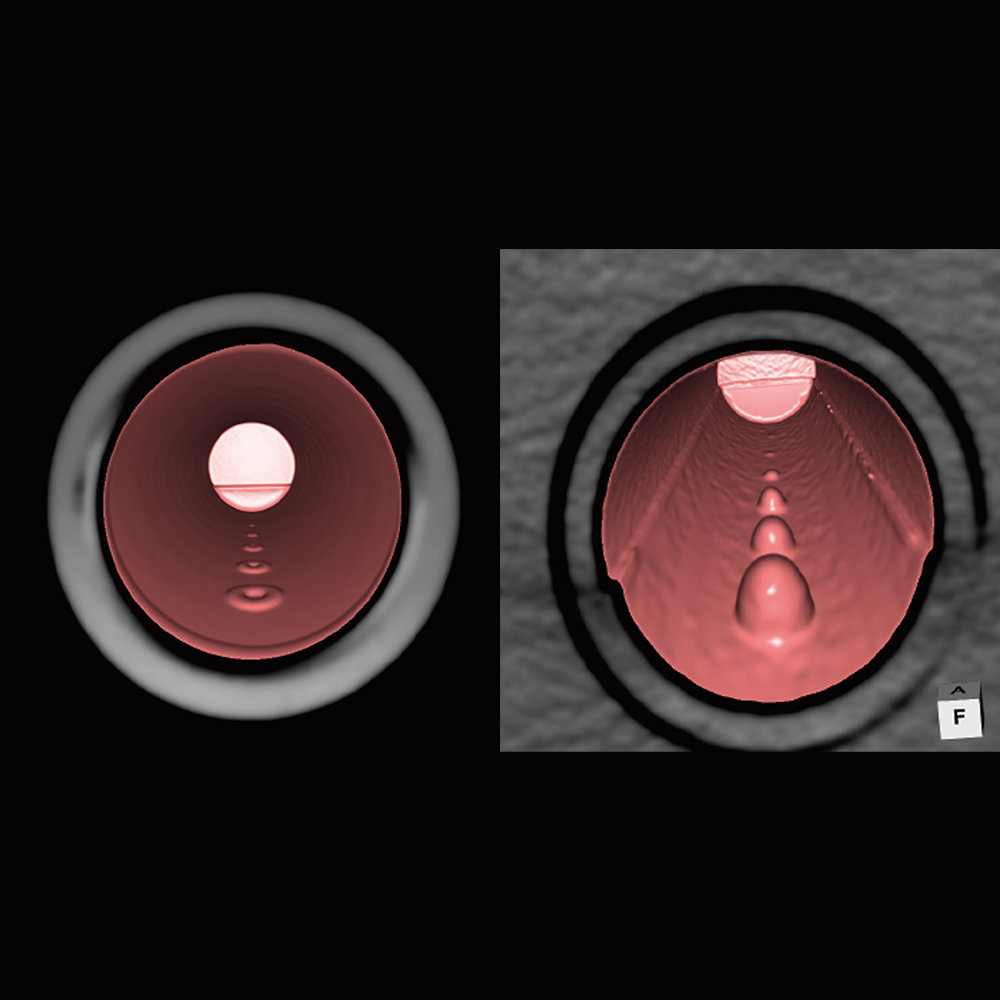

- Visualization and detection of simulated targets
- Study of optimal dose for low-dose CT colonography
- Evaluation of measurement accuracy for target size and volume
- Study of optimal contrast-media density
- CTDI measurement and dosimetry
- Lower torso with spine, pelvis and femurs
- Four cylindrical colon units with a 40 mm inner diameter
- Two depressed-type target variations: fixed diameter and fixed height
- Two projection-type target variations: fixed diameter and variable diameter-to-height ratio
- Simulated polyps represented by depressed-type and projection-type targets
- 1 lower torso phantom
- 1 acrylic container
- 4 colon units
- 3 plugs for colon-unit holes
- 1 plug with ion-chamber hole
- 1 plug for ion-chamber hole
- 1 colon-unit holder
- 1 base holder
- 1 storage case
- 1 instruction manual
Model: PH-49
Product Number: 41910-000
Variation: NCCS Type
Packing Size (approx.): W63 x D50 x H29 cm / W24.8 x D19.6 x H11.4 in
Packing Weight (approx.): 32 kg / 70.5 lb
Materials:
- Soft tissue: urethane-based resin (density 1.06)
- Synthetic bone: epoxy resin (density 1.31)
- Handle carefully and protect the phantom from drops, impacts and organic solvents
- Clean with a soft cloth moistened with water or mild detergent
- Store away from direct sunlight, high temperatures and high humidity
- Do not mark the phantom with a pen or leave printed materials in contact with its surface
- National Cancer Center (Japan)
