Ladder Phantom - PH-9-2 - Kyoto Kagaku

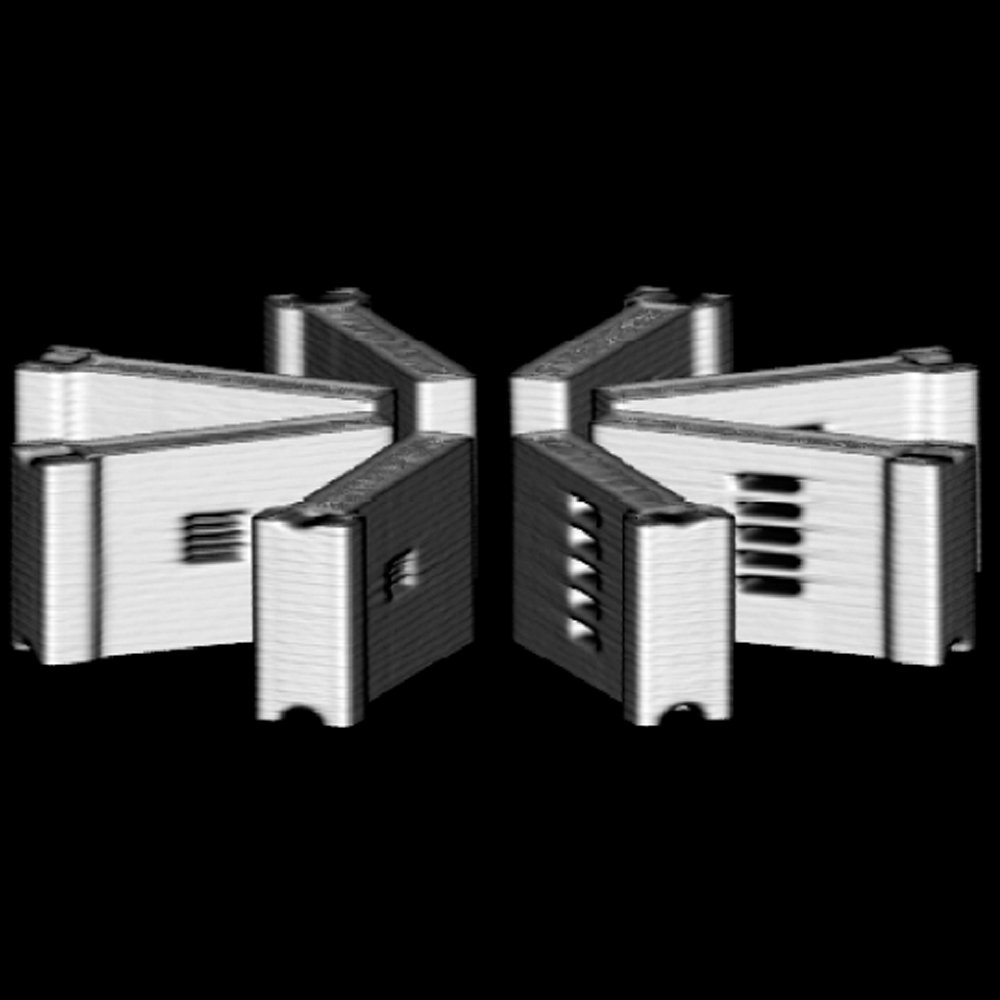

CT spatial-resolution evaluation using simulated contrast-enhanced vessels

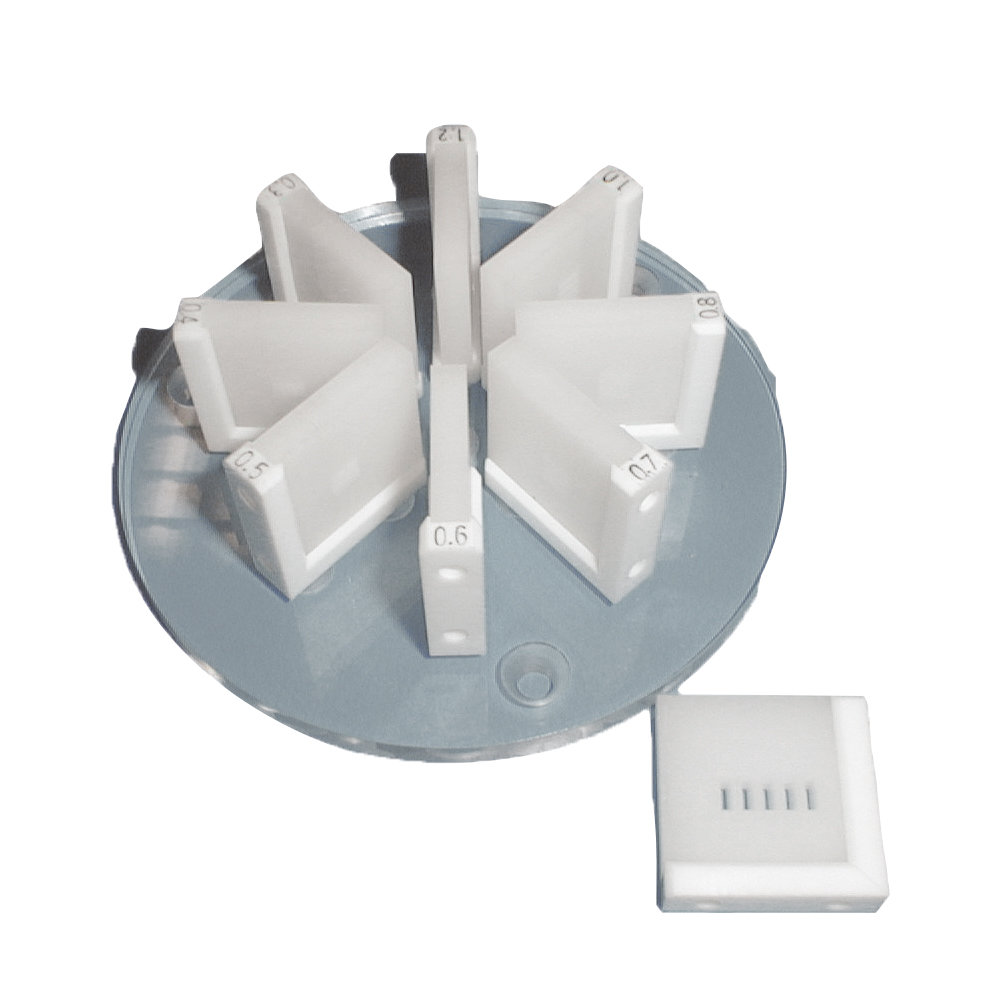

The PH-9-2 Ladder Phantom is a static, non-anthropomorphic CT image-quality phantom designed to evaluate spatial resolution using simulated contrast-enhanced vessels. Nine interchangeable ladder phantoms provide vessel-simulating slit widths from 0.3 to 1.5 mm.
Each 5 mm-thick ladder plate contains five vessel-simulating slits that are 5 mm long. The measurement region is made from epoxy resin and hydroxyapatite, with an acrylic-resin base.
Download the PH-9-2 Product Catalog (PDF)
Download the PH-9-2 Instruction Manual (PDF)
- Evaluates CT spatial resolution using simulated contrast-enhanced vessels
- Nine ladder phantoms provide different vessel-simulating slit widths
- Five slits are provided on each ladder plate
- Reference CT value of the measurement region is approximately 400 at 80 keV
- Static, non-anthropomorphic CT image-quality and quality-assurance design
- CT
- Spatial-resolution evaluation of simulated contrast-enhanced vessels
- CT image-quality and quality-assurance testing
- Slit widths: 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 1.0, 1.2 and 1.5 mm
- Slit length: 5 mm
- Slits per ladder plate: 5
- Ladder plate thickness: 5 mm

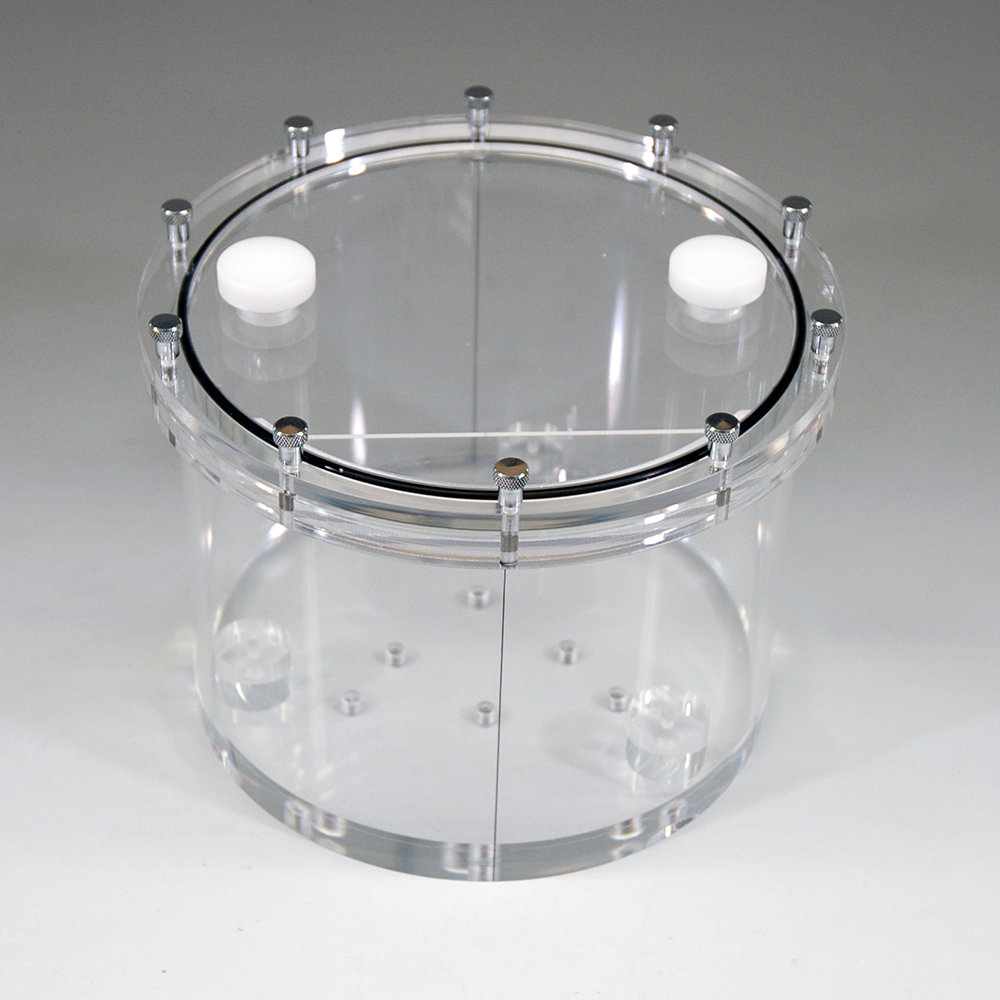

- 1 outer phantom
- 9 ladder phantoms
- 1 storage case
Model: PH-9-2
Product Number: 41334-130
Materials:
- Measurement region: epoxy resin and hydroxyapatite
- Base: acrylic resin
- 41919-010 table-top angle-adjustment holder
- Place the ladder phantoms and base into the outer phantom, then fill the outer phantom completely with water as directed in the instruction manual
- Handle the hard-resin components carefully and protect them from impact
- Store in a cool, dry location away from high temperature, humidity and direct sunlight
- Use water or neutral detergent for cleaning; do not use organic solvents or mark the phantom with pens
- PH-9 Multi-Slice CT Phantom MHT - a separate product for broader CT performance evaluation
