MRI/NM Head Phantom BHC - PH-34 - Kyoto Kagaku
Simulate life-size head images in MRI and nuclear medicine

MRI/NM Head Phantom BHC PH-34 Kyoto Kagaku with tumor spheres and insertion rods

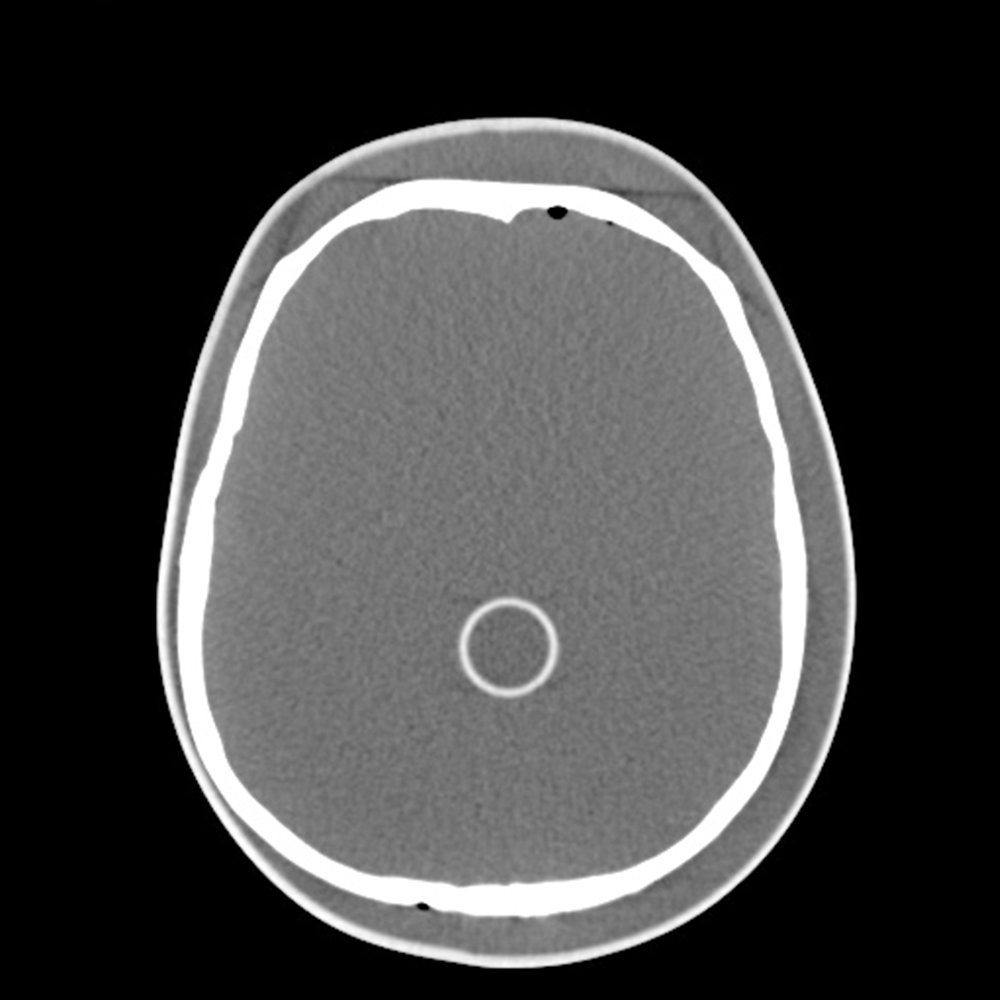

PH-34 CT image with simulated tumor sphere

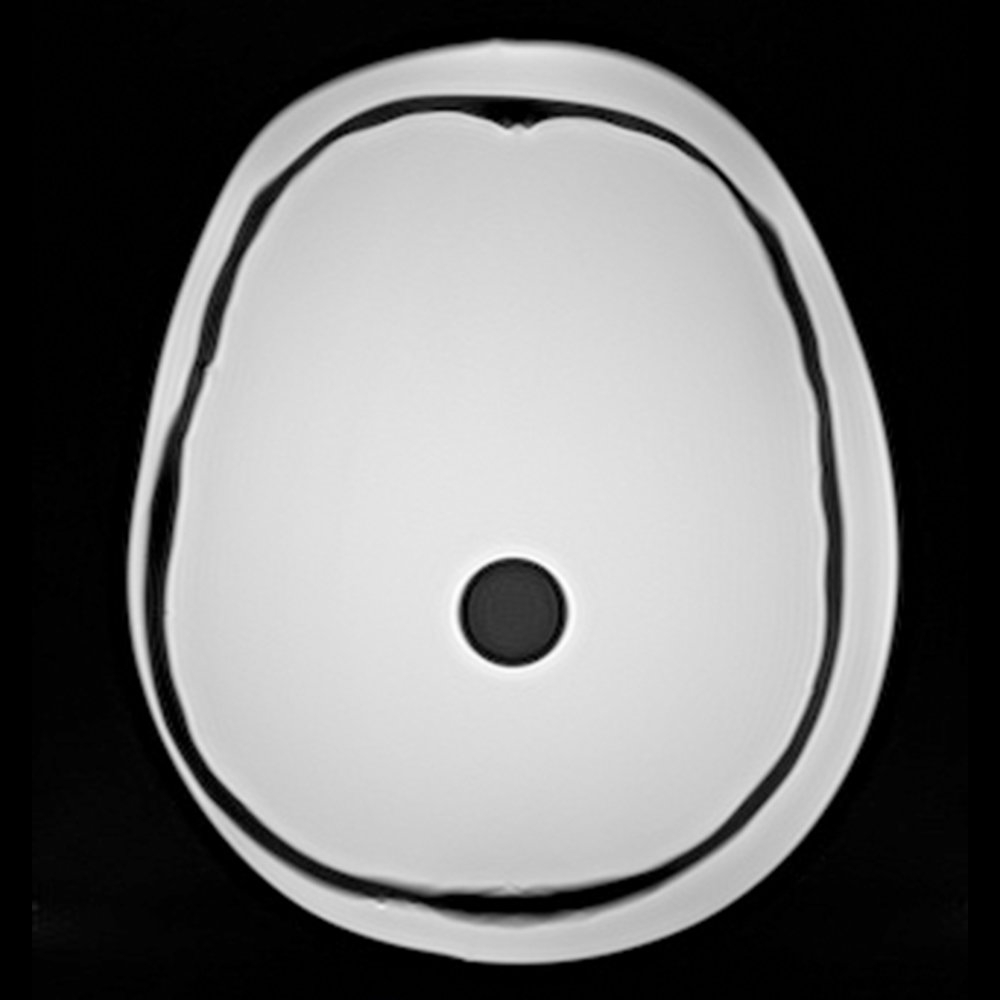

PH-34 MRI image with simulated tumor sphere

The PH-34 MRI/NM Head Phantom BHC is an adult-male-size head phantom for MRI, nuclear medicine, SPECT/CT and CT imaging. Its acrylic head container incorporates an artificial epoxy-resin skull with X-ray absorption characteristics approximating those of a human skull.

Two fillable tumor spheres, 10 mm and 20 mm in diameter, can be mounted on straight or curved insertion rods and positioned within the phantom. A 10 mM nickel chloride solution is supplied for MRI use.

Download the PH-34 Instruction Manual (PDF)
Download PH-34 Imaging Examples (PDF)

Features

One adult-male-size head phantom can be used with MR and nuclear medicine equipment
Artificial skull has X-ray absorption characteristics approximating those of a human skull
Skeletal structure is artificial bone; cancellous bone is not reproduced
Two fillable tumor spheres can be positioned freely using straight or curved insertion rods

Applications

MRI
Nuclear medicine
SPECT/CT
CT

Anatomy and Construction

Adult-male-size anatomical head contour
Acrylic-resin head container
Epoxy-resin artificial skull
Cancellous bone is not reproduced
10 mm and 20 mm diameter fillable tumor spheres

Set Contents

1 head phantom
1 tumor sphere, 10 mm diameter
1 tumor sphere, 20 mm diameter
2 straight insertion rods
2 curved insertion rods
10 L of 10 mM nickel chloride solution
1 storage case

MRI Solution and Handling

Nickel chloride solution is supplied for MRI use
T1 and T2 measurements are temperature sensitive; allow the phantom and solution to stabilize at room temperature before repeatable testing
Handle the special-resin phantom carefully and keep it at room temperature away from heat, moisture and direct sunlight
Do not mark the phantom with a pen or leave printed materials in contact with it, as stains may be permanent
Color may change over time without affecting phantom performance

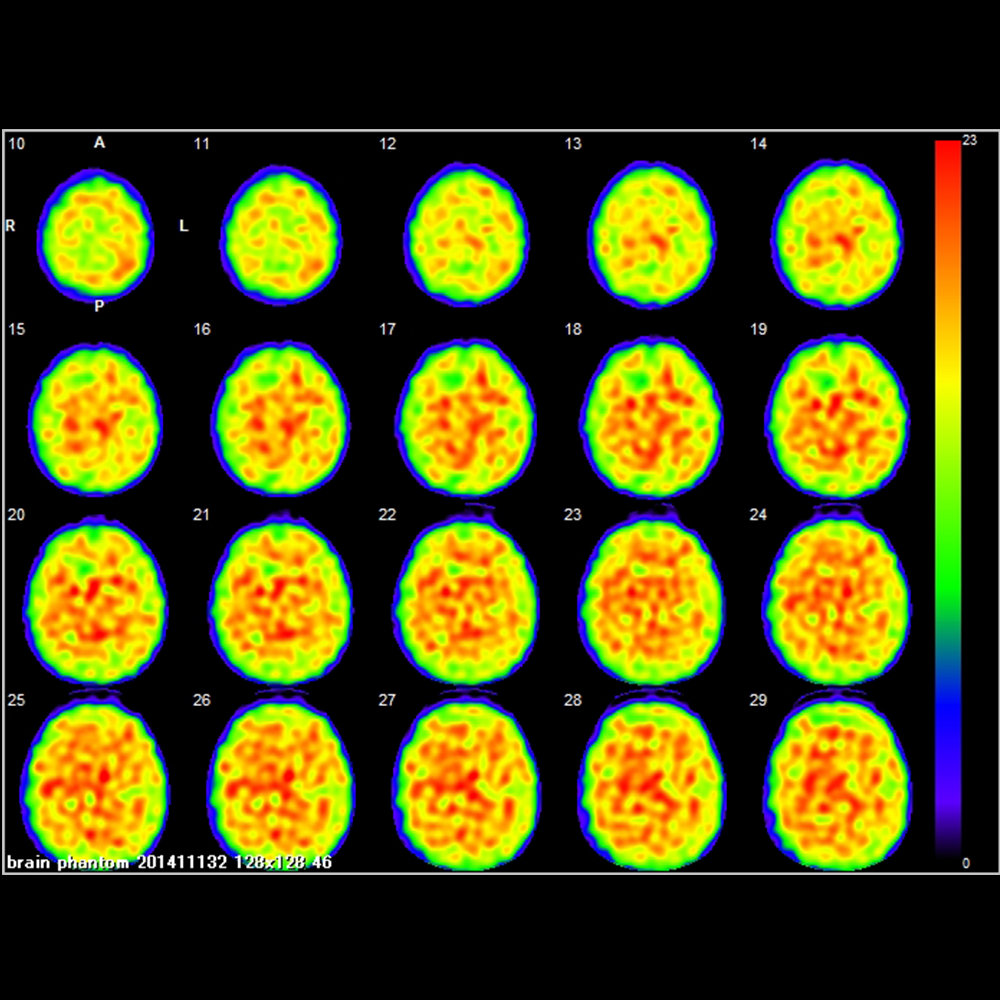

PH-34 nuclear medicine head image series

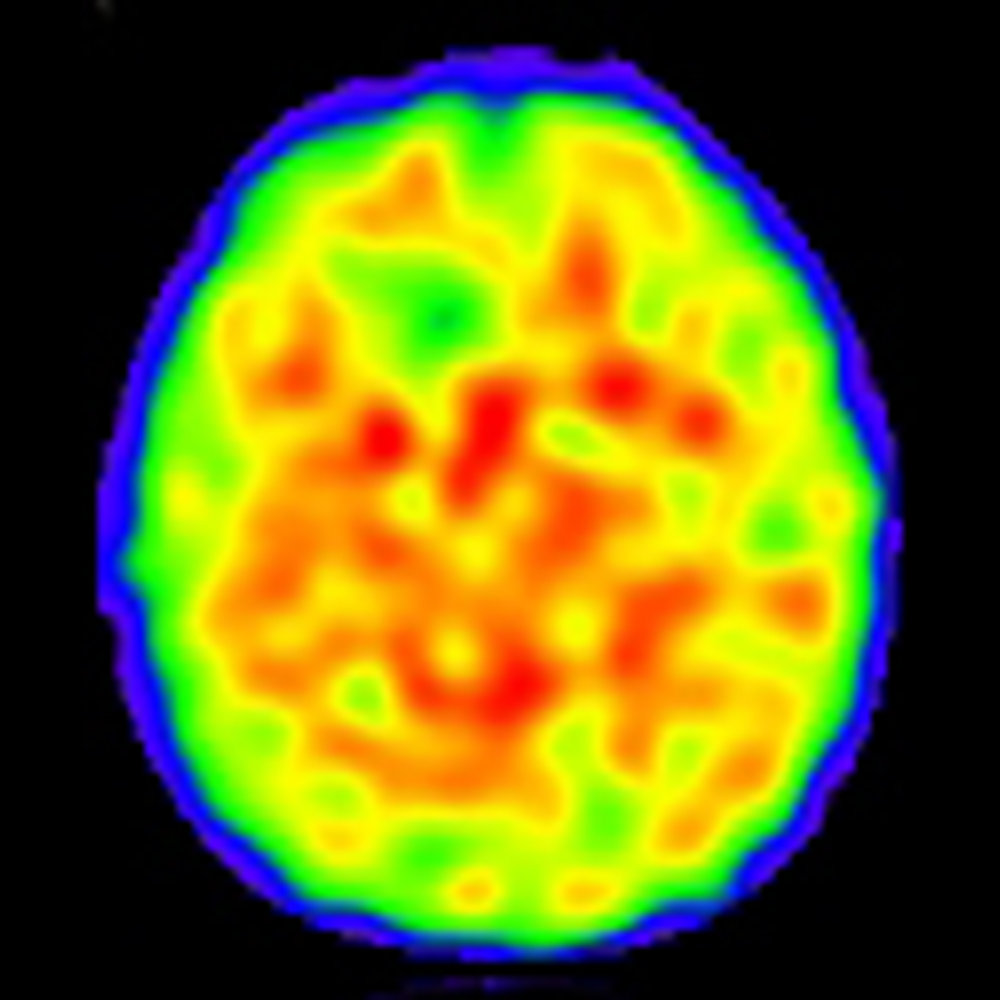

Nuclear Medicine Image Series
Specifications

Model: PH-34

Product Number: 41501-000

Height (approx.): 33 cm / 12.9 in

Materials:

Head container: acrylic resin
Artificial skull: epoxy resin
