CT Phantom Ring Extension - Gammex 464-Ring
A simple inexpensive method of adding diagnostic function to your CT Quality Testing Program

Users of the Gammex 464 CT phantom frequently want a better indication of the scanner's performance with a phantom that more accurately mimics a torso. The optional Gammex 464-Ring torso adapter permits the use of the Gammex 464 Accreditation in this type of application.

The 464 phantom can easily be inserted into the 464-Ring adapter to permit quick imaging in these situations. Users gain the advantage of being able to check the Quality Assurance on 16 different parameters with an anthropomorphic testing phantom in additional to other QA applications they may be required to perform, thus saving money that would otherwise be required for purchase of an entirely new phantom.

The Torso adapter is not a requirement for use in any Quality Assurance testing program.

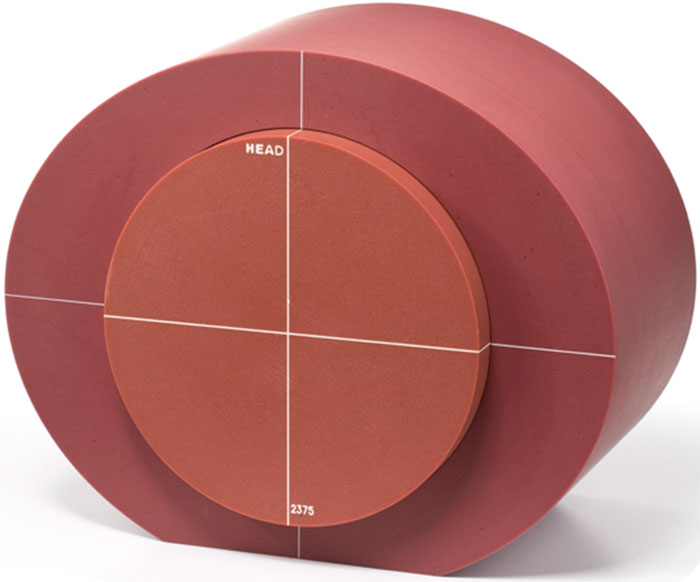

The 464 CT Phantom in the 464-Ring ready for scanning
The 464 CT Phantom in the 464-Ring ready for scanning

The 464 CT Phantom being insterted into the 464-Ring
The 464 CT Phantom being insterted into the 464-Ring


Benefits Features Certification and Warranty
Specifications
Ring Adapter Material Solid Water®
Dimensions
Width: 13 in
Height 10.4 in
Depth: 6.4 in
Weight: 13.5 lb
