Image-Guided Abdominal Biopsy Phantom CIRS 071B
CT / ULTRASOUND / MRI IMAGE FUSION • LIVE SCANNING • BIOPSY TRAINING

Visualize Biopsy Insertions With Minimal Needle Tracking

The Model 071B, Image-Guided Abdominal Biopsy Phantom is a simplified abdominal phantom suitable for training and demonstrating image-guided needle biopsy navigation tools or procedures that require a constant visual reference for needle placement. Because it is constructed of a self-healing formulation of Zerdine, the phantom allows multiple biopsy insertions with minimal needle tracking.

The phantom contains 12 lesions, 5-12 mm in diameter, positioned in groups of three in consistent locations within the phantom. It also includes simulated spine and ribs, and an "H" marker within the spine to assist in determining the head side within a CT image.

The lesions and spine are visible under ultrasound, CT and MRI. The solid polymer gel background is anechoic and will not leak when punctured.*

The phantom includes a foam lined hard carry case. For users interested in image fusion studies, the phantom can Image-Guided Abdominal Biopsy Phantom be purchased as a kit to include a serial-number specific CT DICOM Data set for reference. CIRS can also offer value-added options and services such as phantom specific CMM, attachment of customer specific registration devices and inclusion of special point markers.

US Patent #5196343

Features

*NOTE: Some permanent tracking may be evident if debris and air bubbles are entrained in the gel during the biopsy procedure. To extend the lifetime of the phantom, the use of higher gauge needles that have been wetted and de-aired prior to insertion is recommended.

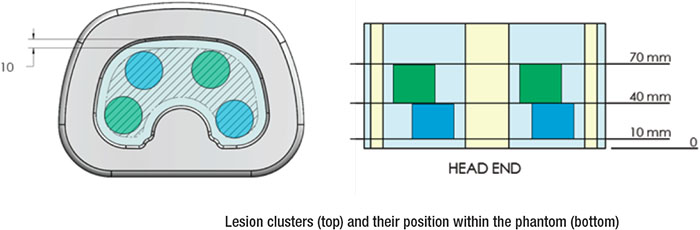

071B Lesion Clusters
071B Cluster Position in Phantom

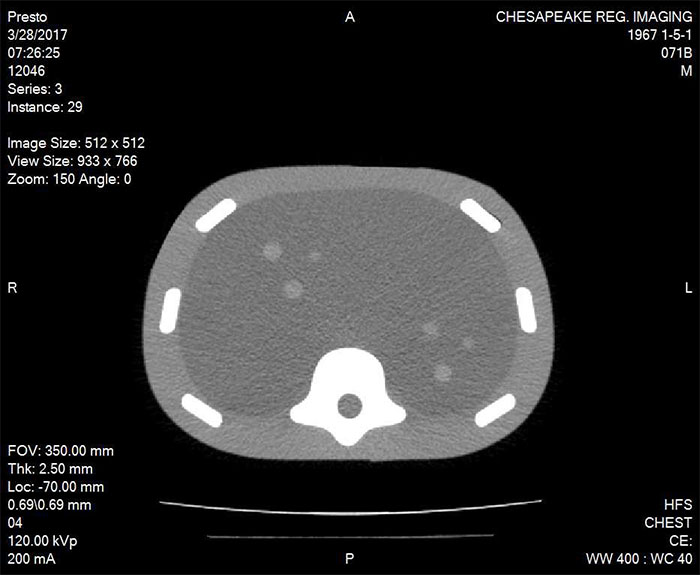

Image-Guided Abdominal Biopsy Phantom CIRS 071B CT Image
071B CT Image

Image-Guided Abdominal Biopsy Phantom CIRS 071B Ultrasound Image
071B Ultrasound Image

Specifications
Dimensions 28cm x 20cm x 12.5cm
(11" x 7.9" x 4.9")
Phantom Weight 12.1lb (5.5 kg)
Materials Background: Optically clear Zerdine®(1) gel, 1540 m/s (nominal)

Ribs & Vertebrae: Radio-opaque epoxy

Scan Surface: Z-skin™ elastomer

Masses: Zerdine, soft tissue

Muscle Layer: Hyperechoic Zerdine® gel (ensures phantom retains shape over time
Masses Material: Zerdine®, soft tissue
Diameter: 5 -12 mm
Qty: 12
Positioned in four groups of three
Other CT visible "H" marker to indicate head/foot orientation (made from lead - MRI compatible)
Model 071B includes Image-Guided Abdominal Biopsy Phantom, user guide and 6-month warranty.
