Multi-Modality Pelvic Phantom - CIRS 048A
Realistic Abdominal Imaging of the Male Bladder and Prostate
Ultrasound • MRI • CT

The Multi-Modality Male Pelvic Phantom was designed for realistic abdominal and transrectal ultrasound scanning of the bladder and prostate. The phantom includes pelvic bones, anechoic bladder, prostate, urethra, seminal vesicles and rectum enclosed in a pelvic-shaped plastic housing with a Z-Skin™ membrane. The self-healing qualities of Z-Skin make this design ideal for the demonstration of biopsies and other image-guided procedures.

The phantom is made from materials that can be imaged under ultrasound, MRI and CT making the phantom useful for applications that require multiple modalities such as radiation treatment planning. The phantom is provided with certified prostate and bladder volumes to enable assessment of volumetric measurement accuracy. Modifications are available such as permanently embedded brachytherapy "dummy" seeds or gold fiducial markers for demonstration of target visualization.

Each phantom is sold with a certificate of compliance.

Features
Multi-Modality Pelvic Phantom CIRS 048A Ultrasound/MRI/CT Ultrasound 1

Multi-Modality Pelvic Phantom CIRS 048A Ultrasound/MRI/CT Ultrasound 2

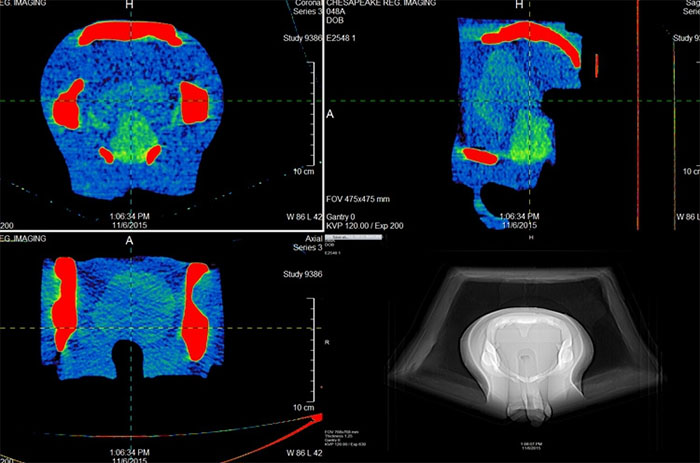

Multi-Modality Pelvic Phantom CIRS 048A Ultrasound/MRI/CT CT and SCOUT image

Specifications
Dimensions 15 cm W x 11 cm L x 11 cm H
Phantom Weight 16 lbs. (5.9 kg)
Background Zerdine®
Urethra Zerdine®
Ultrasound Contrast: Anechoic
Diameter: ¼"
Seminal Vesicles Zerdine®
Ultrasound Contrast: Isoechoic to prostate
Diameter: ¼"
Rectum Zerdine®
Ultrasound Contrast: Isoechoic to prostate
Diameter: 32mm
Pelvis Tissue Equivalent: Epoxy resin
Attenuation: Highly attenuating will cast shadows
Bladder Zerdine®
Ultrasound Contrast: Anechoic at 15 dB
Volume: 177cc
Prostate Zerdine®
Ultrasound Contrast: Hypoechoic
Volume: 45cc
Phantom Housing ABS shell: Thermoformed to pelvic shape
Membrane: Z-Skin
Model 048A Includes
Qty Component Description
1 Multi-Modality Pelvic Phantom
1 Certificate of Compliance
1 User Guide
- 6-Month Warranty
Model 048A-035 Kit Includes
Qty Component Description
1 Multi-Modality Pelvic Phantom
1 CT DICOM Data Set (Serial number specific,
1.5 mm slice thickness @ 120 kvp)
1 Certificate of Compliance
1 User Guide
- 6-Month Warranty
