Central Venous Catheter Ultrasound Training Model
PC-BPE007 - Hand Pump - Panckoo

The PC-BPE007 provides an adult upper-body model for ultrasound-guided and landmark-based central venous access training. Its head is turned to the left to expose the right neck and upper chest for internal jugular and subclavian access practice.

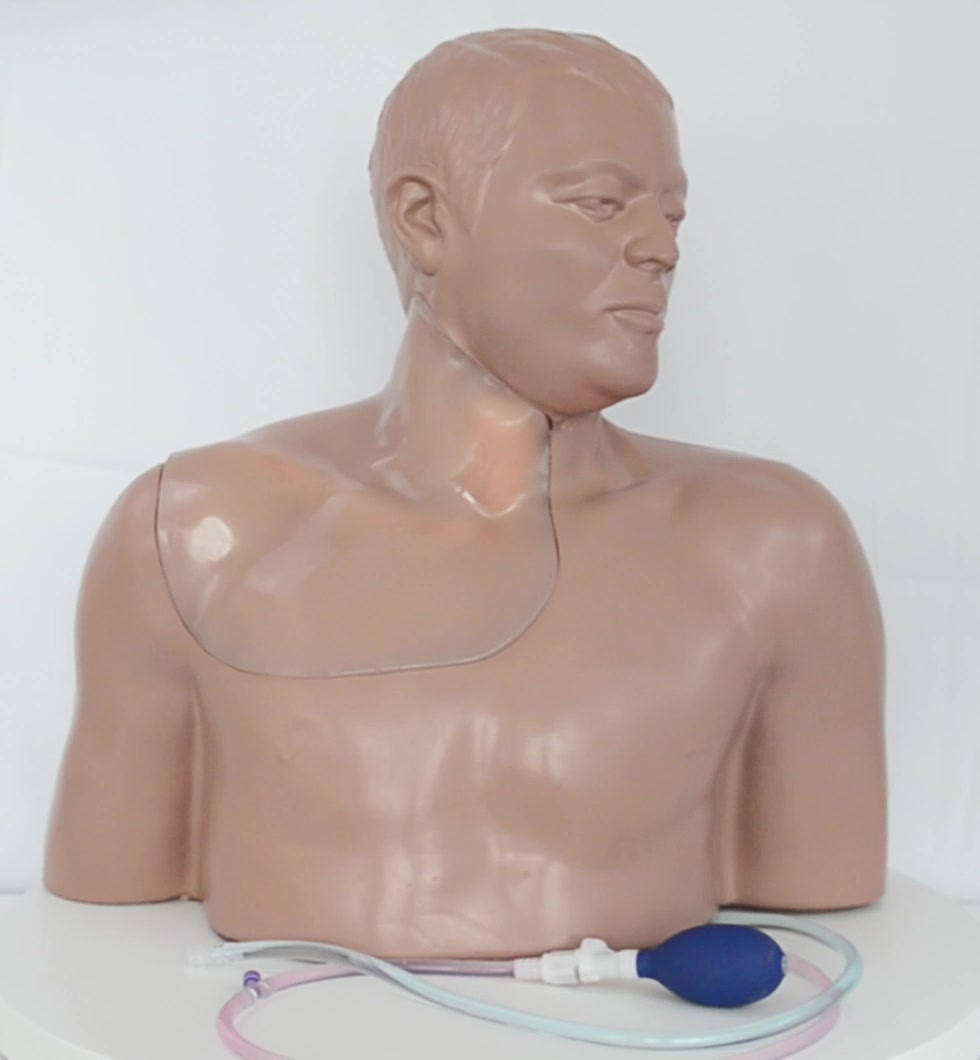

Adult upper-body CVC training model with its head turned left and a hand-operated pump

Central Venous Catheter Ultrasound Trainer - PC-BPE007

Click any product photo to enlarge it.

Ultrasound-Guided and Landmark-Based Practice

Practice ultrasound scanning, vessel identification, needle insertion, guidewire passage and central catheter placement.
Simulated neck and upper-chest anatomy includes the right internal jugular, brachiocephalic, subclavian and axillary veins, together with carotid, subclavian and axillary arteries.
Palpable landmarks include the trachea, clavicle, manubrium and sternocleidomastoid muscle.
A hand-operated pump produces simulated arterial pulsation.
Red arterial and blue venous simulated blood provide visible aspiration feedback.
The refillable fluid system supports repeated training sessions.

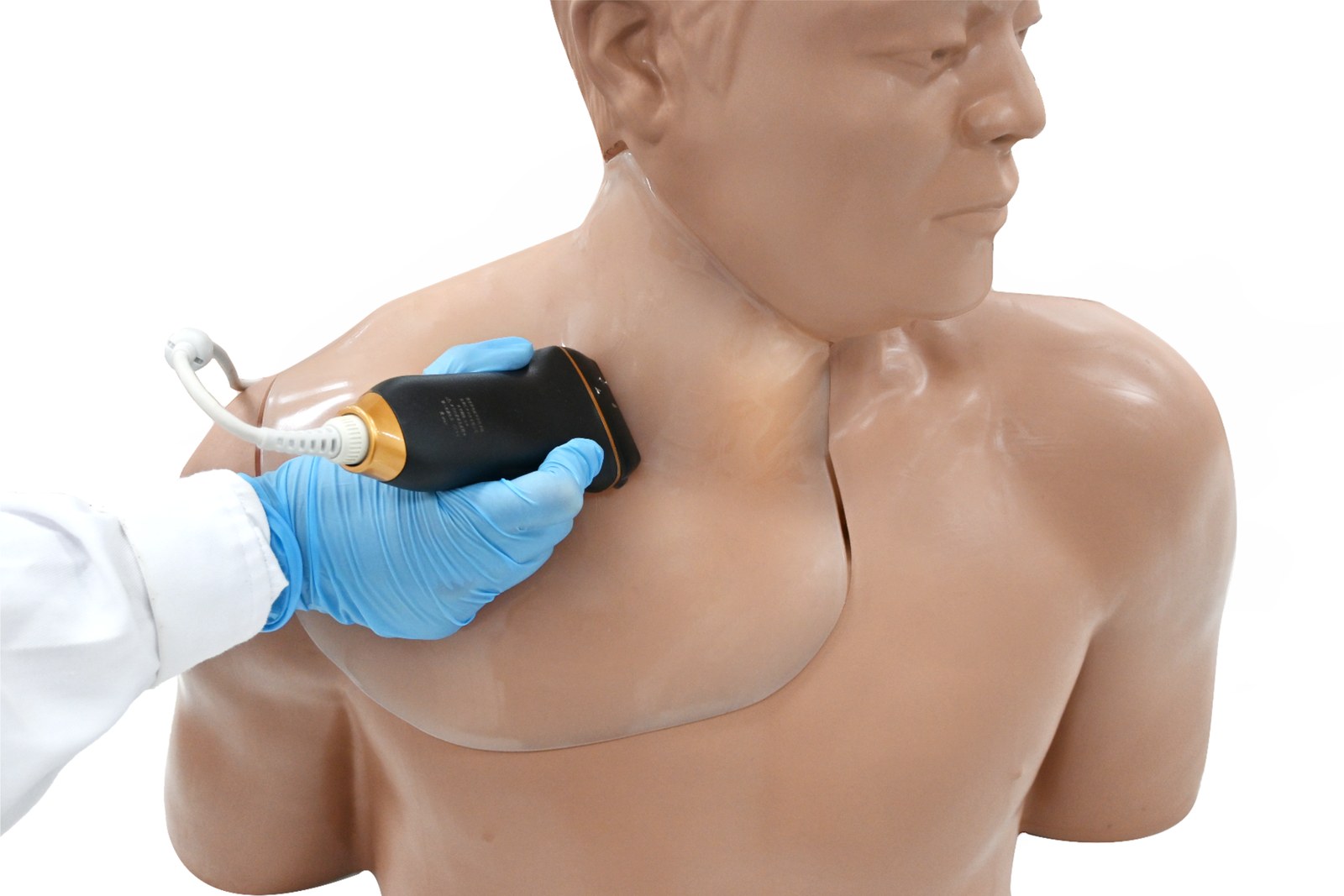

Ultrasound probe positioned on the PC-BPE007 neck and upper chest

Ultrasound scanning practice

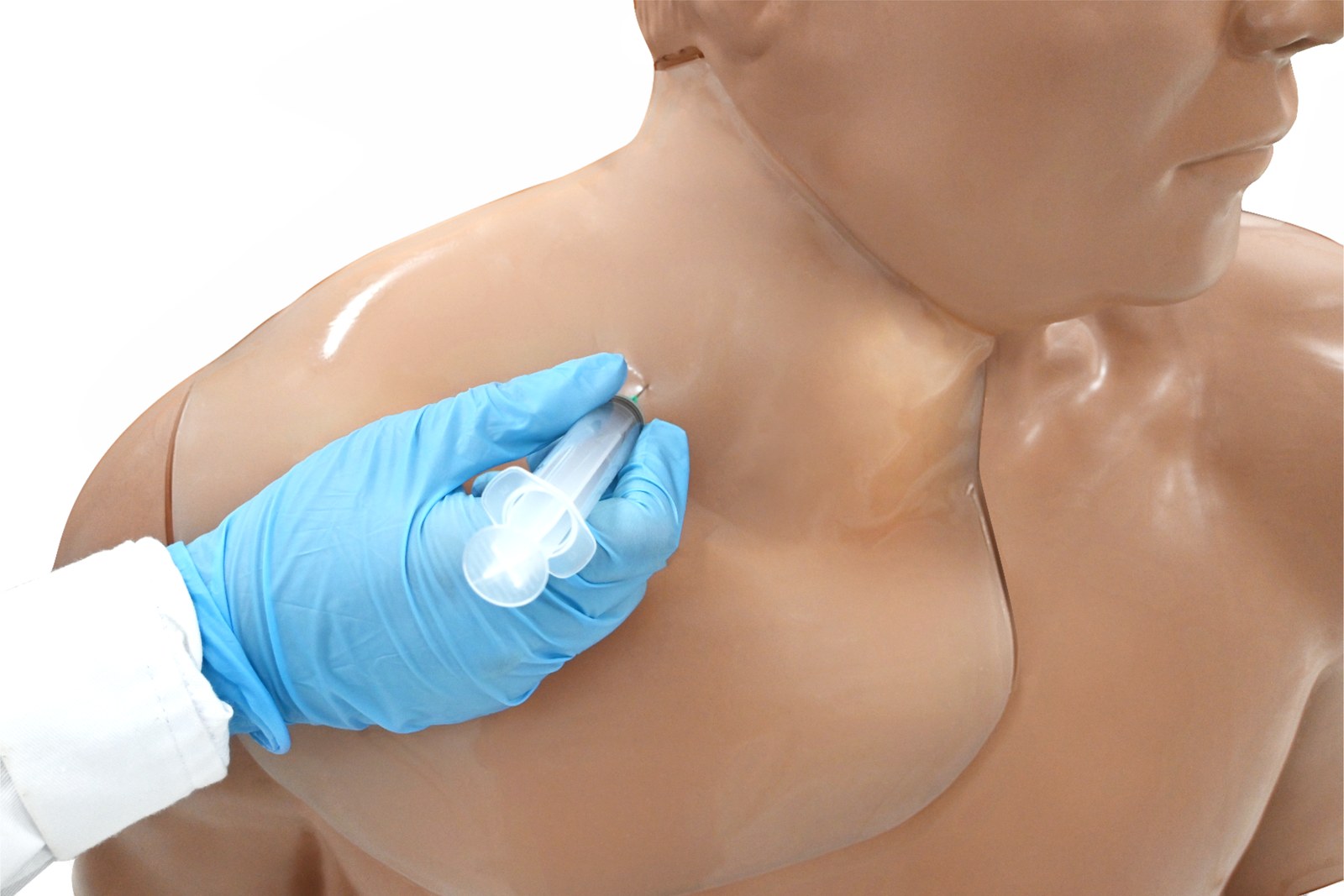

Needle and syringe used at a central venous access site on the PC-BPE007 model

Needle insertion practice

Product Details

Model	PC-BPE007
Manufacturer	Panckoo
Model format	Adult upper body with head turned left
Applications	Ultrasound-guided and landmark-based central venous catheter training
Training sites	Internal jugular and subclavian access
Feedback	Hand-pump arterial pulsation and red/blue simulated blood return
Included	Training model, red and blue simulated blood, and instructions

Example Ultrasound Views

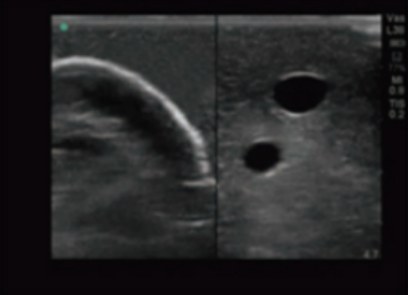

Supplier example 1 of ultrasound imaging with the PC-BPE007 CVC trainer

Ultrasound example 1

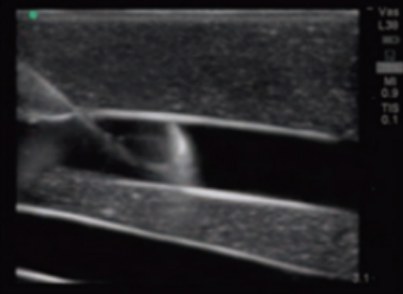

Supplier example 2 of ultrasound imaging with the PC-BPE007 CVC trainer

Ultrasound example 2

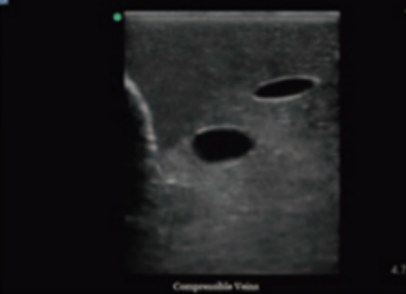

Supplier example 3 of ultrasound imaging with the PC-BPE007 CVC trainer

Ultrasound example 3

Demonstration and Setup Videos

PC-BPE007 central venous access demonstration

Watch the PC-BPE007 fluid-refill tutorial

PC-BPE007 fluid-refill tutorial

Care

Clean the model with mild soap and water, then pat it dry. Store it at room temperature without placing other objects on the simulated tissue. Use the supplied instructions for fluid-system preparation and model care.

For ordering information, request a quote from Supertech or call (800) 654-1054. Please specify PC-BPE007.
