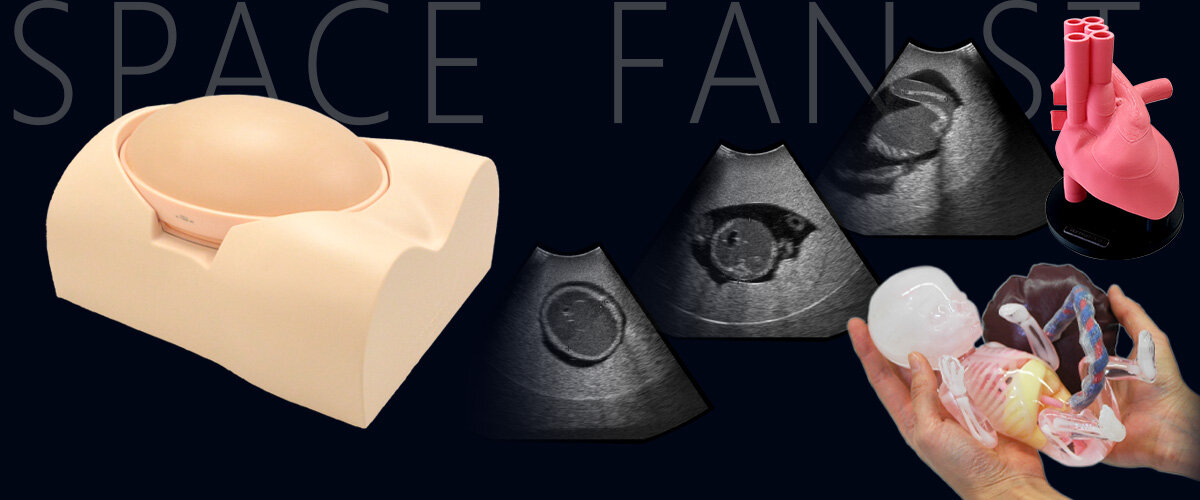

Fetal Ultrasound Examination Phantom "SPACE FAN-ST Heart" US-7B
Upgraded for fetal echocardiography and second-trimester screening
The updated SPACE FAN-ST Heart provides hands-on training for routine second-trimester ultrasound screening and fetal echocardiography. The phantom reproduces a 23-week male fetus, approximately 26 cm (10.24 in.) long, with detailed anatomy in a simulated uterus.
The oval-shaped phantom abdomen can be placed in four different positions to vary fetal presentation and orientation. A life-size fetus demonstration model and a three-times-enlarged fetal heart model support visual and three-dimensional understanding.
New in US-7B:- Detailed cardiac anatomy for fetal echocardiography training
- Assessment of fetal heart size, cardiac axis, and fetal heart vessels
- Measurement and calculation of TCD and CTAR

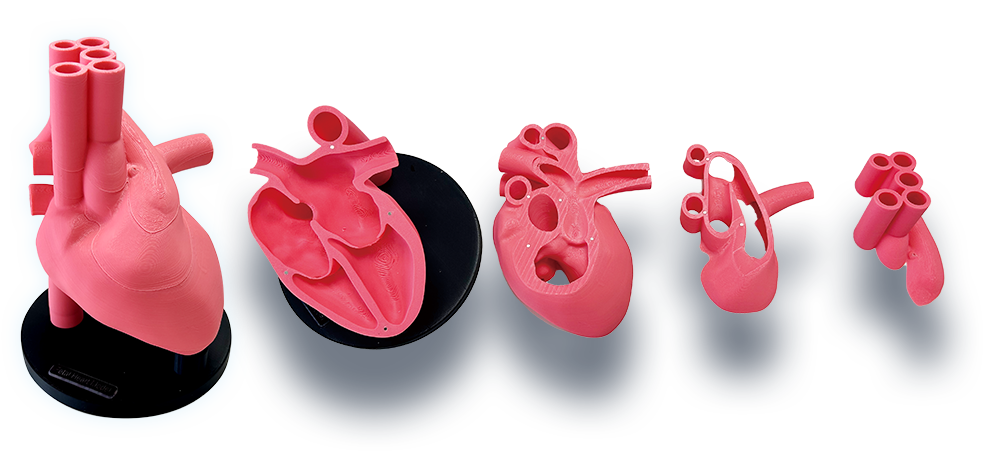

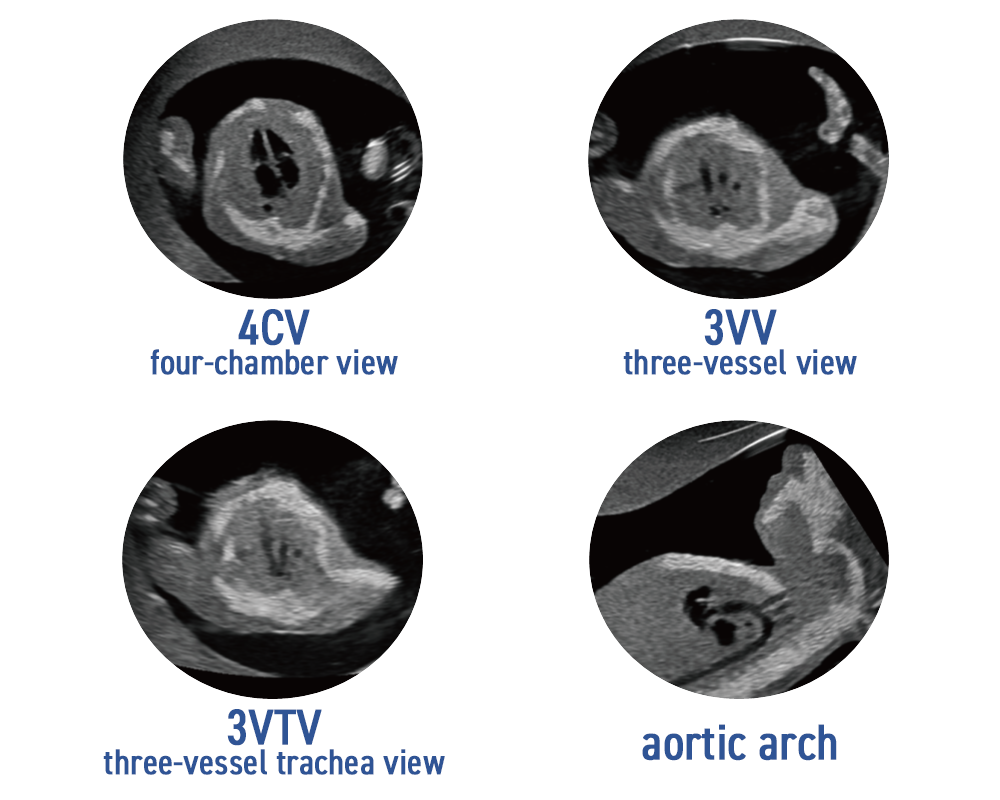

- Three-times-enlarged fetal heart model that separates into five pieces and demonstrates the four-chamber view (4CV), three-vessel view (3VV), and three-vessel trachea view (3VTV)
Training Skills:
- Fetal size assessment: BPD, AD, AC, and FL
- Estimation of fetal weight and assessment of growth
- Measurement of amniotic fluid volume using the Maximum Vertical Pocket method
- Determination of cephalic or breech presentation
- Assessment of the skull and brain, spine and limbs, cardiac chambers, great vessels, lungs, abdominal organs, and vasculature
- Assessment of the umbilical cord, cord vessels, cord-placenta connection, and placental position
- Determination of fetal sex; the phantom represents a male fetus
Anatomy:
- Uterus: amniotic fluid, placenta, and umbilical cord
- Fetus: skeletal structure; brain with septum lucidum, lateral ventricles, and cerebellum; lungs; spleen; bladder; stomach; liver; kidneys; aorta; umbilical vein; umbilical artery; and external genitalia
- Detailed fetal heart: aortic arch, trachea, ascending artery, superior vena cava, descending artery, atrial septum, ventricular septum, and foramen ovale
Set Includes:
- 1 mother body torso
- 1 SPACE FAN-ST Heart ultrasound pregnant uterus phantom
- 1 life-size fetus demonstration model
- 1 three-times-enlarged, five-piece fetal heart model
- 1 storage case
- 1 tutorial manual (DVD)
- Talcum powder
Specifications:
Model: US-7B
Product Code: 41905-100
Maternal Torso Size: Approx. 40 x 31 x 22 cm (15.7 x 12.2 x 8.7 in.)
Fetus Examination Part Size: Approx. 30 x 21 x 15 cm (11.8 x 8.3 x 5.9 in.)
Weight: Approx. 7.3 kg (16.1 lb)
Packing Weight: Approx. 17 kg (37.5 lb)
Materials: Soft resin and polyurethane elastomer; latex-free
Recommended Transducer: Convex
Cardiac pulsation and blood-flow dynamics are not reproduced. Ultrasound scanner is not included. Specifications are subject to change.
