Breast Elastography Ultrasound Phantom CIRS 059
The perfect demonstration tool for sonoelastography

It is important to understand that the Model 059 is a disposable product. Although the material can be punctured to demonstrate biopsy techniques, each mass can only withstand core biopsy until the lesion is destroyed.

The Model 059 accurately mimics the ultrasonic characteristics of tissues found in an average human breast. The size and shape of the phantom simulates that of an average patient in the supine position. Protected by a membrane, the phantom's Zerdine®1 simulates needle resistance.

The phantom contains several solid masses that appear slightly hypoechoic to the simulated breast tissue under normal ultrasound, but the lesions are at least two times stiffer than the background so they can be detected on elastography. Lesions range in size from 3 to 10 mm in diameter, are randomly positioned throughout the background, and can be biopsied 3 times.*

A special holding tray facilitates proper hand position during the training procedures.

Features: (1)US PATENT# 5196343

Breast Elastography Ultrasound Phantom CIRS 059 Ultrasound Image

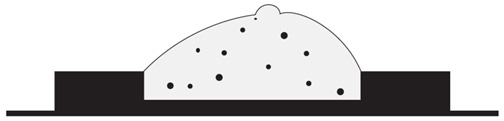

Breast Elastography Ultrasound Phantom CIRS 059 target layout diagram

Model 059 Specifications:
Phantom Size: 600 cc
Length: 15 cm
Width 12 cm
Height: 7 cm
Material Zerdine®
Targets Color Size Quantity Position
Dense Masses blue 2-10 mm 13 random
Background pink
