Multi-Purpose Multi-Tissue Ultrasound Phantom CIRS 040GSE
The New Standard For Ultrasound Quality Assurance
Exceeds ACR Accreditation Requirements
The CIRS Model 040GSE Multi-Purpose Multi-Tissue Ultrasound Phantom not only contains all the features of the original CIRS Model 040, but also includes gray scale targets, anechoic stepped masses and elasticity targets. The phantom is designed to meet the ultrasound QA challenges of today and tomorrow.
The unique dual attenuation of the background gel allows for evaluation of transducers that range from 2 MHz - 15 MHz. A removable water well and endocavity cover extends the use of the phantom by allowing evaluation of all transducer configurations: linear, curvilinear and intercavity.
CIRS ultrasound QA phantoms come standard with a robust housing, rugged carry case, 48-month warranty, and user guide.
US PATENT# 5196343

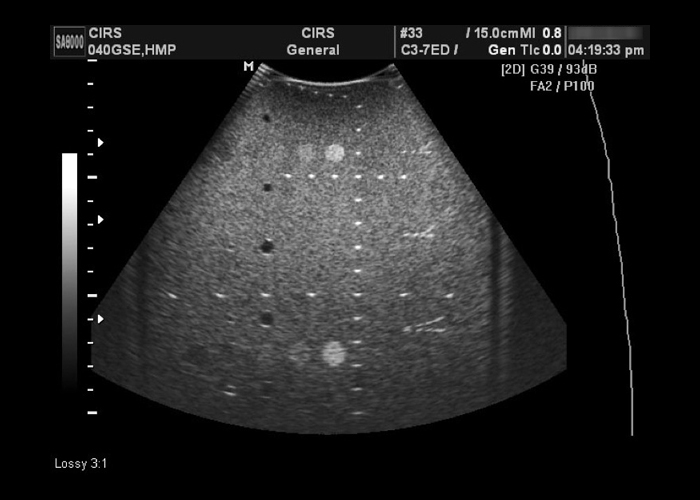

Performance Measurements- Dead Zone
- Horizontal Distance
- Vertical Distance
- Depth of Penetration
- Image Uniformity
- Axial Resolution
- Lateral Resolution
- Anechoic Mass Resolution
- Gray Scale Contrast Resolution
- Elasticity Image Evaluation
Phantom comes with detachable scanning wells to accommodate large sector
probes and small endocavity probes. It is packaged in a foam lined carry case.
| Specifications | |
| Background Material |
Material: Zerdine®1 Freezing Point: 0® C Melting Point: Above 100® C Attenuation: 0.5 dB/cm-MHz ± 0.05 dB/cm-MHz & 0.7 dB/cm-MHz ± 0.05 dB/cm-MHz Speed of Sound: 1540 m/s ± 10 m/s |
| Scanning Well | 1cm deep |
| Scanning Membrane | Saran-based laminate |
| Wire Targets | Material: Nylon monofilament |
| Near Field Group |
Number of Targets: 5 Wire Diameter: 100 microns Depth range: 1 to 5 mm Distance between Targets: 1 mm |
| Vertical Distance Group |
Number of Targets: 16 Wire Diameter: 100 microns Depth Range: 1 to 16 cm Spacing: 10 mm |
| Horizontal Distance Groups |
Number of Groups: 2 Wire Diameter: 100 microns Depths: 4 and 9 cm Number of Targets: 4 & 7 respectively Spacing: 10 & 20 mm respectively |
| Axial-Lateral Resolution Groups |
Number of Groups: 2 Wire Diameter: 80 microns Depths: 3 & 6.5 cm Axial Separation: 4, 3, 2, 1, 0.5 & 0.25 mm Lateral Separation: 4, 3, 2, 1, 0.5 & 0.25 mm Number of Groups: 1 Wire Diameter: 80 microns Depths: 10.5 cm Axial Separation: 5, 4, 3, 2, & 1 mm Lateral Separation: 5, 4, 3, 2, & 1 mm |
| Anechoic Stepped Cylinders |
Number of Targets: 12 Diameter of Targets: 1.3, 2.0, 3.0, 4.5, 6.7 & 10.0 mm Depth of Targets: 1.5, 4.5, 7.0, 10.0, 13.0, 16.0 cm Attenuation: 0.5 dB/cm-MHz Contrast: Anechoic, Cyst-like |
| Gray Scale Targets |
Attenuation: 0.5 dB/cm-MHz Number of Groups: 2 6 Targets: 8mm Ø at 3 cm depth Contrast: -9, -6, -3, +3, +6 & > +15 dB 5 Targets: 10mm Ø at 11.5 cm depth Contrast: -6, -3, +3, +6 & > +15 dB |
| Elasticity Targets |
Attenuation: 0.5 dB/cm-MHz Number of Groups: 2 Number of Targets Per Group: 3 - 6 mm Ø at 1.5 cm Depth - 8 mm Ø at 5 cm Depth Elasticity: 10, 40 & 60 kPa |
| Model 040GSE Includes |
|
