Pro-US Uniform

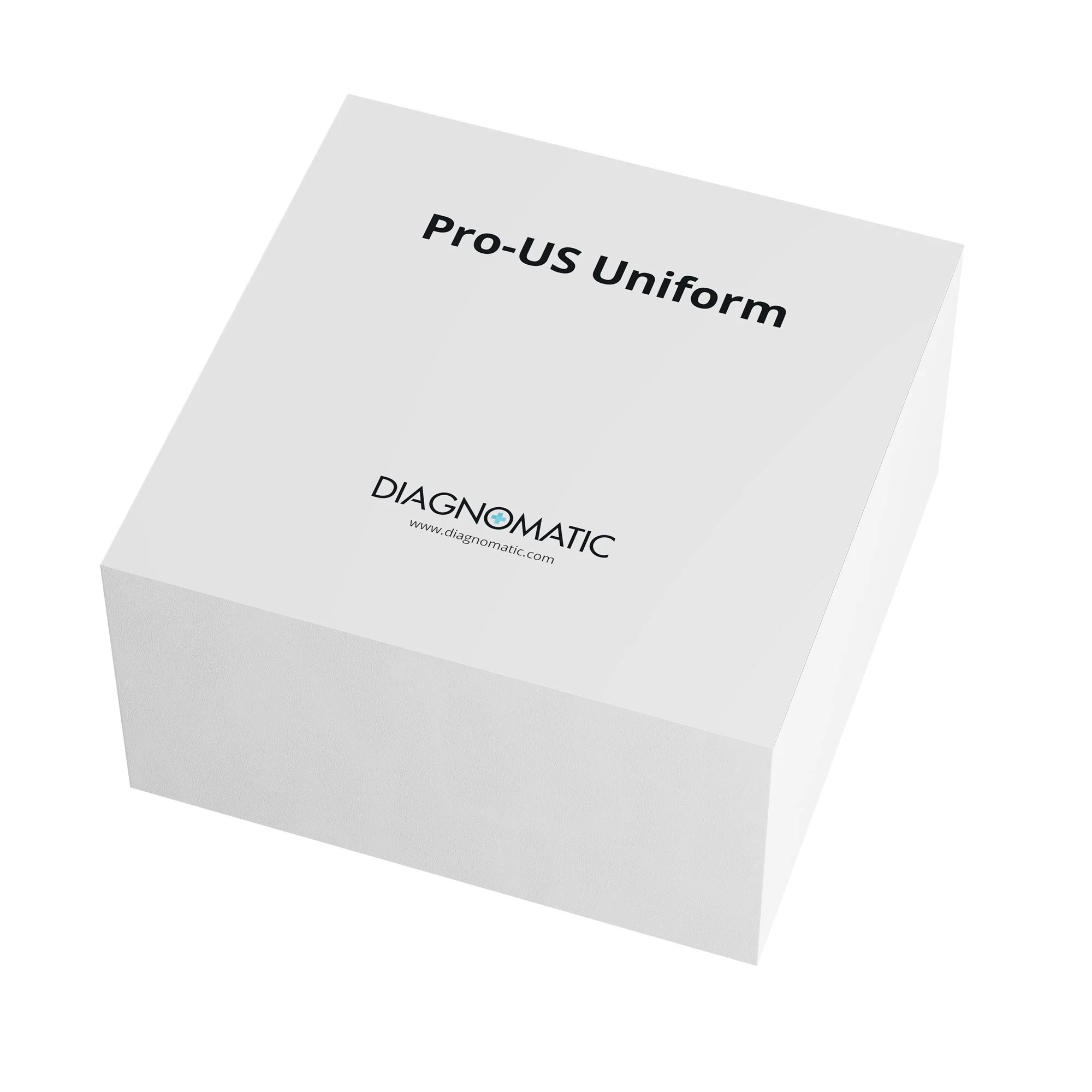

Ultrasound Uniformity Phantom - Diagnomatic by Pro-Project - 11-102

Pro-US Uniform from Diagnomatic by Pro-Project uses tissue-mimicking material for routine ultrasound uniformity and technical quality assurance checks.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• overall dimensions: 110 x 110 x 60 mm
• top and bottom cover made of PVC
• test insert dimensions: 110 x 110 x 50 mm
• the test insert is a homogeneous block of tissue-mimicking material based on polyvinyl alcohol (PVA), a synthetic polymer
• carrying case

Features and Test References

• complies with:
  – Real-time B-mode US quality control test procedures: Report of AAPM Task Group No. 1
  – Quality assurance of U.S.-guided external beam radiotherapy for prostate cancer: Report of AAPM Task Group 154
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
