QUART ZTB - 13201
Centering Tube for X-Ray Axis Alignment

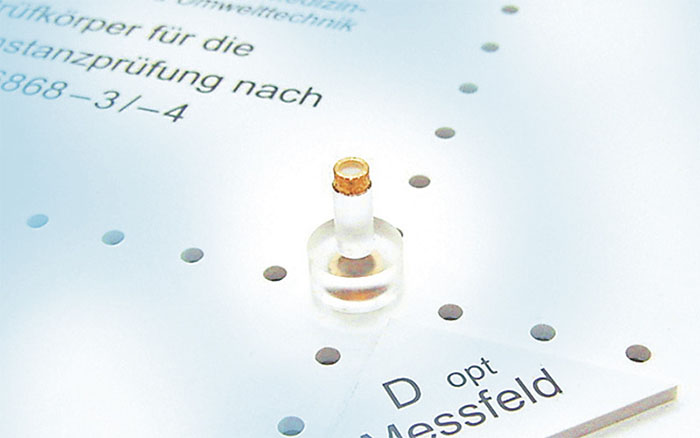

The QUART ZTB is a compact centering tube used to check the alignment of the central X-ray beam axis. Position it at the center marking of a compatible test phantom.
The ZTB checks X-ray axis alignment, not collimation. Collimation concerns the alignment of the field of view; these are separate checks.
Technical Specifications
- Double-ring arrangement for evaluating axis alignment.
- Four defined positions indicate alignment angles from 0–6°.
- Compact 17 mm format.
Compatible QUART Phantoms
- SP_digi - 12203.
- SP_dl - 12204, including the SP_dl used with its 12205 extension frame.
- RFP150 - 12204L.
For the SP_dl/frame combination, the centering tube is placed on the SP_dl phantom's center marker. Phantoms and extension frames are ordered separately.
Models and Ordering
| Item Number | Item Name | Description |
|---|---|---|
| 13201 | QUART ZTB | Centering tube for X-ray axis alignment. Phantom ordered separately. |
