QUART SP_digi - 12203
DR/CR R+F QA Test Phantom
The QUART SP_digi phantom is designed to be used for QA/QC in radiography and fluoroscopy at x-ray equipment featuring digital storage screen (CR) or CCD image detectors (DR).
The phantom does not feature planar grid structures, making image artefacts easier to identify.
The manufacturer references the former DIN 6868-13 and DIN 6868-58, together with IEC 61223-3-1 and IEC 61223-2-11.

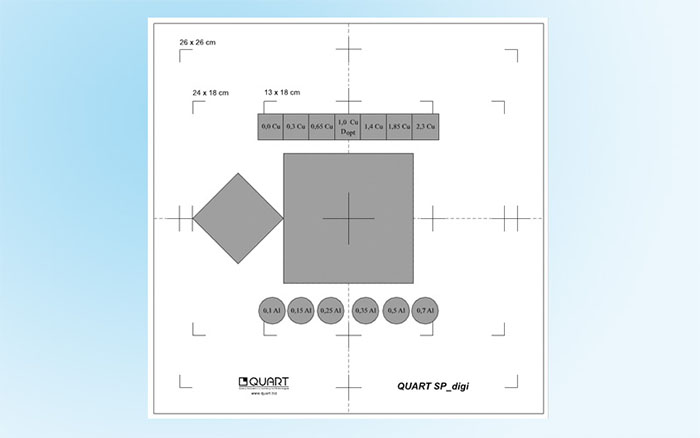

Technical Specifications- PHANTOM FORMAT: 330 × 330 mm (33 × 33 cm)
- DESIGN APPROACH: Simplified design for precise artefact detection
- DYNAMIC STEP WEDGE: 7 Steps; thickness 0 – 2.3 mm
- SIGNAL NORMALISATION: Homogeneous area in the phantom center, 10 x 10 cm
- HIGH-CONTRAST RESOLUTION: Line Pair Bar Pattern (Type 38 / Pb 0.05 mm / 45°)
- LOW-CONTRAST RESOLUTION: 6 Test objects (Aluminium discs; 0.1 – 0.7 mm)
- X-RAY FIELD ALIGNMENT: Field size markings for all major fields-of-view
- CENTER: cross-marker, also visible when QUART ZTB beam alignment tool is in use
- VERTICAL POSITIONING: optional rack-style phantom holder 12210 for wall-mounted units.
- Spatial Resolution
- Low-Contrast Resolution
- Radiation Field Alignment
- Image Homogeneity
- Signal Normalisation
- Artefacts, Image Flaws, etc.
- Dose Indicator
- QUART SPdigi Test Phantom
- Manual
Models and Ordering
| Item Number | Item Name | Description |
|---|---|---|
| 12203 | QUART SP_digi | CR/DR radiography and fluoroscopy QA/QC test phantom, with a 33 × 33 cm format. |
Optional Accessories
| Item Number | Item Name | Description |
|---|---|---|
| 12210 | QUART Phantom Holder / Suspension for Chest X-Ray![]() Application example; phantom ordered separately. | Rack-style phantom suspension system for wall-mounted chest X-ray units. Used with QUART SP_digi, SP_dl and RFP150 phantoms. The holder and phantom are separate items. |
| 13201 | QUART ZTB Centering Tube![]() | Centering tube for X-ray axis alignment. Placed at the phantom center marker; it checks the central beam axis rather than collimation. Compatible with QUART SP_digi, SP_dl and RFP150. |
