QUART SP_dl Extension - 12205

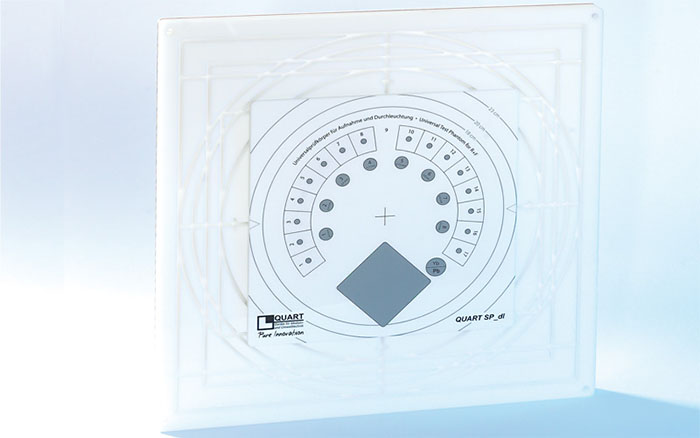

Large-Field Extension for QUART SP_dl Test Phantom
Extension to provide a homogeneous surface and field markings for imaging formats up to 33 cm x 33 cm. To be used in conjunction with QUART SP_dl image quality test phantom.
The extension feature radiopaque markings for a variety of shapes and sizes of x-ray fields.
Technical Specifications- INTERNAL FILTRATION: 1.5 mm standard compliant copper filtration
- 17 mm PMMA as tissue simulation
- X-RAY FIELD ALIGNMENT: Field size markings
- VERTICAL POSITIONING: Wire mount system available for tests of wall-mounted units
- SIZE: 330 x 330 x 18.5 mm (L x W x H)
- LARGE FIELDS: Extension to provide a homogeneous surface and field markings for formats up to 33 cm x 33 cm
| Models and ordering | ||
| Item Number | Name | Description |
| 12205 | QUART SP_dl Extension Frame |
Extension for the QUART SP_dl test phantom. To be used for large fields up to formats of 33x33 cm.
Applications: Digital R&F. |
| 12206 | Phantom Holder Chest Xray |
Phantom holder for wall mounted units (Chest X-ray).
Applications: Digital & Conventional R&F. |
| 12211 | SP digi & SP_dll Wire-Mount | Wire mount system to position SP_digi, SP_dl and SP_dl extension phantoms vertically, i.e. at wall-mount units. |
