Pro-NDT CR - Pro-Project
10-101 - Version with one Pro-NDT DuplexWireIQI
10-103 - Version with two Pro-NDT DuplexWireIQI
10-104 - Version with two Pro-NDT DuplexWireIQI D15

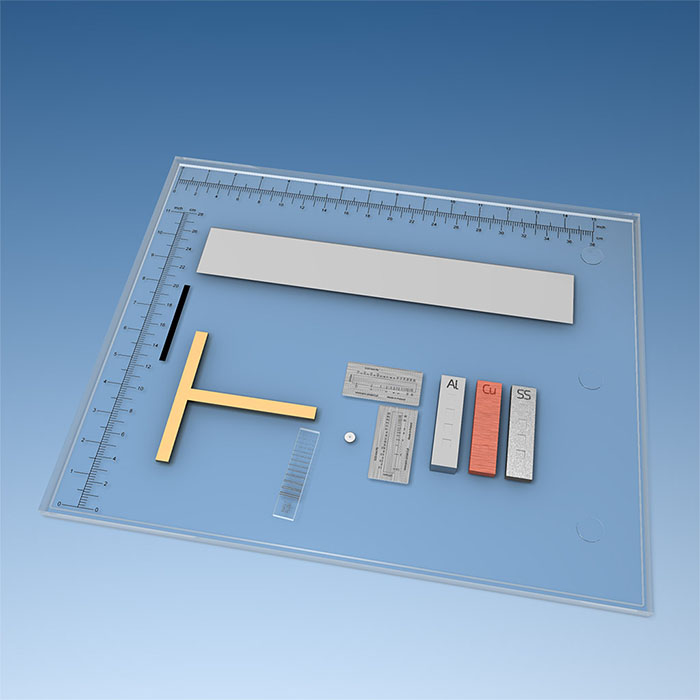

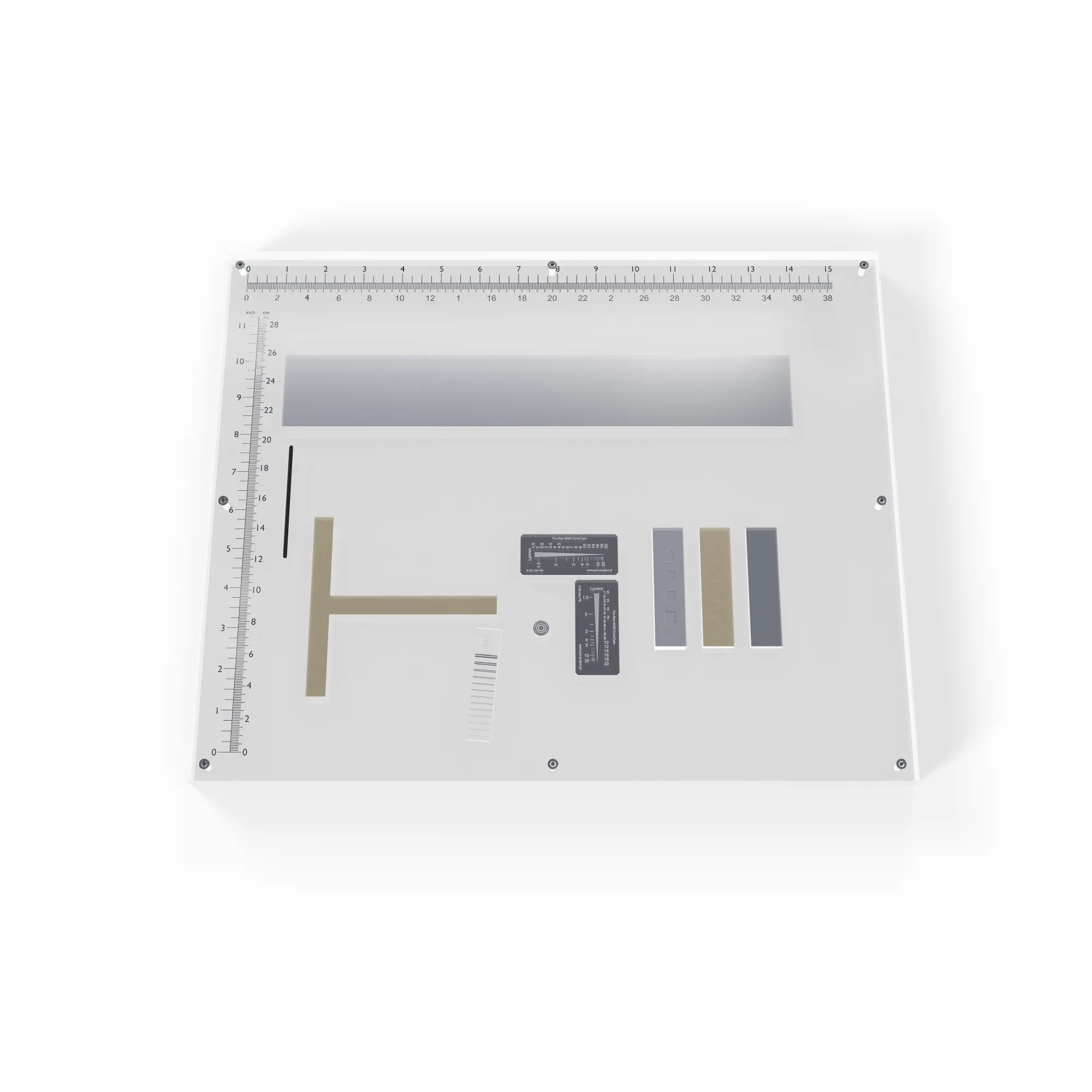

This Image Quality Indicator is used for testing all important parameters of CR scanner systems according to ASTM E 2445-05, ISO 16371-1 and EN 14784-1 standards. It provides means to measure: spatial resolution, unsharpness, contrast, MTF, laser beam jitter, scanner slipping and shading.
Technical data (can be modified to customer specifications):- Dimensions: 350 x 430 x 19 mm
- Made of PMMA (Lucite)
- T shaped brass target (laser beam jitter, MFT check, blooming / flare)
- Pro-NDT DuplexWireIQI test object (basic spatial resolution, unsharpness)
- BAM snail made of lead and low absorbent material (central beam alignment)
- Two converging line pairs resolution patterns (Pro-Res MAM ConeType)
- Three Ø19x0.3mm (EL, EC, ER) measuring points (shading correction)
- Cassette positioning locator
- Homogeneous 0.5mm Al strip (scanning slipping, shading)
- Two cm/inch rulers (linearity check)
- Three contrast sensitivity gauges made of Al, Cu and stainless steel with four holes of different depth
- Calibration / test certificate according to ASTM E 2445-05, EN 14784-1 and ISO 16371-1
- Complies with:
- ASTM E 2445-05
- ISO 16371-1
- EN 14784-1
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 10-101 | Version with one Pro-NDT DuplexWireIQI |
| 10-103 | Version with two Pro-NDT DuplexWireIQI |
| 10-104 | Version with two Pro-NDT DuplexWireIQI D15 |
