Pro-NDT DuplexWireIQI
Duplex-Wire Image Quality Indicator - Diagnomatic by Pro-Project - 10-201

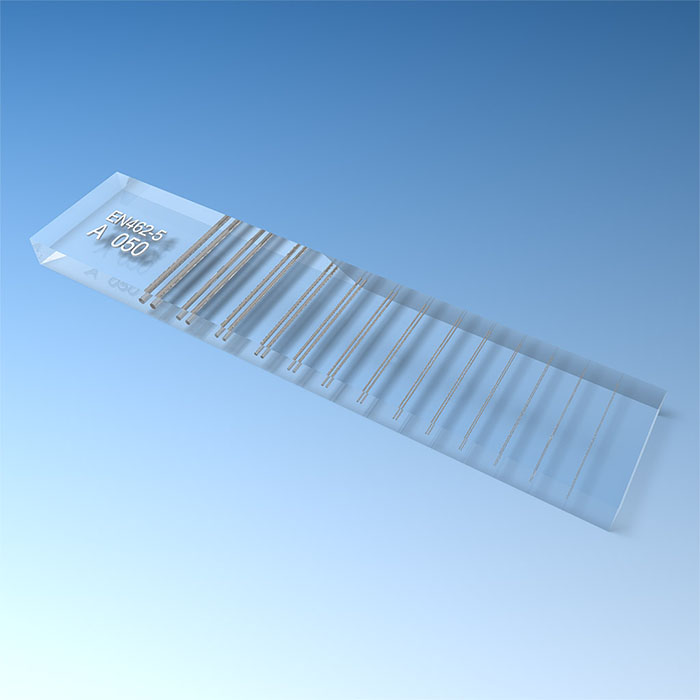

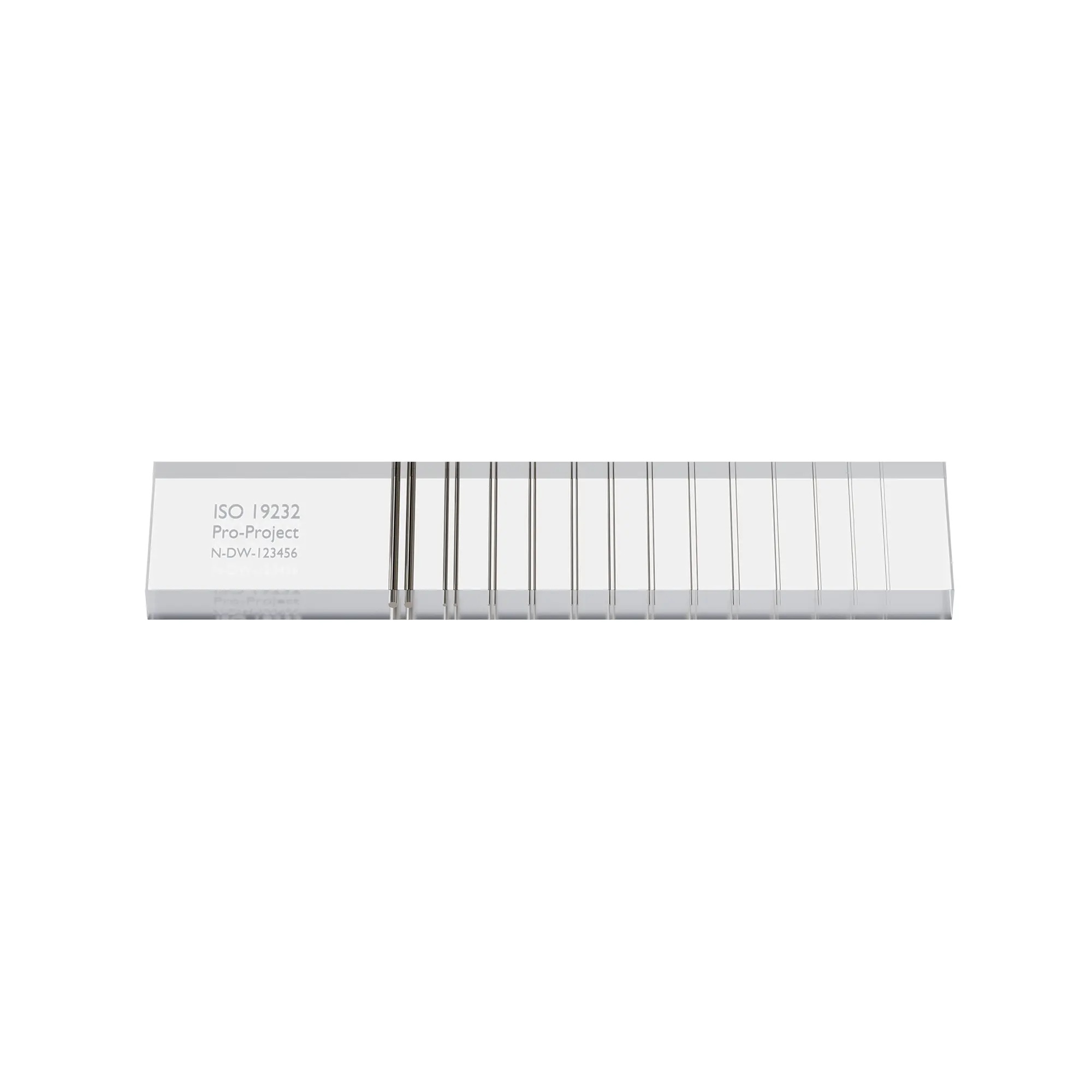

Pro-NDT DuplexWireIQI from Diagnomatic by Pro-Project uses paired wires to evaluate radiographic image unsharpness and basic spatial resolution.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 15 x 70 x 4 mm
• 13 groups of wire pairs (from 1D to 13D) embedded in PMMA
• groups 1D - 3D made of tungsten
• groups 4D - 13D made of platinum
• diameter of wires / spacing between wires ranges from 0.050 to 0.800 mm
• calibration / test certificate according to ASTM E 2002 and ISO 19232-5

Features and Test References

• complies with:
  - ISO 19232-5
  - EN 462-5
  - ASTM E2002-99 Duplex IQI
• CE marked (declaration of conformity according to ISO/IEC 17050-1)
• the manual provides guidelines for carrying out each test, results assessment and registration
