We offer a wide range of test patterns for two and three dimensional resolution evaluation. As we do not depend on other companies and each pattern is developed and manufactured in-house, we can prepare all combination of shapes, layouts, templates and materials for you. Our cutting-edge technology allows us to obtain unmatched precision and resolution range in many types of materials.

We present here only our standard test patterns.
If you need something else, please contact us.


Computed Tomography Resolution Patterns

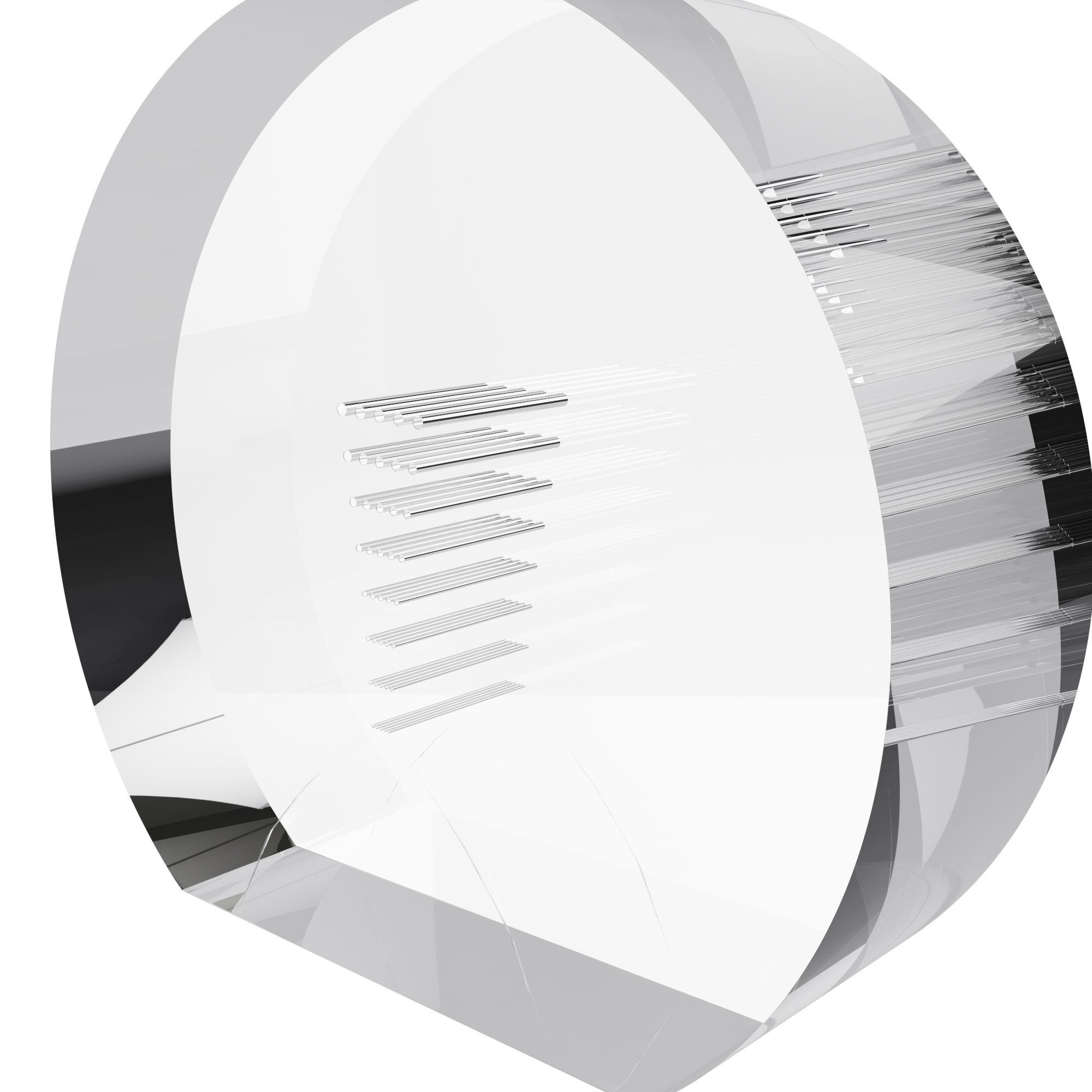

Pro-Res CT SandwichType

Aluminium bars
Different sheet sizes
Standard resolution range: 1.0 - 30.0 LP/cm
Pro-Res CT SandwichType

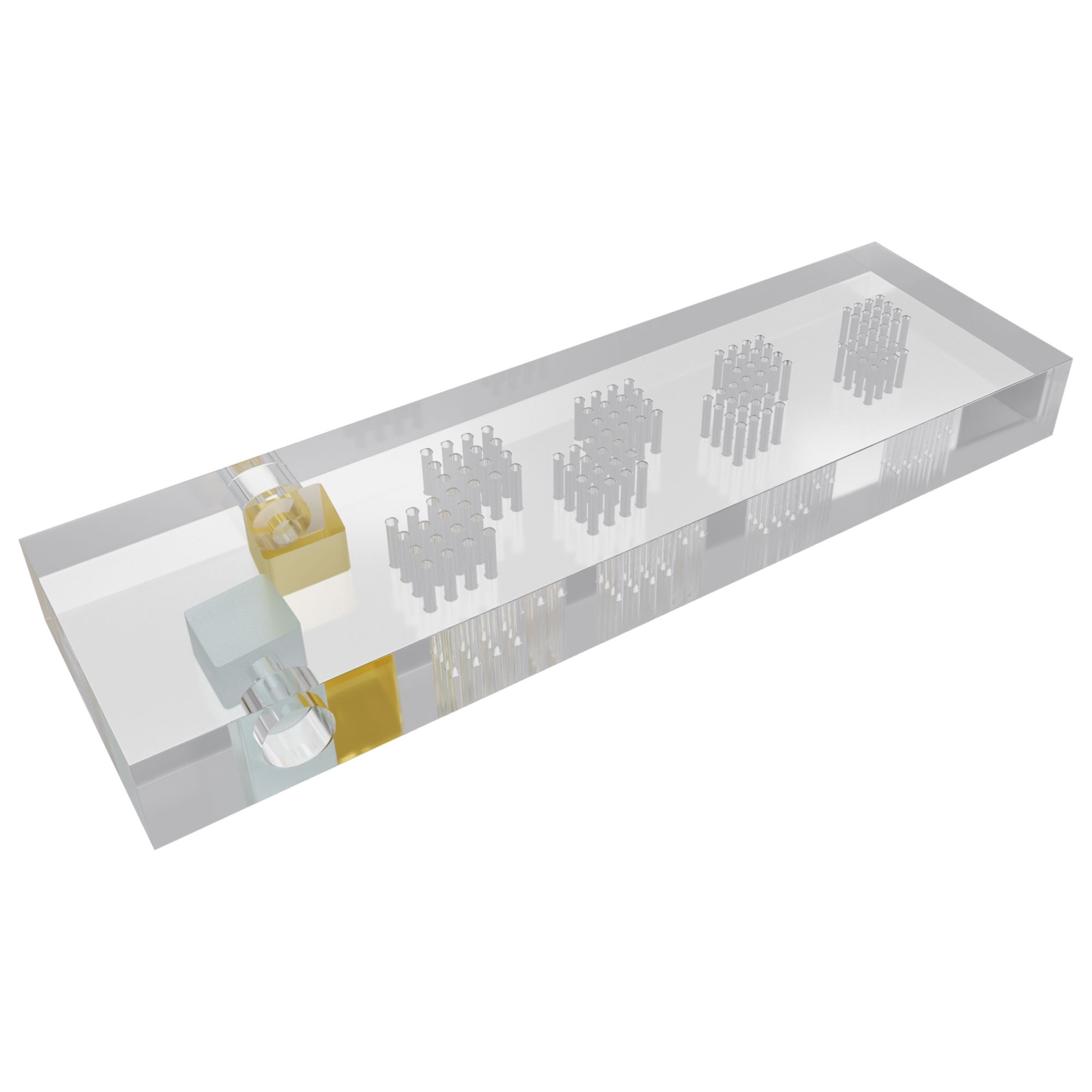

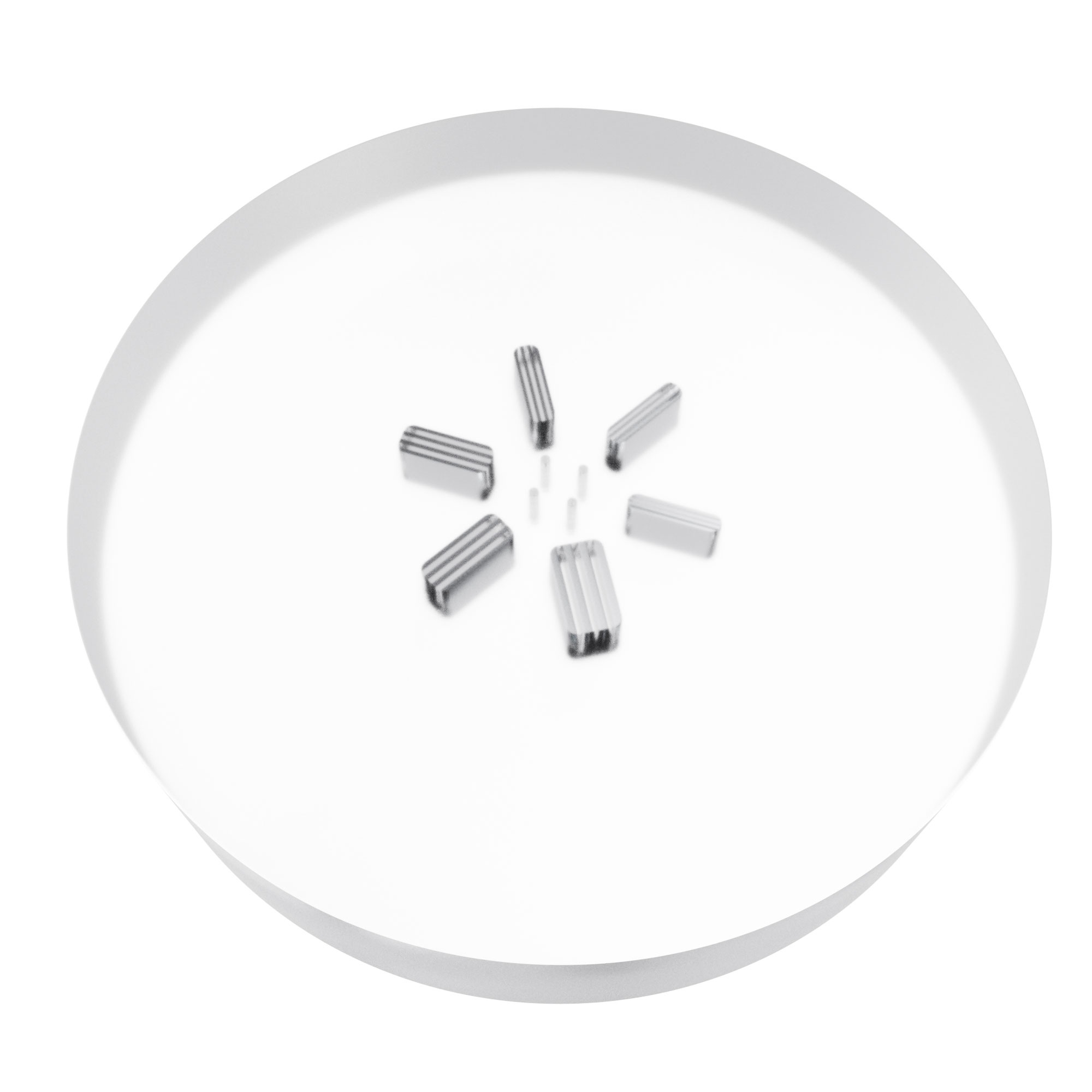

Pro-Res CT HolesType

Air thru holes
Different hole diameters
Standard diameters range: 0.4 - 1.75 mm
Pro-Res CT HolesType


Dental Resolution Patterns

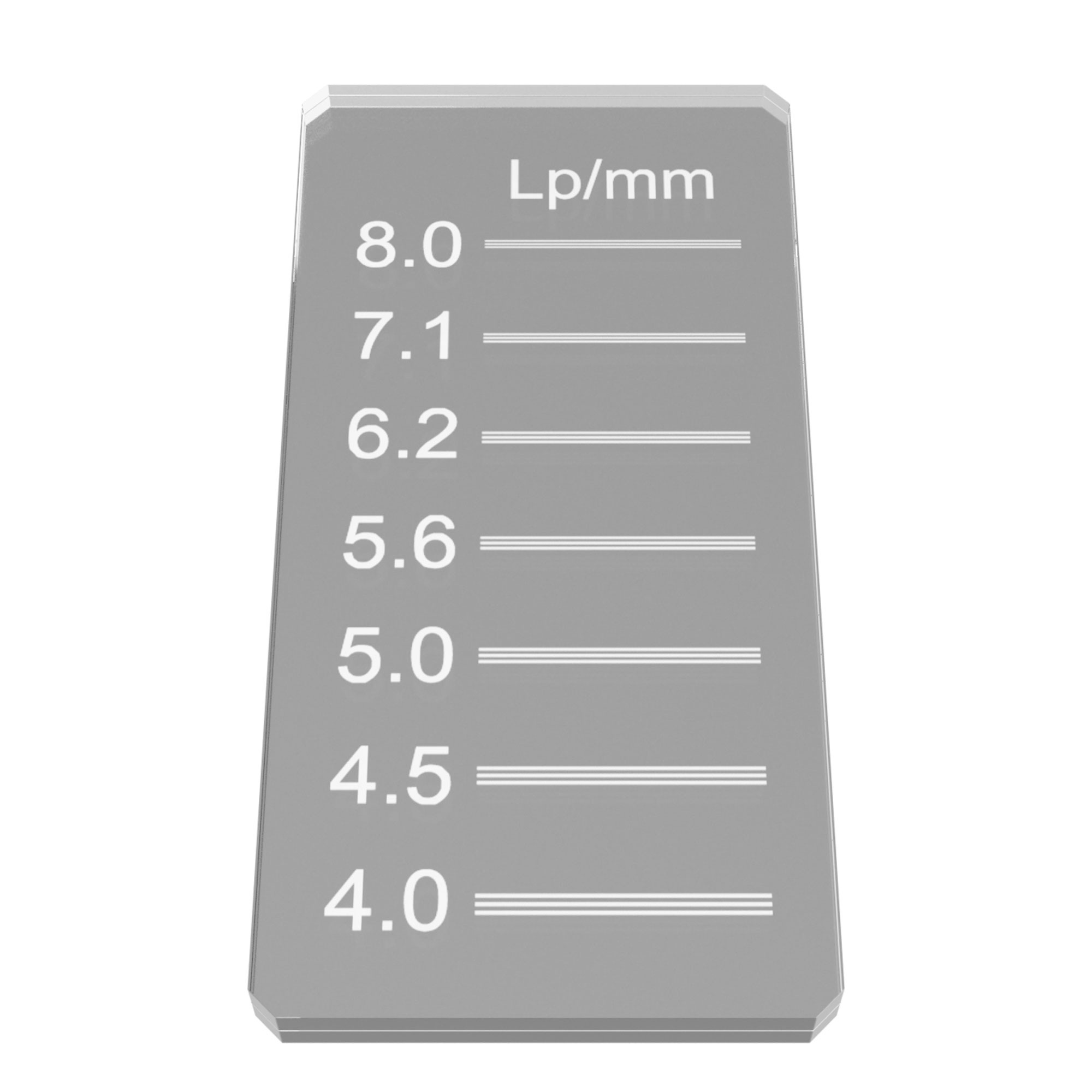

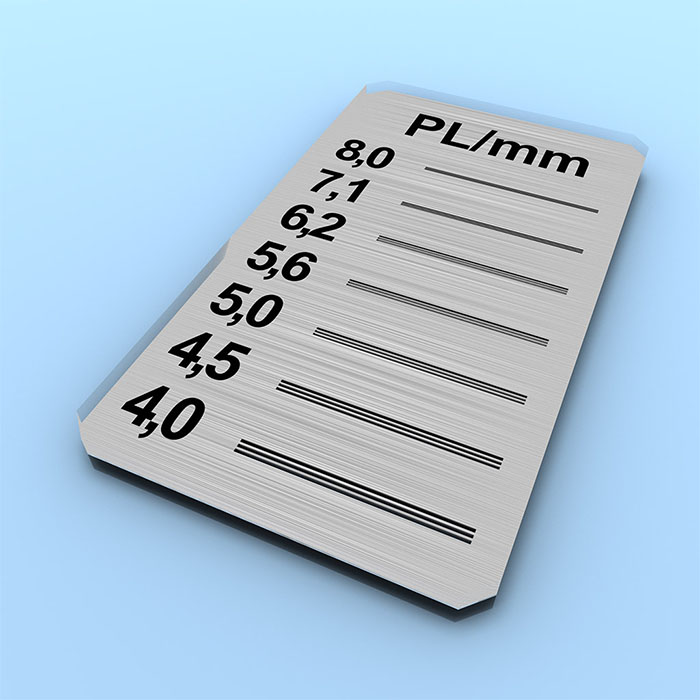

Pro-Res Dent Intra

Lead thickness: 0.05mm
Resolution range: 4.0 - 8.0 LP/mm
Number of groups: 7
Bars per group: 3
Size: 16x32mm
Pro-Res Dent Intra

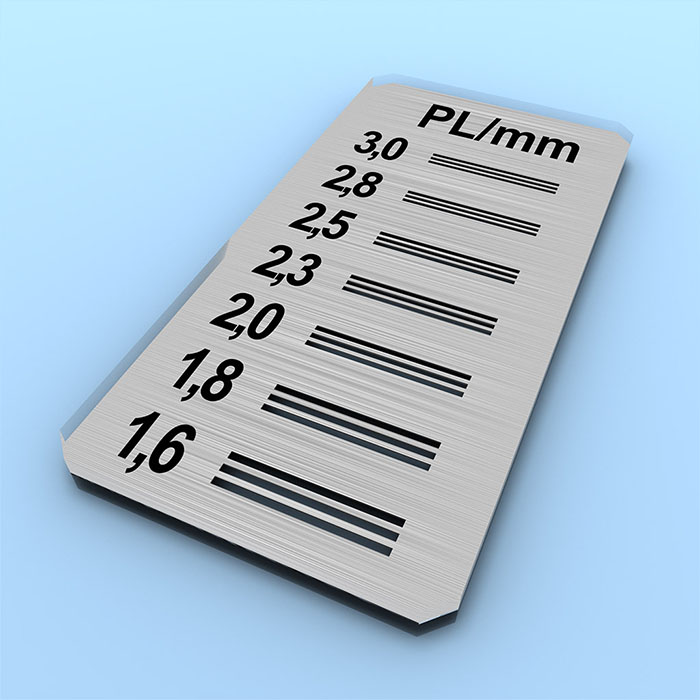

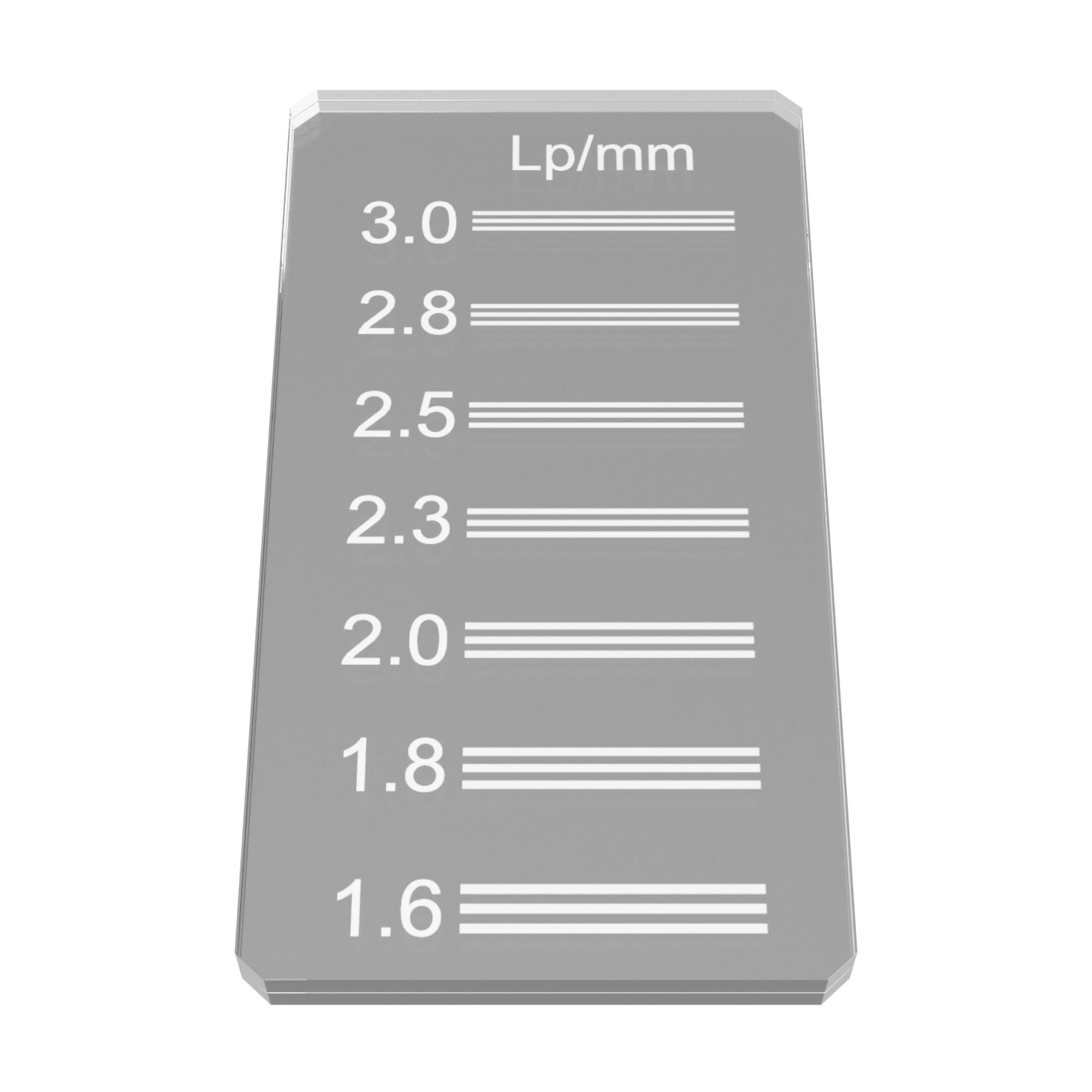

Pro-Res Dent OPG

Lead thickness: 0.05mm
Resolution range: 1.6 - 3.0 LP/mm
Number of groups: 7
Bars per group: 3
Size: 17x31mm
Pro-Res Dent OPG


Mammography Resolution Patterns

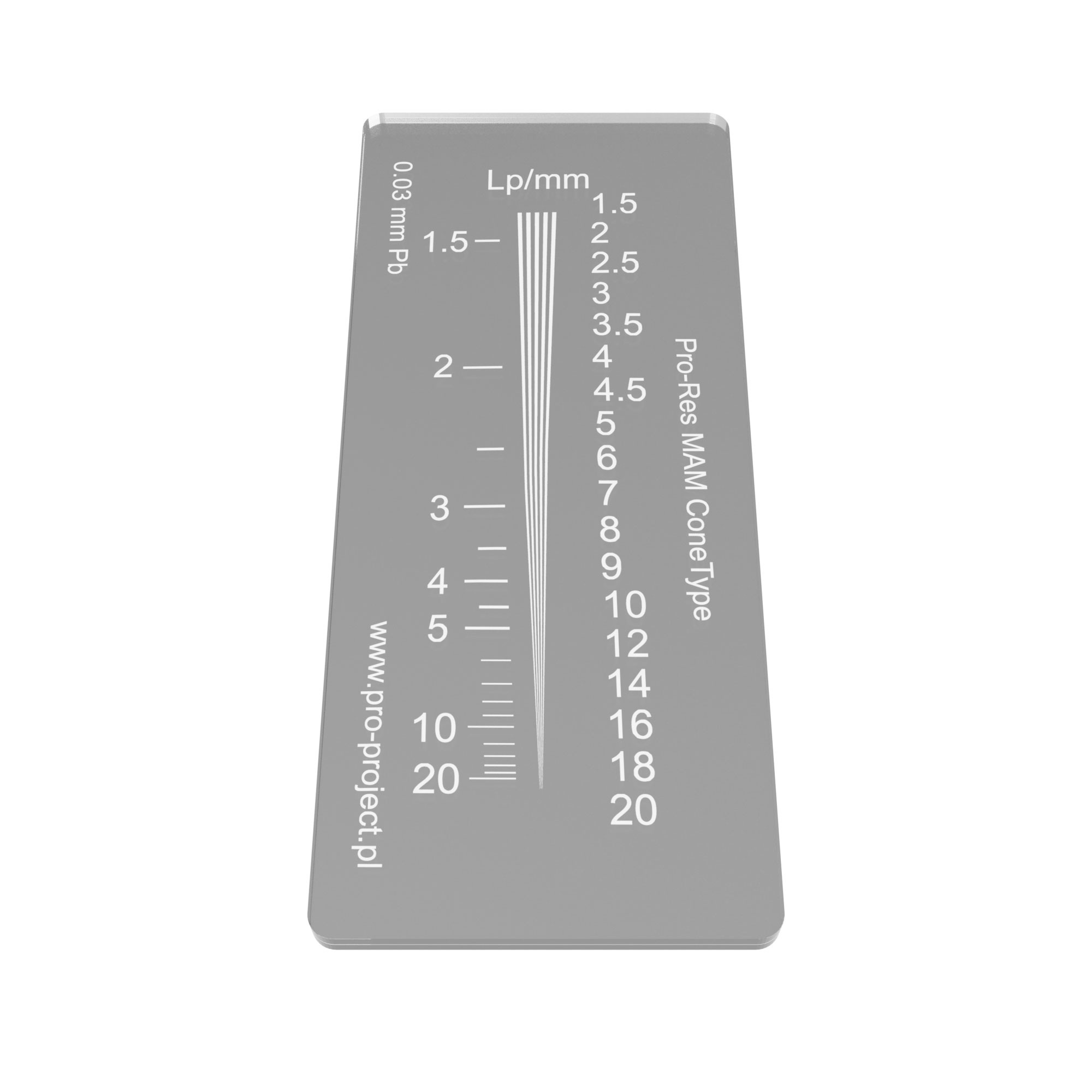

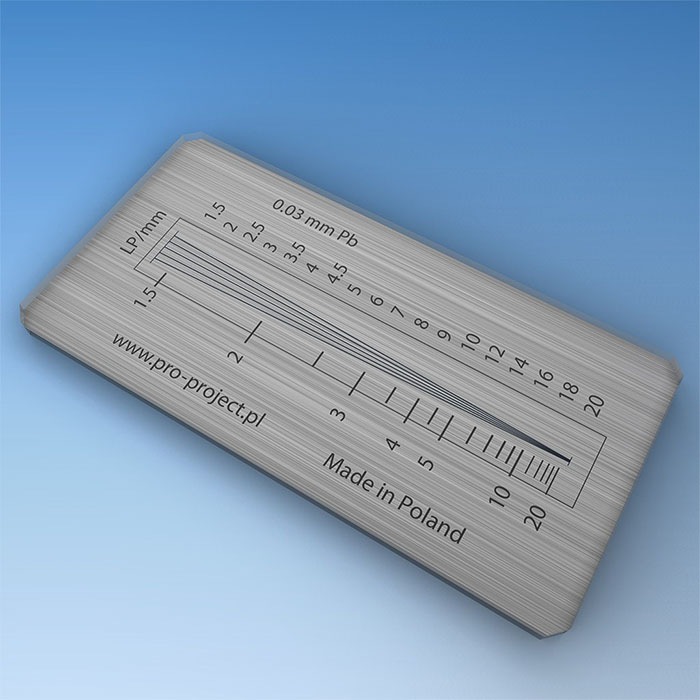

Pro-Res MAM ConeType

Lead thickness: 0.03mm
Resolution range: 1.5 - 20.0 LP/mm
Size: 26x60mm
Pro-Res MAM ConeType

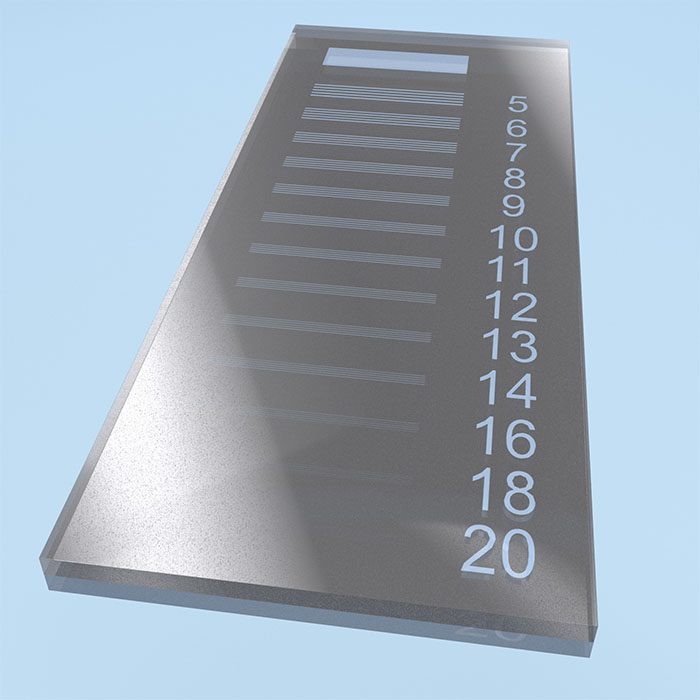

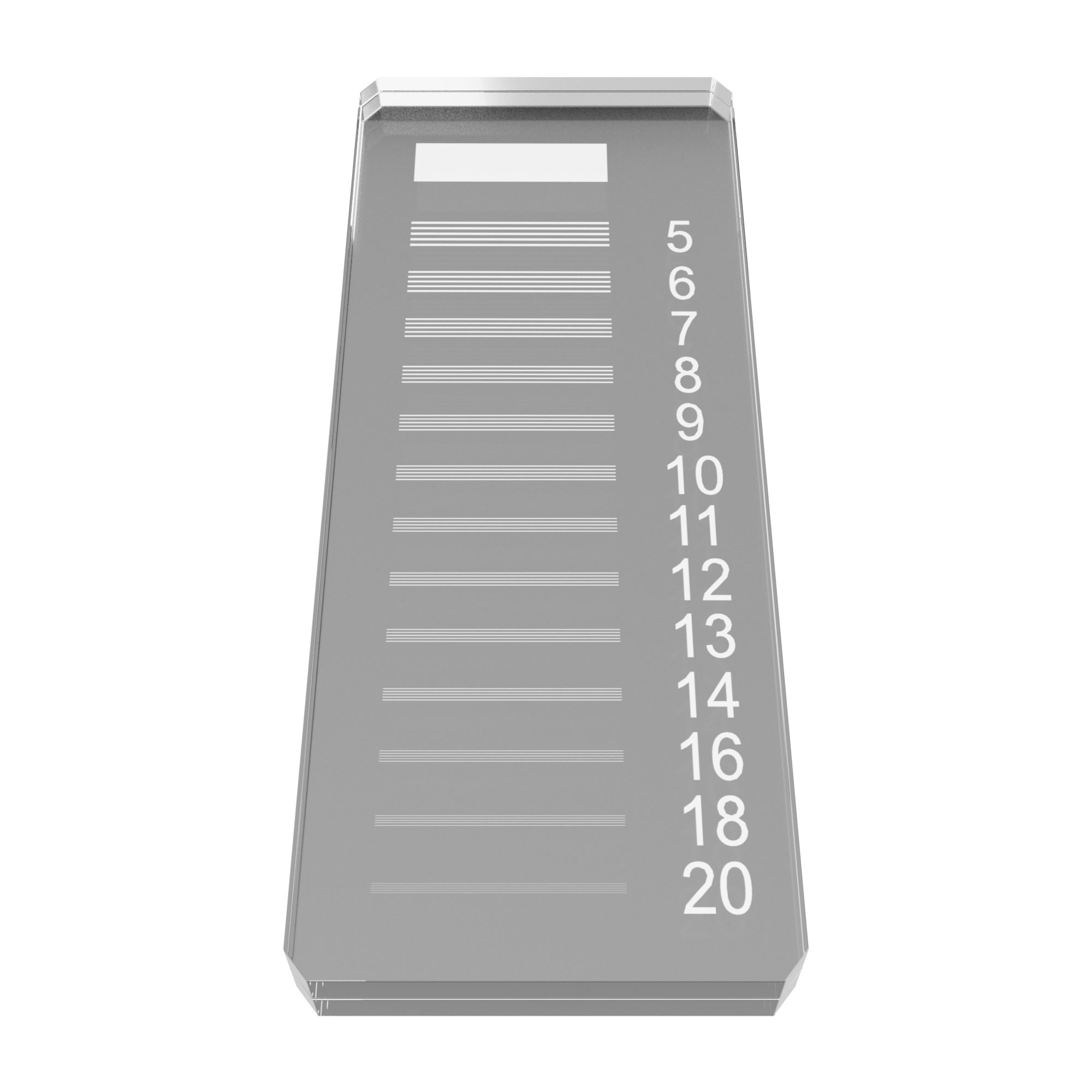

Pro-Res MAM BarType 1

Lead thickness: 0.02mm
Resolution range: 5.0 - 20.0 LP/mm
Number of groups: 13
Bars per group: 5
Size: 10x25mm
Pro-Res MAM BarType 1


MRI Resolution Pattern
Pro-Res MRI HolesType

Thru holes
Different hole diameters
Standard diameters range: 0.8 - 1.1 mm
Pro-Res MRI HolesType


MTF - Modulation Transfer Function Measurement Pattern

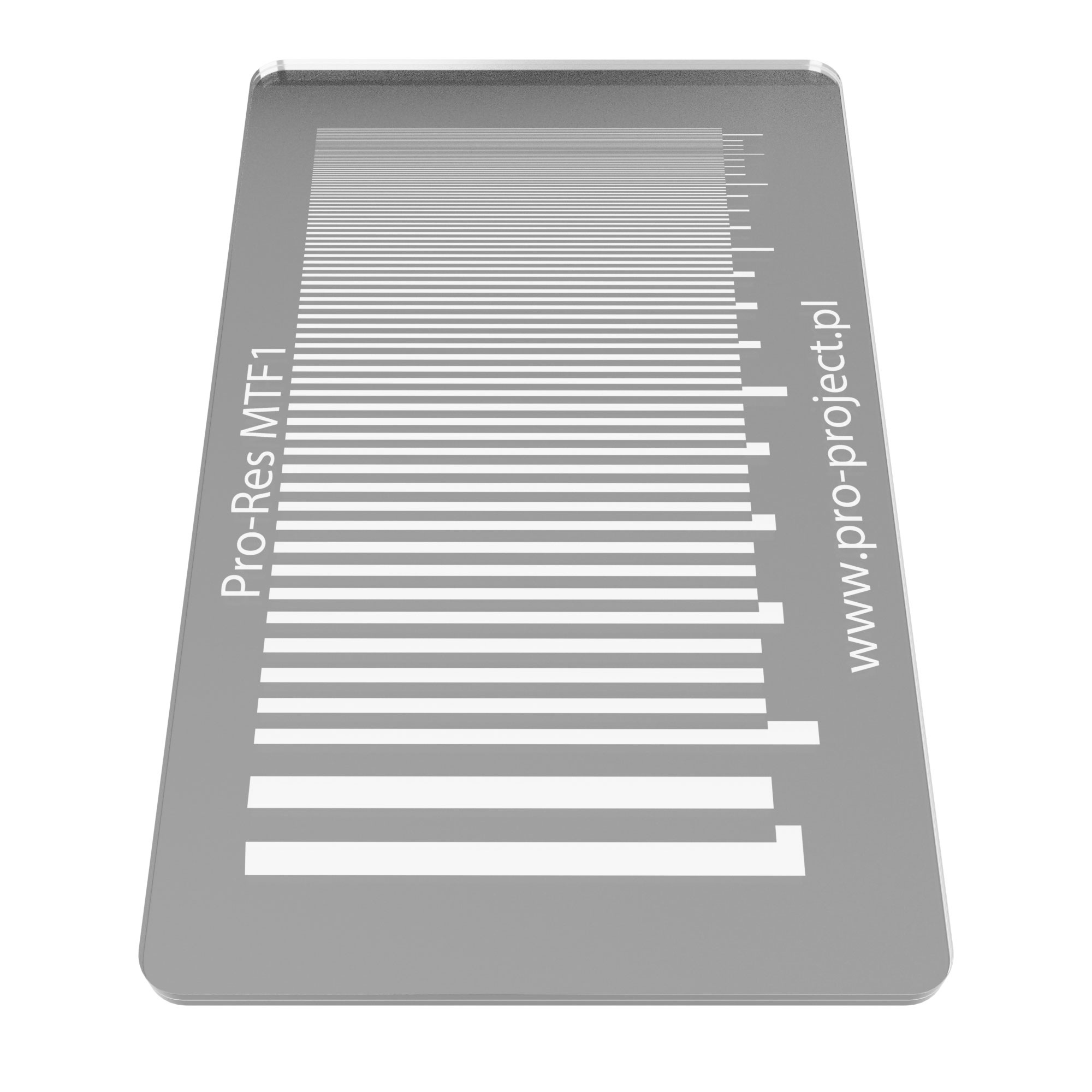

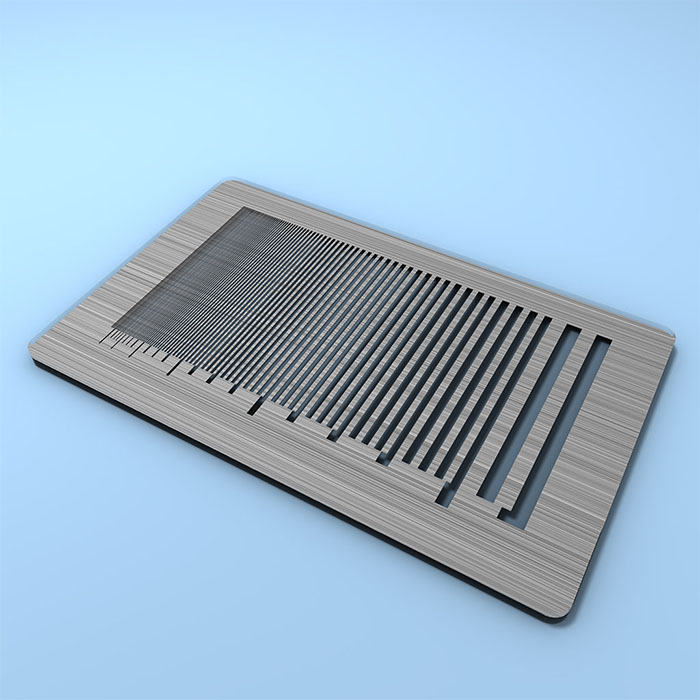

Pro-Res MTF 1

Lead thickness: 0.05mm
Resolution range: 0.25 - 10.0 LP/mm
Number of groups: 22
Resolutions: 0.25, 0.5, 0.6, 0.7, 0.85, 1.0, 1.2, 1.4, 1.7, 2.0, 2.4, 2.9, 3.5, 4.2, 5.0, 6.0, 7.0, 8.5, 10.0, 8.5, 7.0, 6.0 LP/mm
Size: 71x44mm
Pro-Res MTF 1


Radiography Resolution Patterns

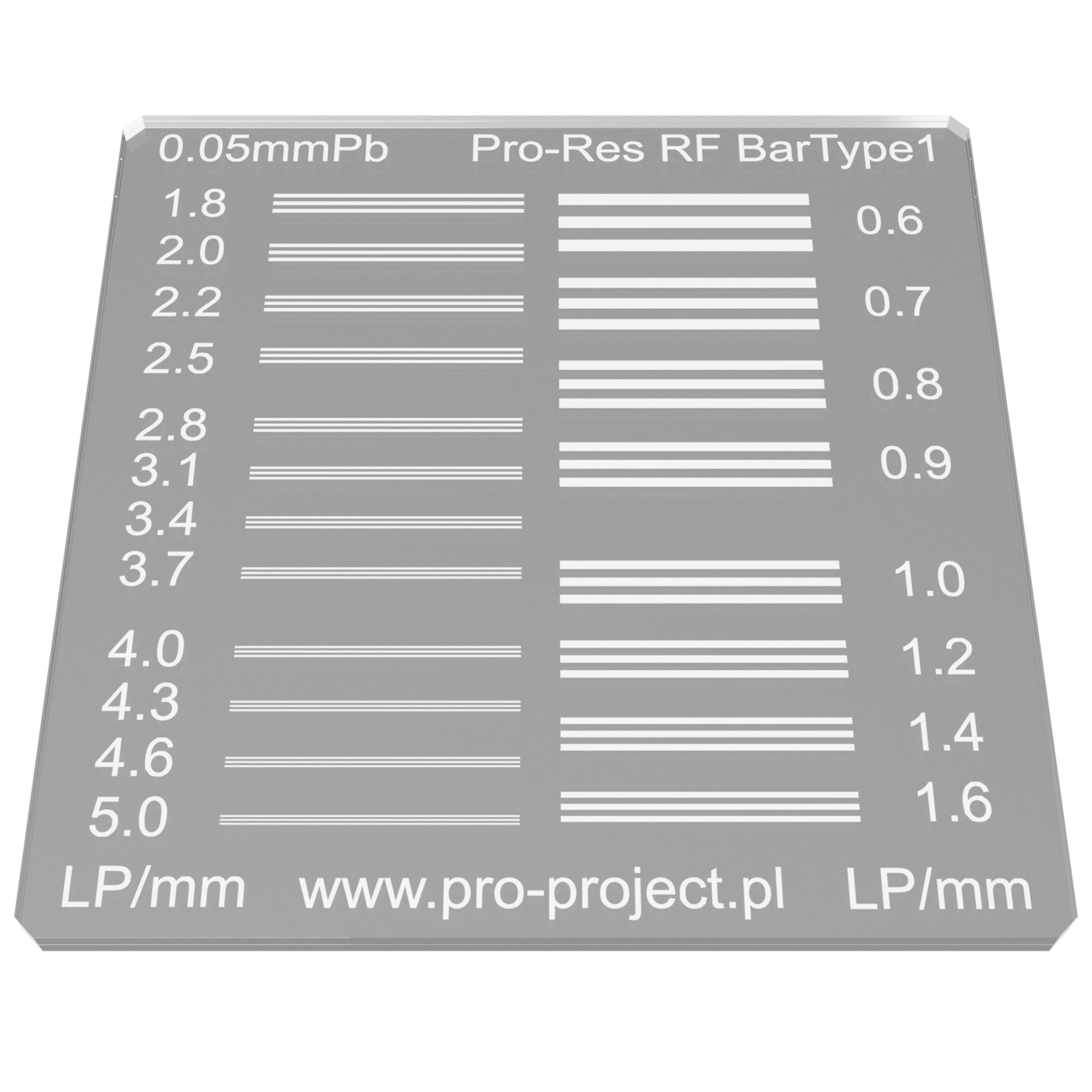

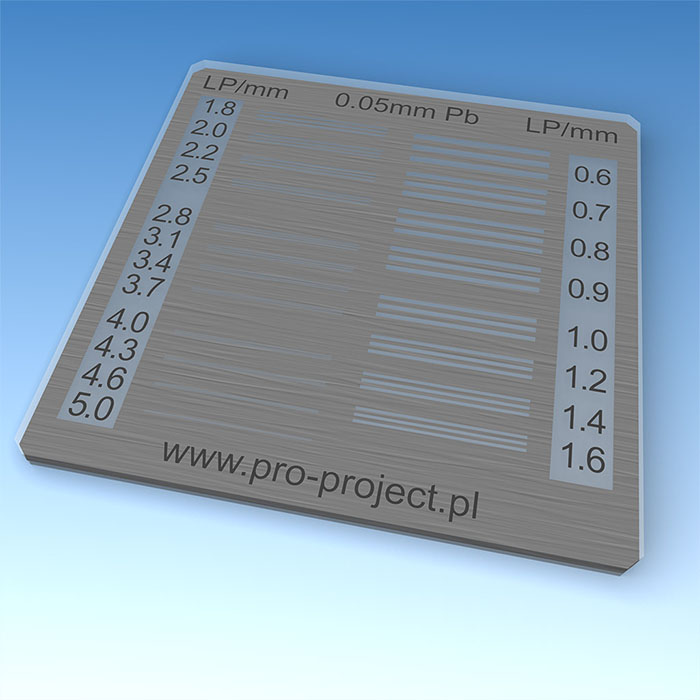

Pro-Res RF BarType 1

Lead thickness: 0.05mm
Resolution range: 0.6 - 5.0 LP/mm
Number of groups: 20
Bars per group: 3
Size: 50x50mm
Pro-Res RF BarType 1

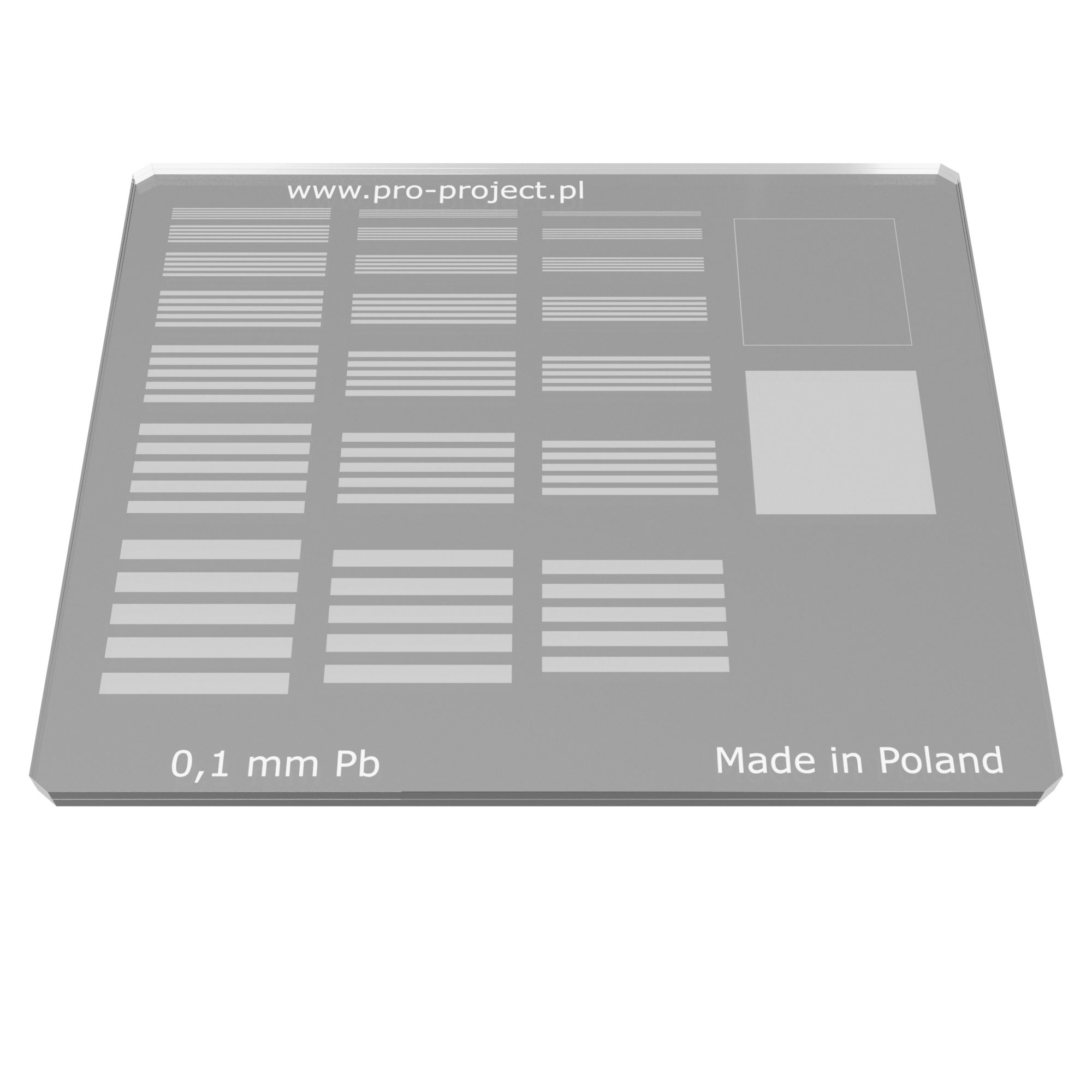

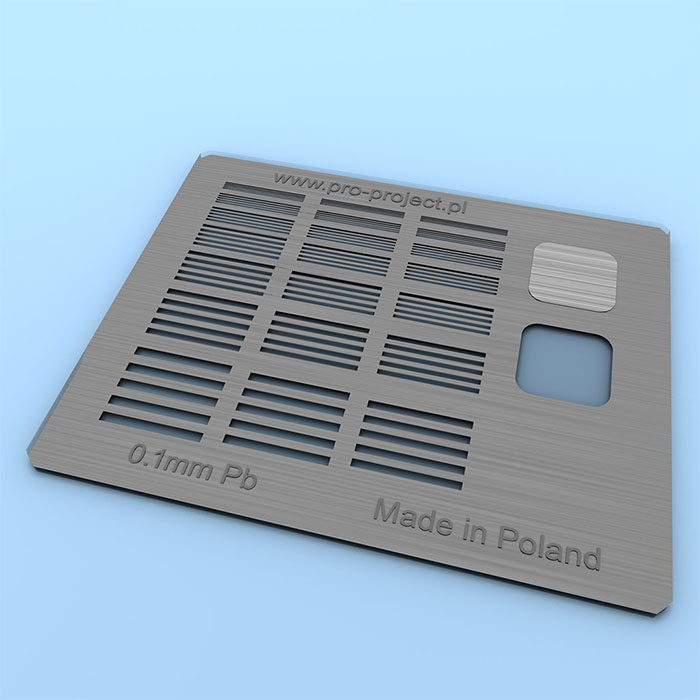

Pro-Res RF BarType 2

Lead thickness: 0.1mm
Resolution range: 0.5 - 5.0 LP/mm
Number of groups: 21
Bars per group: 5
size: 57x47mm
Pro-Res RF BarType 2

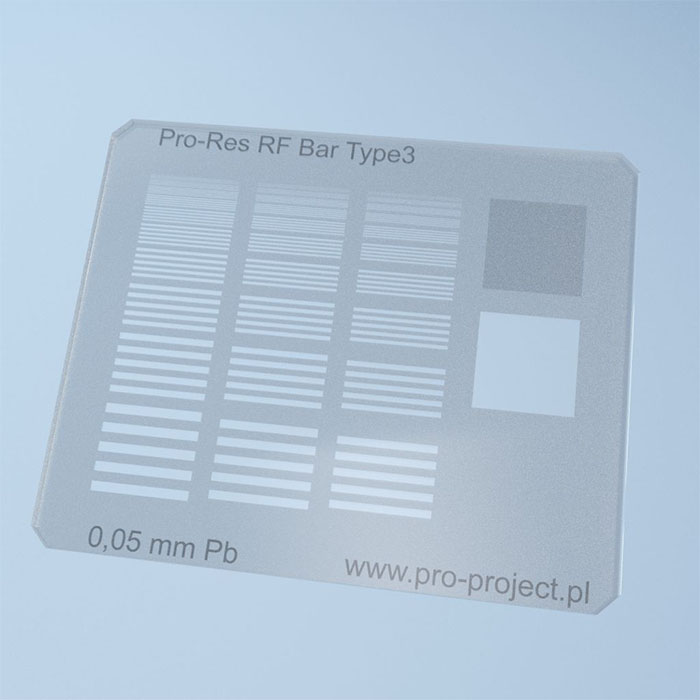

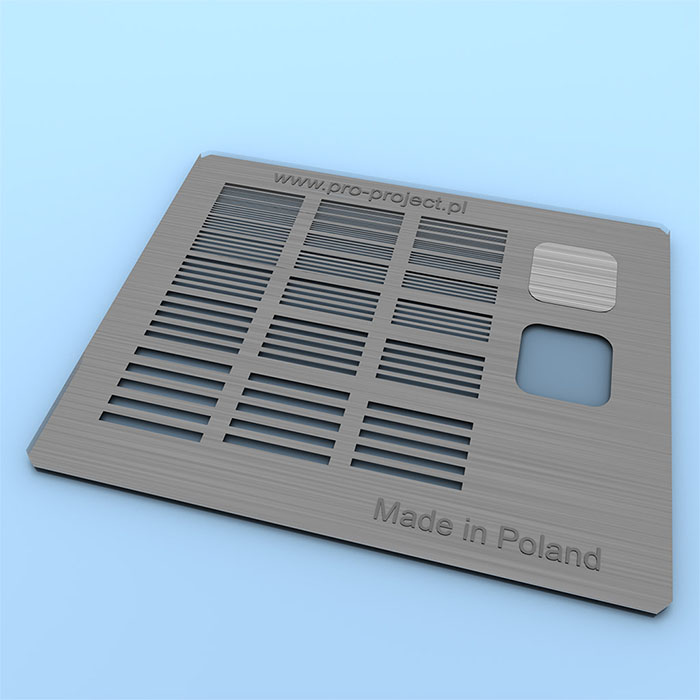

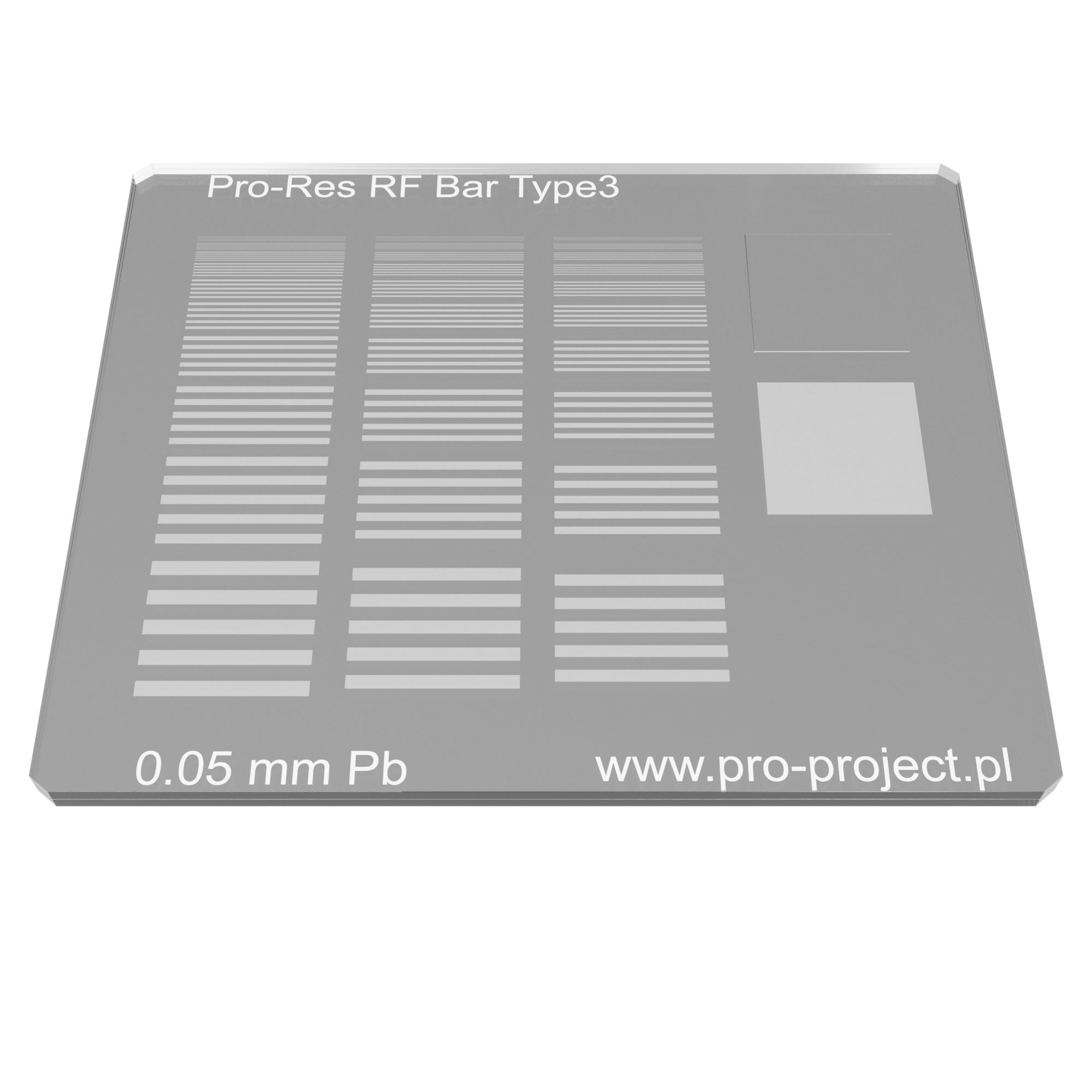

Pro-Res RF BarType 3

Lead thickness: 0.05mm
Resolution range: 0.5 - 14.3 LP/mm
Number of groups: 30
Bars per group: 5
Size: 57x47mm
Pro-Res RF BarType 3
Pro-Res RF BarType 3 - x-ray image

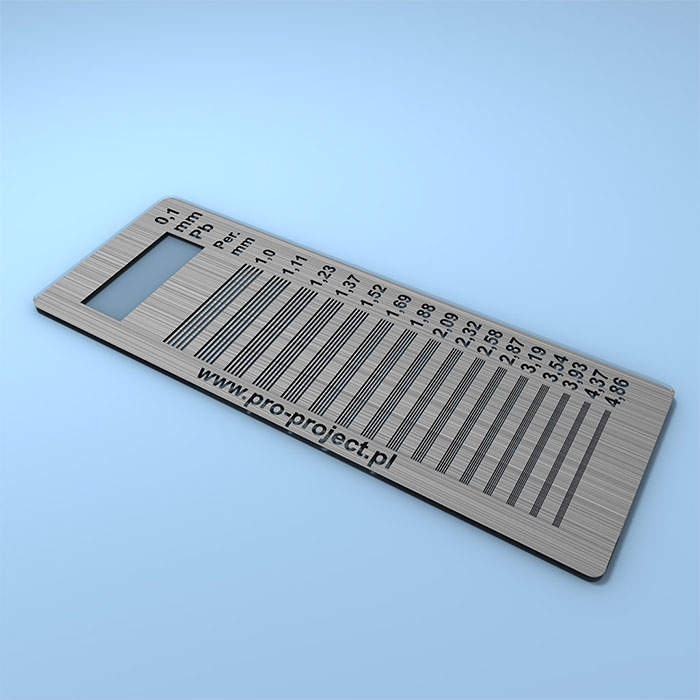

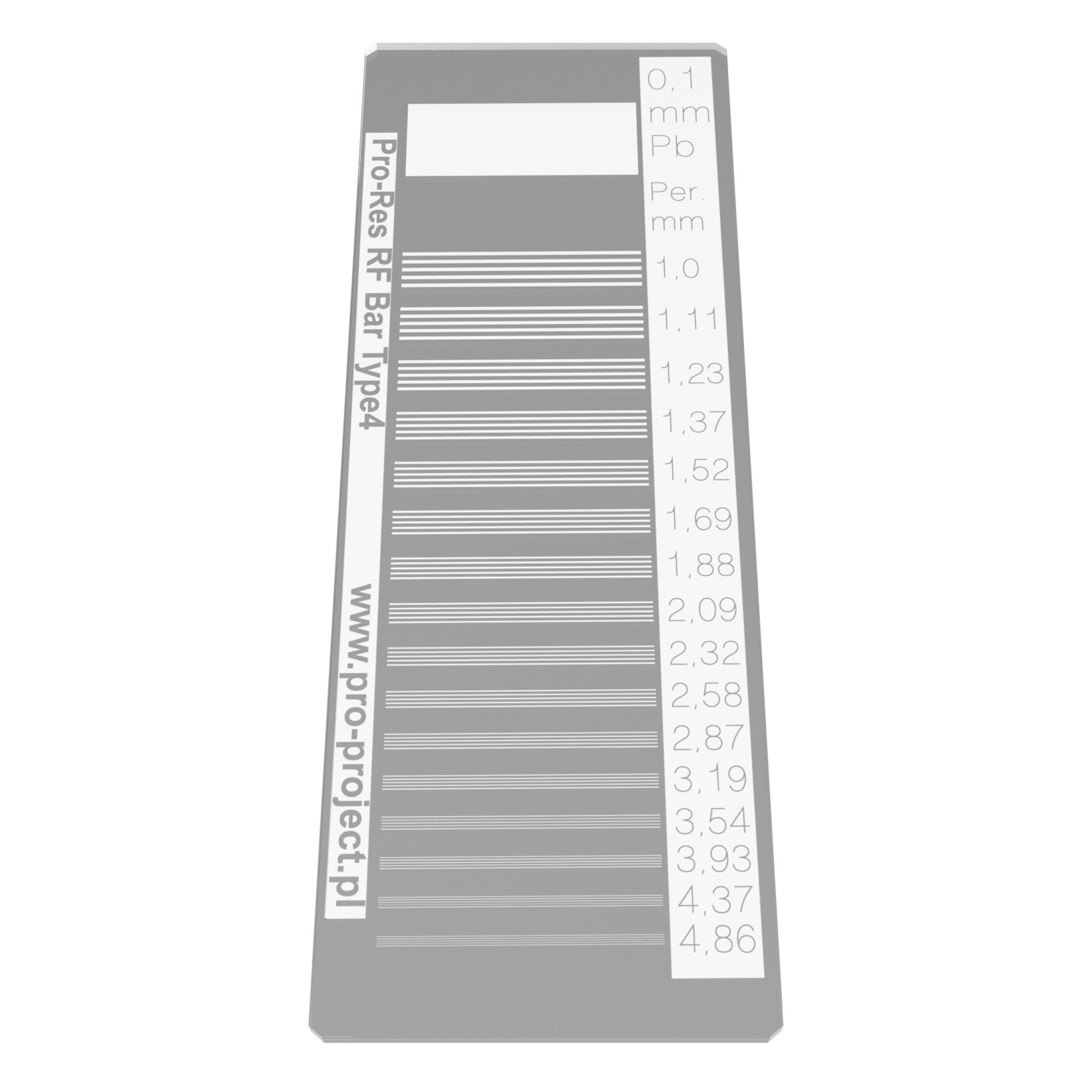

Pro-Res RF BarType 4

Lead thickness: 0.1mm
Resolution range: 1.0 - 4.86 LP/mm
Number of groups: 16
Bars per group: 5
Size: 110x40mm
Pro-Res RF BarType 4

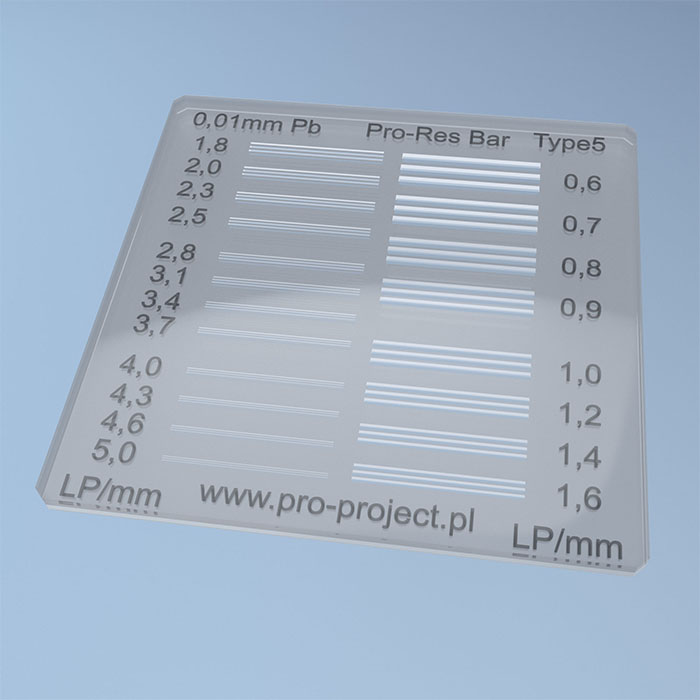

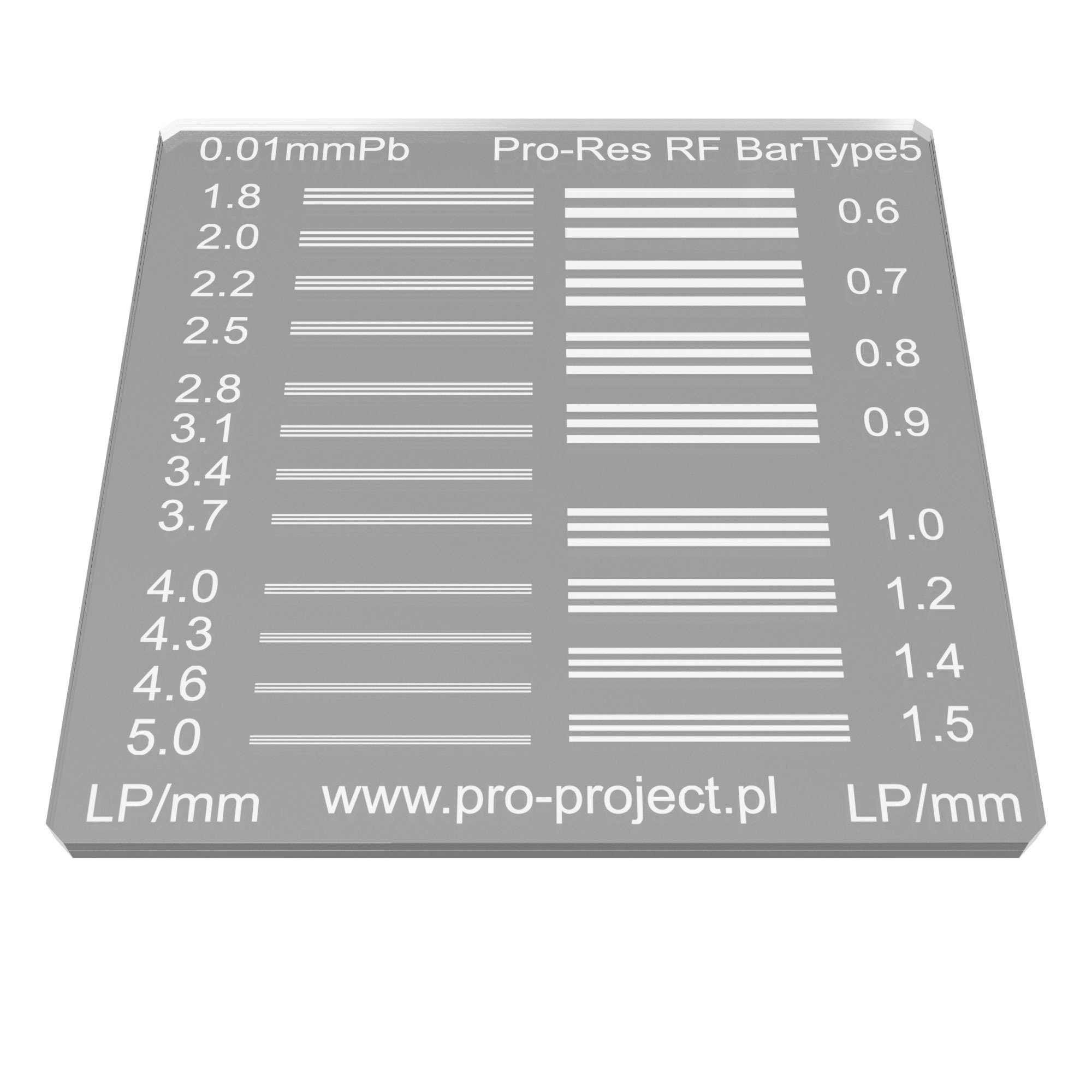

Pro-Res RF BarType5

Lead thickness: 0.01mm
Resolution range: 0.6 - 5.0 LP/mm
Number of groups: 20
Bars per group: 3
Size: 50x50mm
Pro-Res RF BarType 5

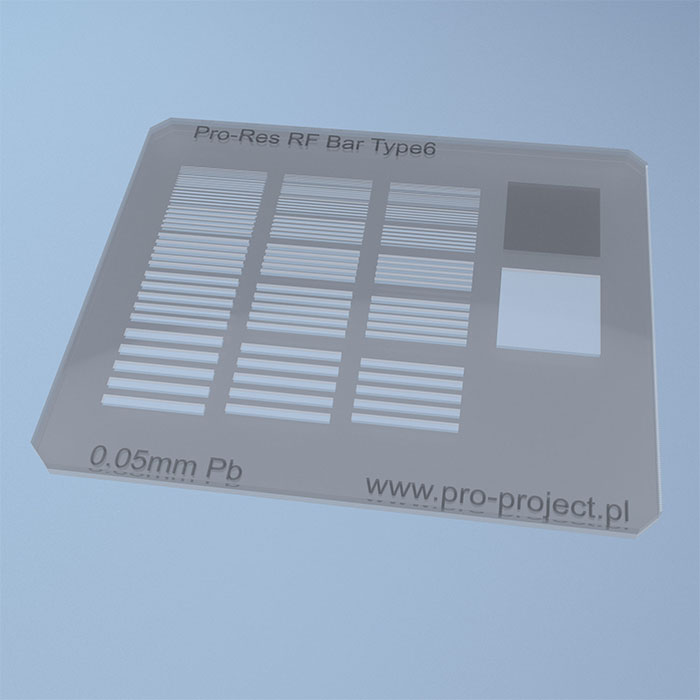

Pro-Res RF BarType6

Lead thickness: 0.05mm
Resolution range: 0.5 - 5.0 LP/mm
Number of groups: 21
Bars per group: 5
Size: 57x47mm
Pro-Res RF BarType 6

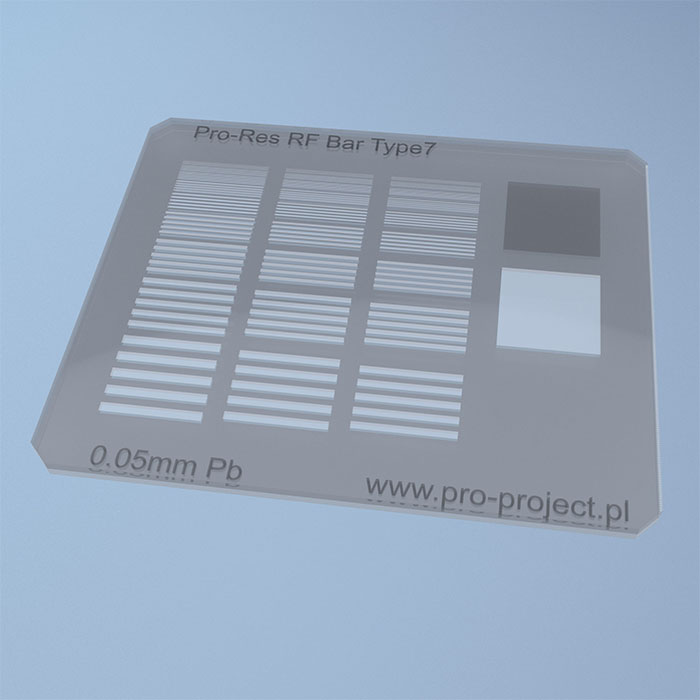

Pro-Res RF BarType7

Lead thickness: 0.05mm
Resolution range: 0.5 - 10.0 LP/mm
Number of groups: 27
Bars per group: 5
Size: 57x47mm
Pro-Res RF BarType 7

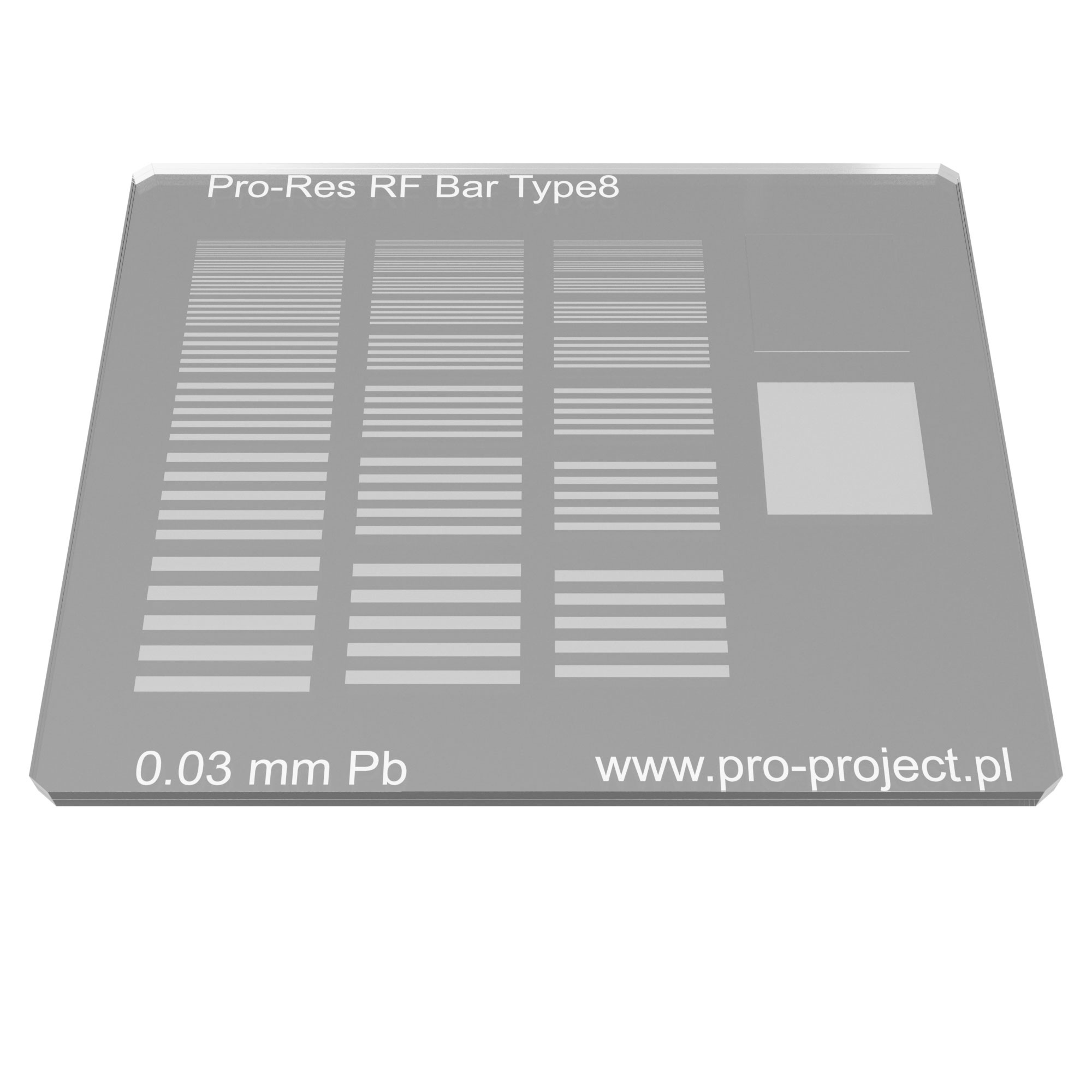

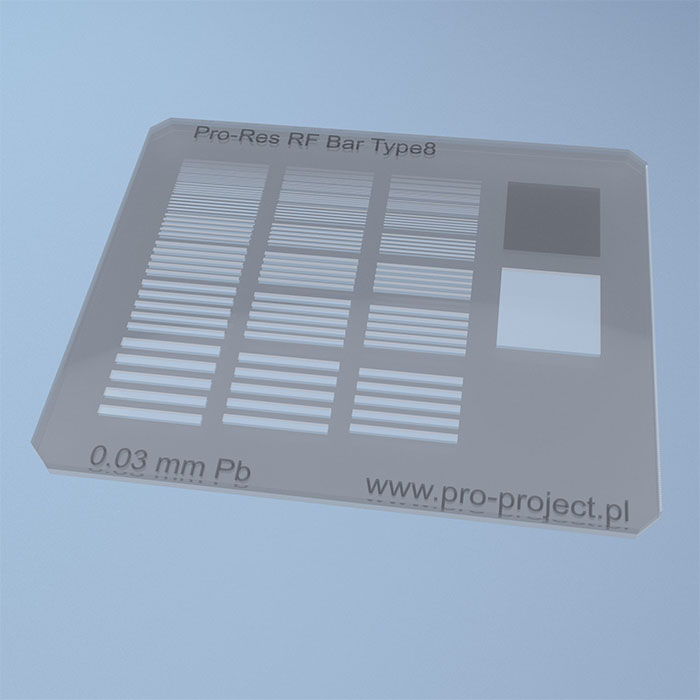

Pro-Res RF BarType8

Lead thickness: 0.03mm
Resolution range: 0.5 - 14.3 LP/mm
Number of groups: 30
Bars per group: 5
Size: 57x47mm
Pro-Res RF BarType 8

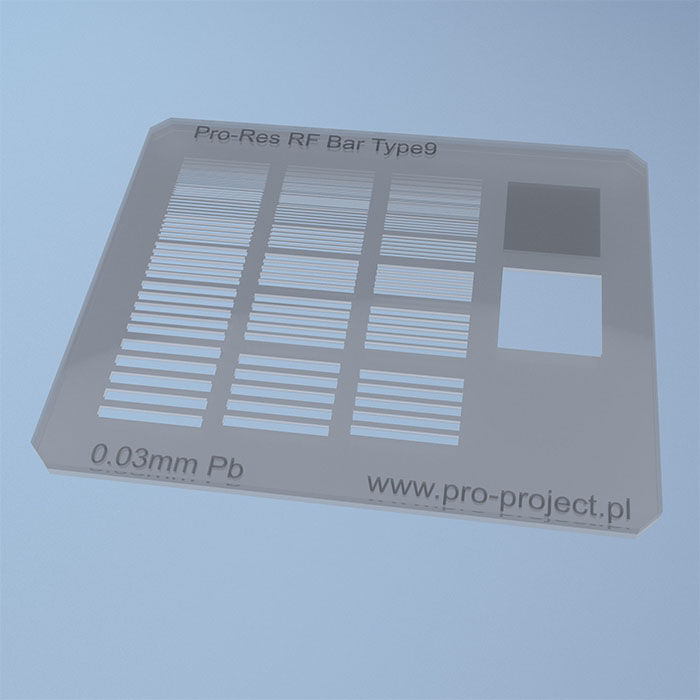

Pro-Res RF BarType9

Lead thickness: 0.03mm
Resolution range: 0.5 - 20.0 LP/mm
Number of groups: 33
Bars per group: 5
Size: 57x47mm
Pro-Res RF BarType 9

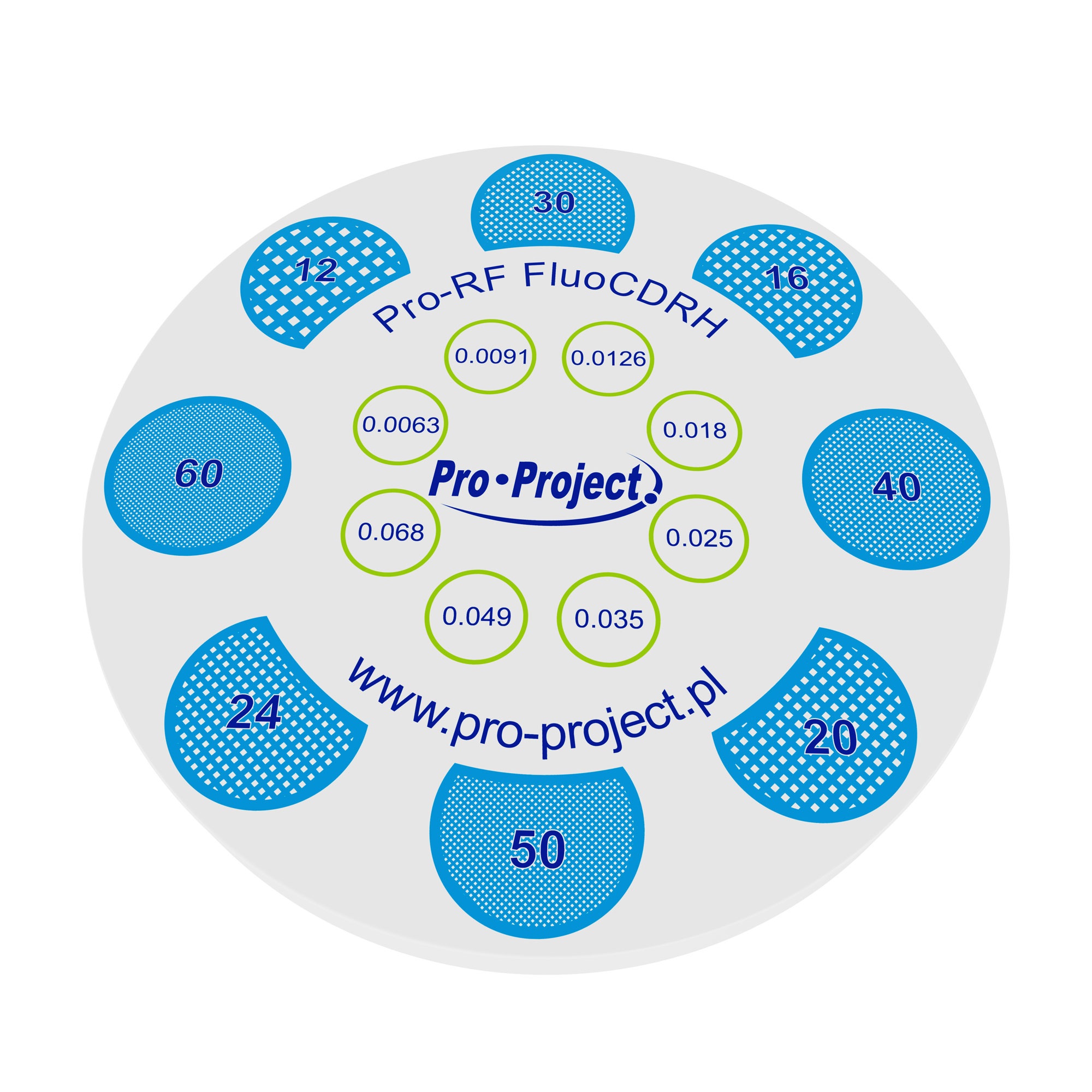

Pro-Res RF MeshType

Standard wire meshes from 16 to 150
Different sizes
Different graduations
Diamater: 20mm
Pro-Res RF MeshType

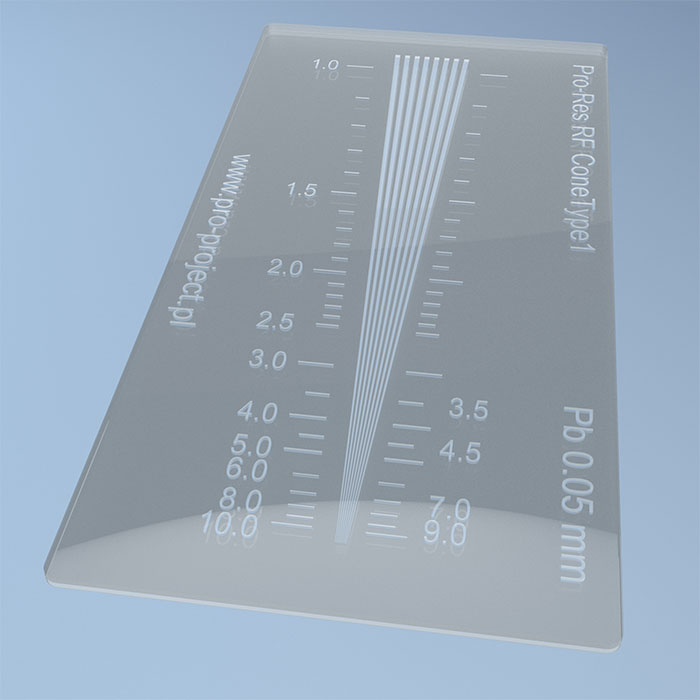

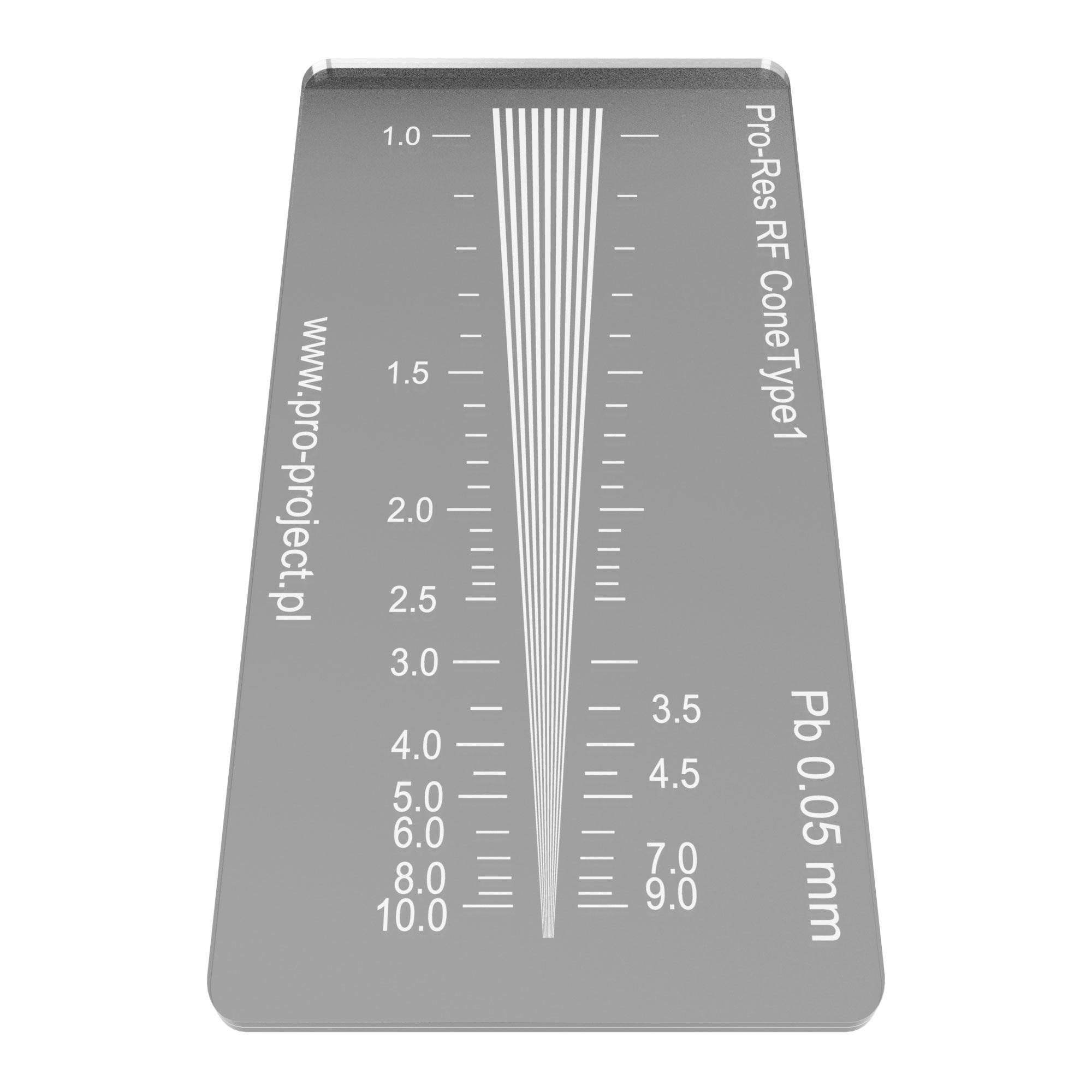

Pro-Res RF ConeType1

Resolution range: 1.0 - 10.0 LP/mm
Lead thickness: Pb 0.05mm
Number of groups: 1
Size: 80x40mm
Pro-Res RF ConeType1

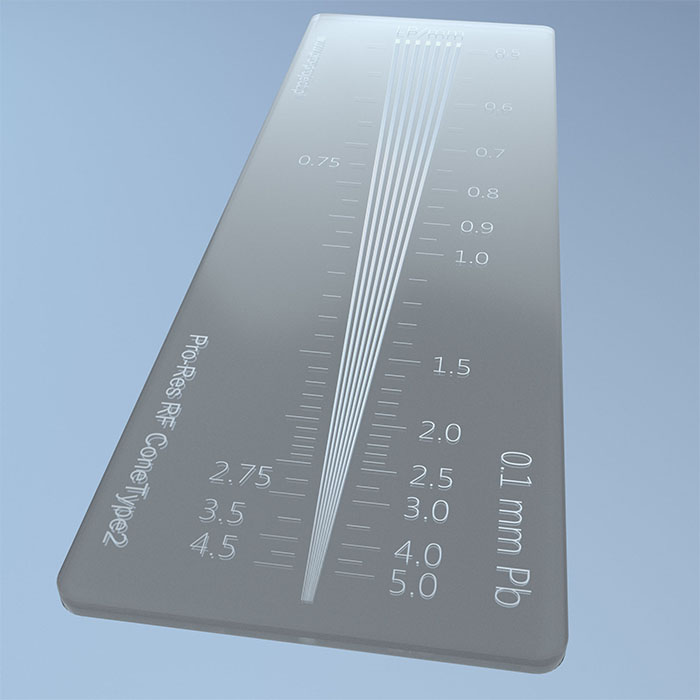

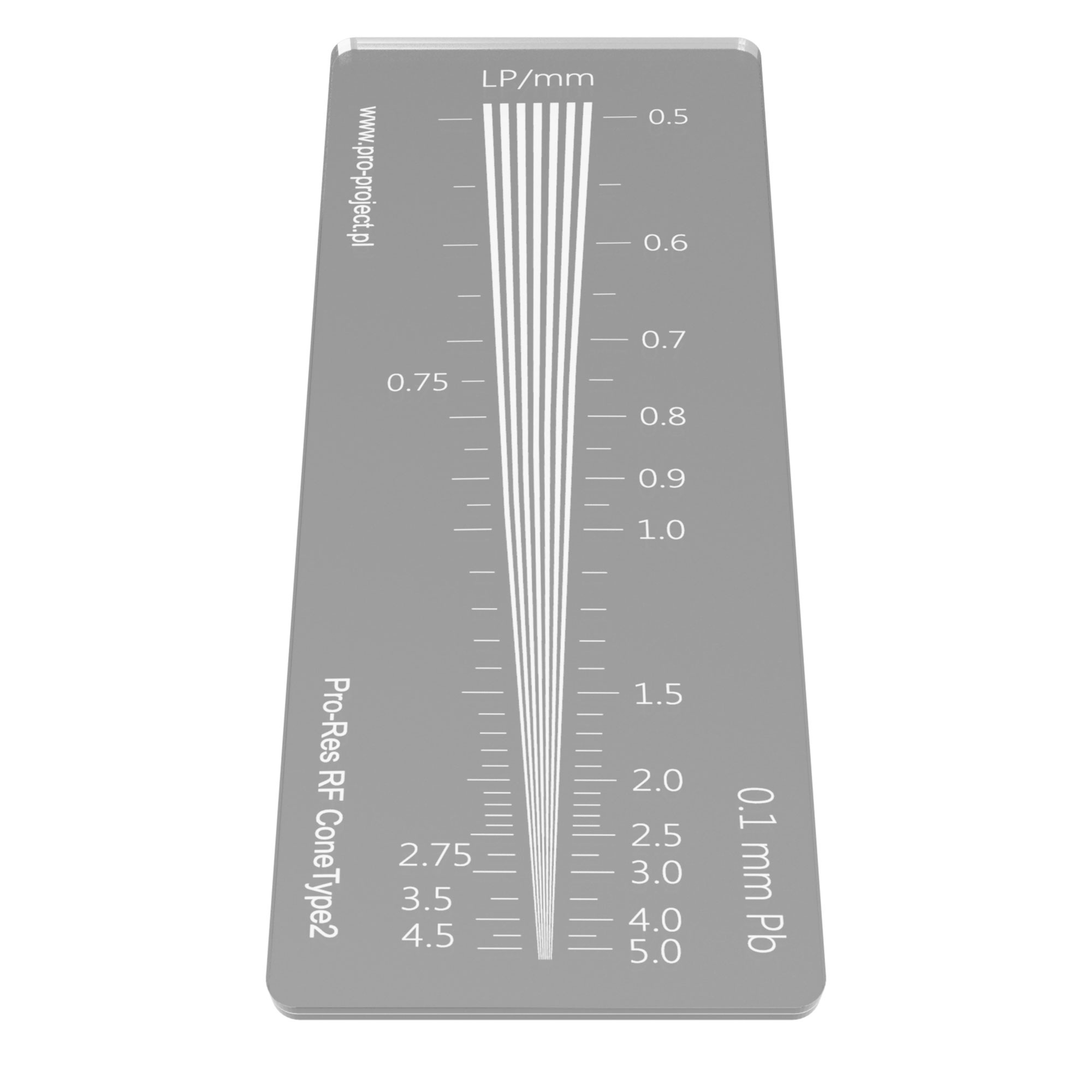

Pro-Res RF ConeType2

Resolution range: 0.5 - 5.0 LP/mm
Lead thickness: Pb 0.1mm
Number of groups: 1
Size: 150x50mm
Pro-Res RF ConeType2

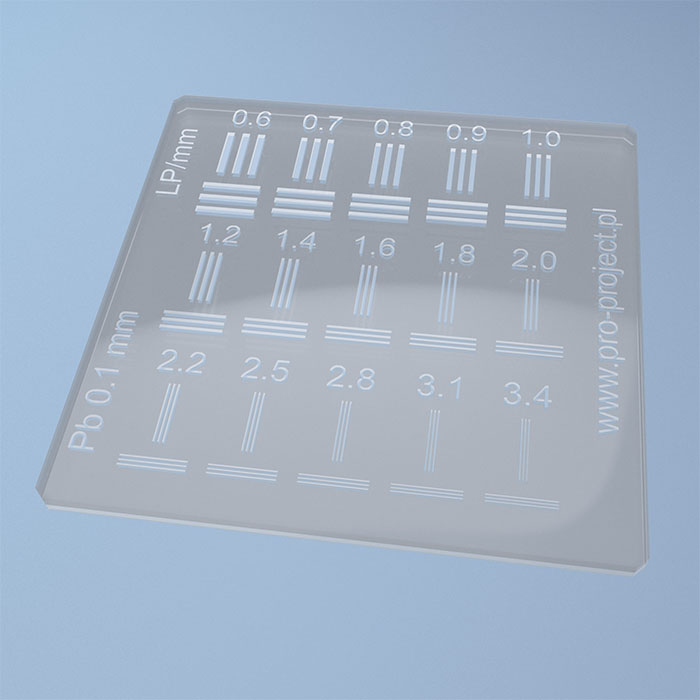

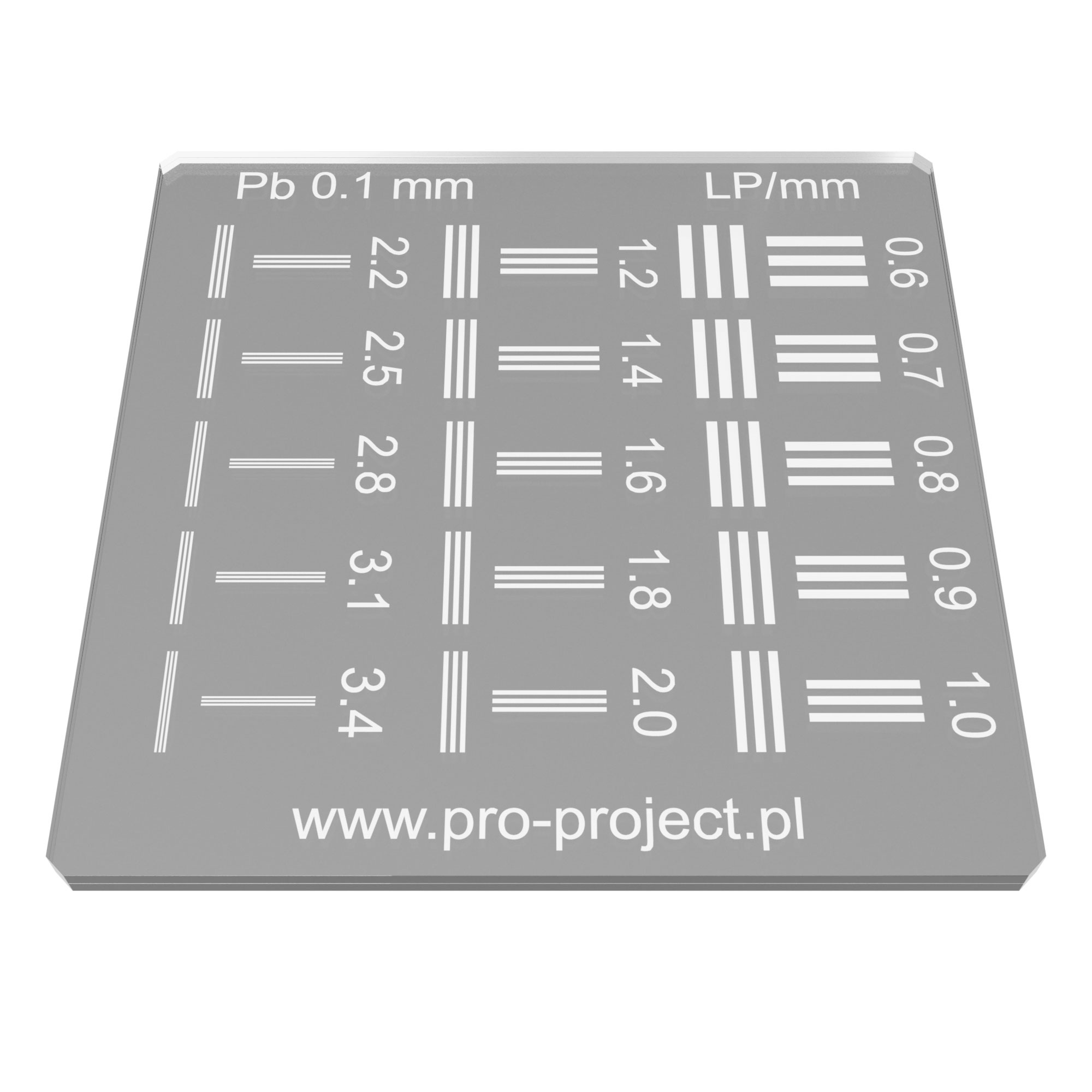

Pro-Res RF MultiBarType1

Resolution range: 0.6 - 3.4 LP/mm
Lead thickness: Pb 0.1mm
Number of groups: 2x15 groups
Size: 50x50mm
Pro-Res RF MultiBarType1
