Pro-CT ProVet
Veterinary CT QA Phantom - Diagnomatic by Pro-Project

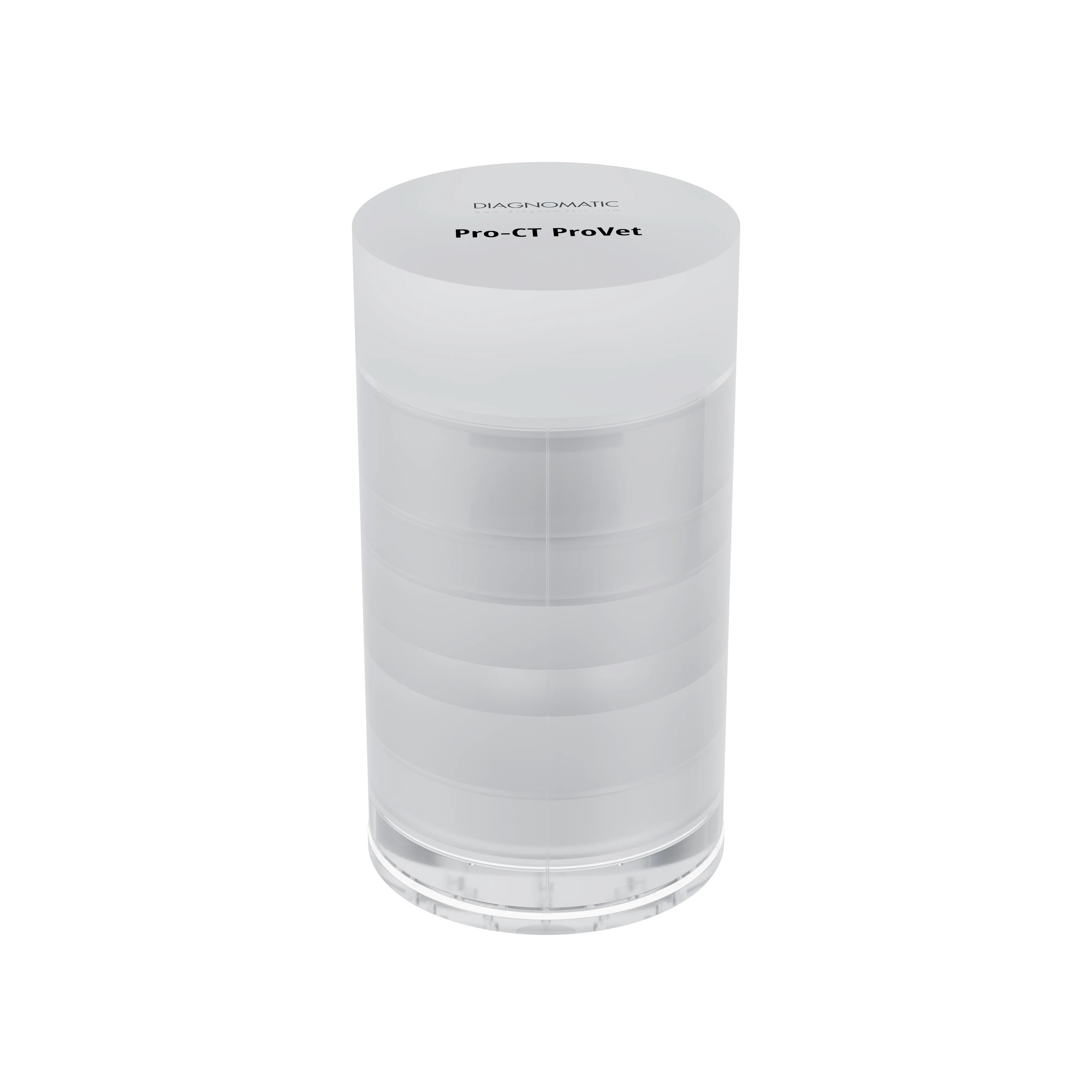

Pro-CT ProVet from Diagnomatic by Pro-Project fits small-animal CT workflows with a 110 mm diameter, 200 mm long PMMA body and image-quality test modules.
Click a photo or illustration to enlarge it.
Modules
Geometry module
A screw-cap section containing a uniform matrix of holes sized 2.0 mm by 3.0 mm, arranged at 10 mm intervals.
Self-fillable water module
A dedicated cavity for water filling used for assessing HU stability and uniformity.
Low-contrast module
A set of rods with diameters 2, 3, 4, 6, 8, 10 and 12 mm, each differing by 3 percent in density relative to the background.
Sensitometry module
Material inserts made of:
- PTFE
- POM-C
- LDPE
- AIR
- H2O resin
High-contrast and spatial resolution module
Resolution patterns covering a range from 12 to 30 LP/cm.
LSF and PSF module
- Two 0.2 mm tungsten carbide beads for MTF and SSP evaluation
- PTFE and PMMA interface for LSF
- 0.025 mm tungsten wire in air for PSF
Geometry ramps module
A pair of 0.025 mm tungsten wire ramps in air.
Homogeneous PMMA module
A 40 mm thick PMMA section used for evaluating uniformity and noise.
Application scope

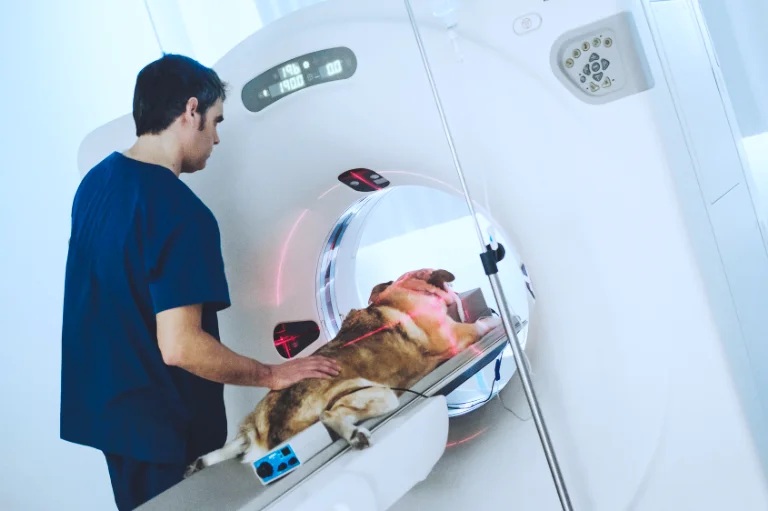

- Intended for veterinary and small-animal CT, where standard phantoms exceed the available field of view
- Provides the essential QA measurements in a single device
- Test conditions remain repeatable in limited FOV environments
- Made of PMMA
Features and Test References
- complies with:
- IEC 61223-3-5
- IEC 61223-2-6 - CE marked
- Includes a manual covering the tests, result evaluation and recording.
