Pro-CT MK II
Modular CT Quality Assurance Phantom - Diagnomatic by Pro-Project - 04-410

Pro-CT MK II from Diagnomatic by Pro-Project brings CT number, noise, uniformity, resolution and geometry checks together in a modular phantom.

Click a photo or illustration to enlarge it.

Models and Ordering

What is Pro-CT MK II used for?

Pro-CT MK II is a CT quality assurance phantom designed for routine quality control, constancy testing, and acceptance testing in diagnostic CT systems.
It supports key image quality parameters described in IEC 61223-3-5 and widely referenced in AAPM reports for CT quality assurance, including HU accuracy, uniformity, noise, spatial resolution, and slice thickness.
Medical physics departments use Pro-CT MK II for regular QA workflows and trend analysis.

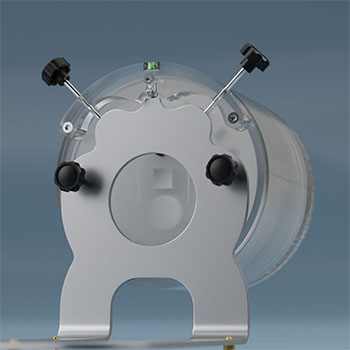

This phantom consists of several test modules placed inside a cylindrical container that can be mounted either directly on a holder of the CT table or on an adjustable stand. It allows accurate alignment for measurements on and off the table. Markings on the phantom and levelling aids provide further facilitation of the positioning process.

The Phantom can be used to do the following tests

• geometric distortions
• mean deviation of the HU value
• noise level/uniformity
• artifacts
• MTF
• SSP, LSF, PSF
• CNR
• high-contrast resolution
• z-dimension spatial resolution
• low-contrast resolution
• slice profile/slice thickness
• isocenter compliance
• linearity

Specifications

• the main module contains a PMMA section with an array of holes 2 mm in diameter, 10 mm deep, and placed at 10 mm intervals
• outside diameter: 220 mm
• length: 250 mm
• optional external beam hardening rings:
  - 380 mm outside diameter (04-417)
  - 350 mm outside diameter (04-418)
  - 300 – 380 mm outside oval diameter (04-419)
  - 450 – 550 mm outside oval diameter (04-420)

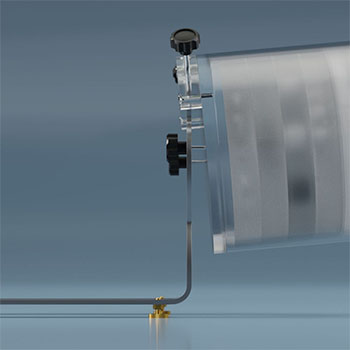

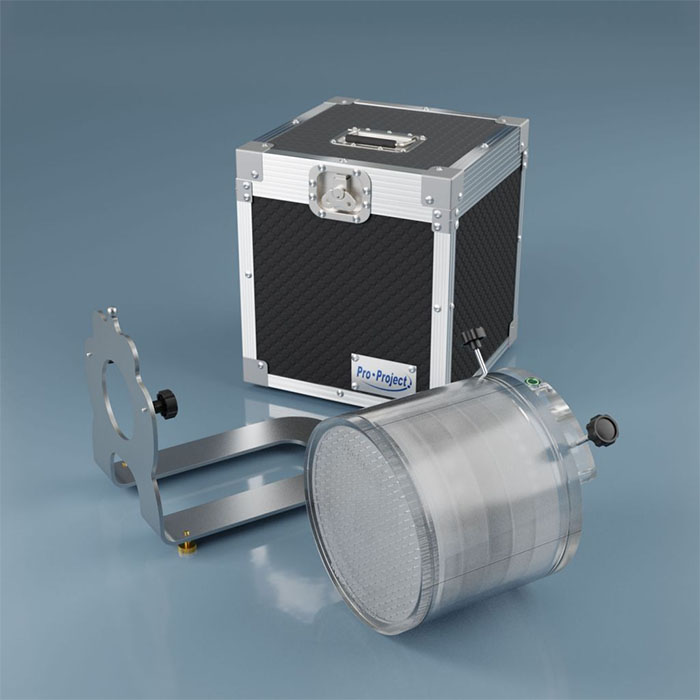

• universal positioning stand for on and off-table measurements (04-550)
• optional dedicated adapters for various manufacturers:
  - (04-551) Canon Medical Systems
  - (04-552) Siemens Healthineers
  - (04-553) GE Healthcare

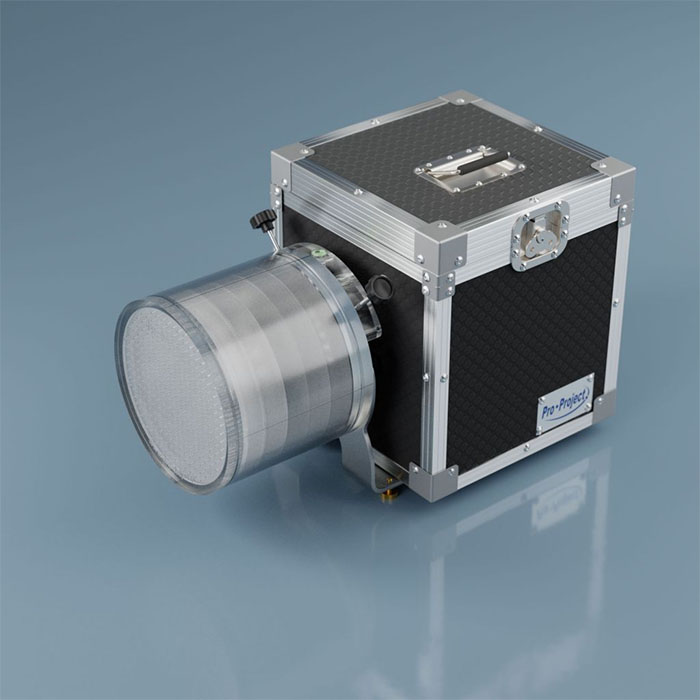

• carrying case

Optional dedicated adapters

Modules

The modular design of Pro-CT MK II allows structured and repeatable QA measurements aligned with routine clinical workflows.

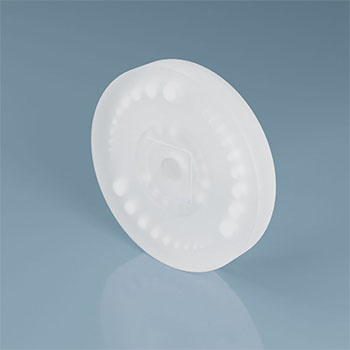

Low contrast

• diameter: 200 mm
• thickness: 30 mm
• made of PMMA
• contains three groups of low-contrast objects: in each group, there are rods of the same density, 20 mm in height and with a diameter ranging from 1 to 15 mm. Contrast difference between groups and surrounding material is 0.3, 0.6 and 1%
• optional subslice targets having a nominal 1.0% contrast and z-axis lengths of 3, 5, and 7 mm. For each of these lengths, there are objects of 2, 3, 5, 7 and 9 mm in diameter (04-411)

Sensitometry

• diameter: 200 mm
• thickness: 30 mm
• contains 9 sensitometric samples shaped like rods (ø25 mm): PTFE, LDPE, POM-C, ABS, PA-6, PET, air, a sample with water and PMMA – modules body

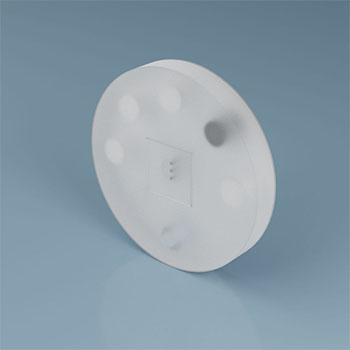

Geometry

• diameter: 200 mm
• thickness: 30 mm
• contains two pairs of steel wire ramps whose slope angle tangent is equal to 0.5
• middles of ramps intersect on the same plane allowing very precise evaluation of the slice location
• contains four ø5 mm rods and four ø3 mm rods from the air in the vertices of the regular octagon close to the outer perimeter of the phantom for evaluating symmetry and circular geometry
• optional nine spheres to evaluate the scanner’s imaging of subslice spherical volumes, diameters: 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 and 9.0 mm (04-413)

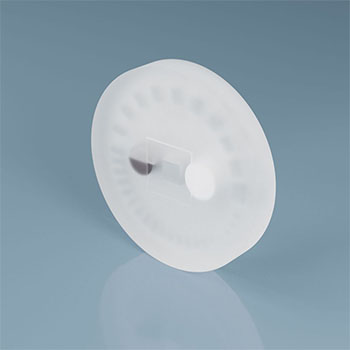

Resolution

• diameter: 200 mm
• thickness: 30 mm
• contains 13 concentrically placed high contrast elements for spatial resolution evaluation from 1 to 13 LP/cm
• two tungsten carbide beads ø0.18 mm and ø0.28 mm for MTF and SSP calculation
• Linear Spread Function (LSF) PTFE / PMMA interface
• Point Spread Function (PSF) - 0.25 mm stainless steel wire in air
• optional, additional concentrically placed high contrast elements for spatial resolution evaluation from 14 to 30 LP/cm (04-414)

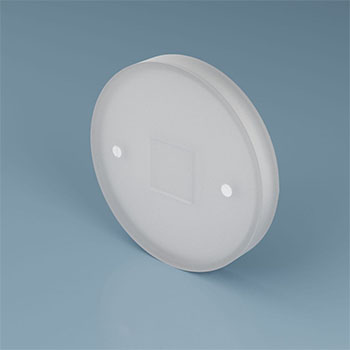

Homogeneous

• diameter: 200 mm
• thickness: 35 mm
• can be filled with water

Optional module made of Pro-Water water-equivalent (04-421)

• diameter: 200 mm
• thickness: 35 mm
• mimics true water within 1% accuracy

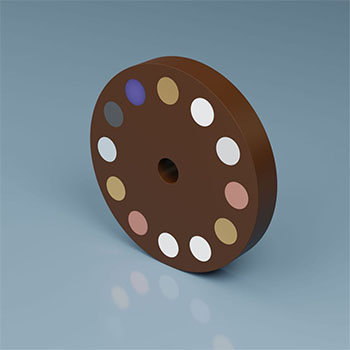

Optional electron density module (04-416)

• diameter: 200 mm
• thickness: 30 mm
• contains samples of 10 different rod-shaped materials (Ø 30 mm x 27.5 mm) with known physical and electron density corresponding to the following tissues: Lungs (inhalation), Lungs (exhalation), Breasts (50/50), Solid Trabecular Bone 200, Solid Dense Bone 800, Solid Dense Bone 1250, Liver, Muscles, Adipose tissue; additionally, a sample with water and, optionally, a titanium or steel rod

When combined with Diagnomatic software, Pro-CT MK II enables automated CT QA analysis, result trending, and standardized reporting.

Features and Test References

• complies with:
  - IEC 61223-3-5
  - AAPM guidelines
  - ACR guidelines
  - 21CFR 1020.33 specifications
• Designed for automated QA analysis with Diagnomatic software
• CE marked
• Includes a manual covering the tests, result evaluation and recording.


Learn about Diagnomatic quality assurance software and its image analysis workflow.
