Pro-RT ED CBCT
CBCT Electron Density Phantom - Diagnomatic by Pro-Project - 07-602, 07-602A
Pro-RT ED CBCT from Diagnomatic by Pro-Project supports system-specific CBCT calibration of CT numbers against electron density for radiotherapy planning.
Fifteen electron-density plugs, including two fillable water vials, fit 16 positions in the scan field. The plugs measure 30 mm in diameter and 165 mm long. Optional metal cores are available in titanium, stainless steel and aluminum.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 07-602 | Pro-RT ED CBCT |
| 07-602A | Pro-RT ED CBCT |
Specifications
Two configurations:

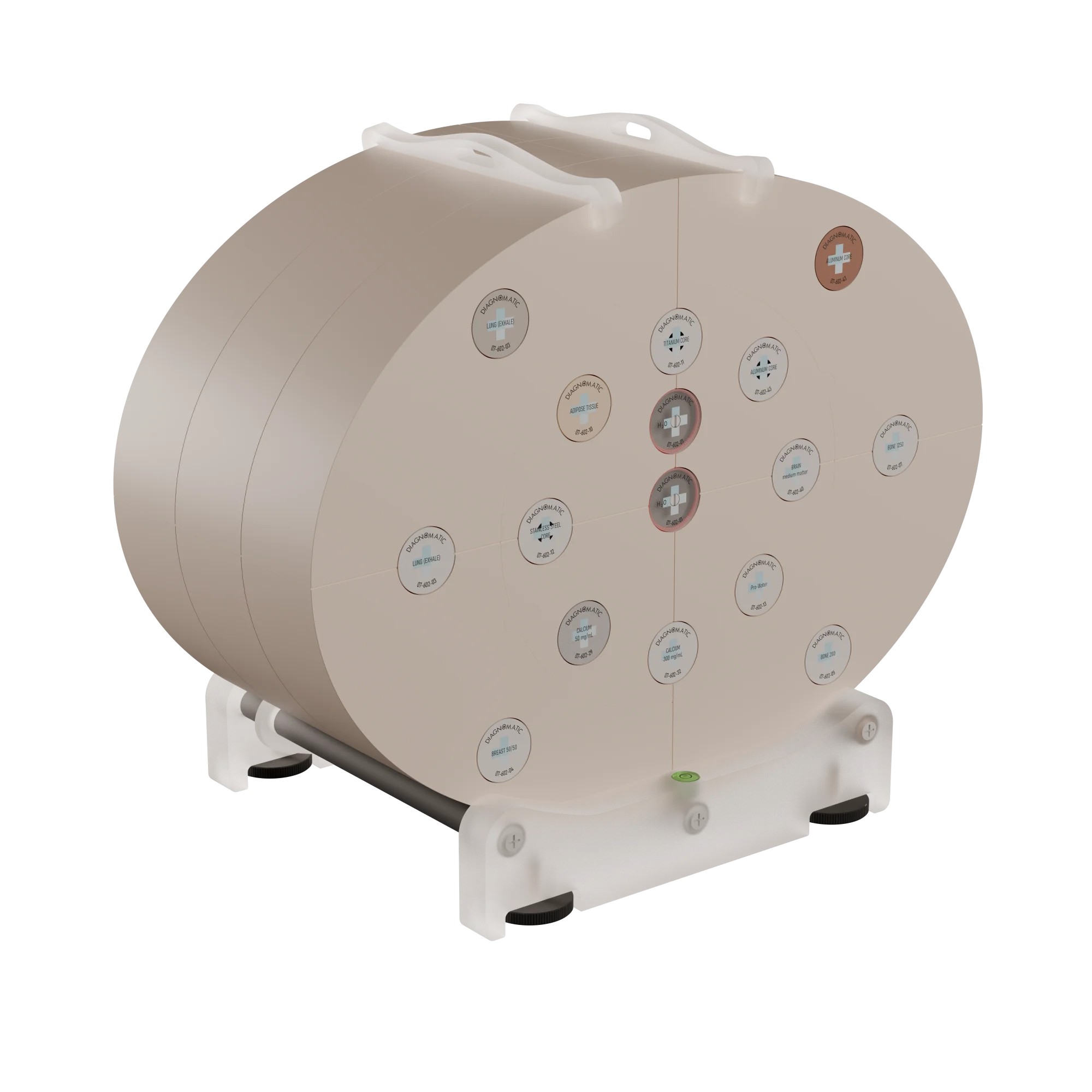

07-602 head insert, and body segmented into 3 × 55 mm sections
- Electron Density Head Insert: Ø 200 mm x 165 mm (3x 55 mm)
- Electron Density Body without Head Insert: 300 mm x 400 mm x 165 mm (3x 55 mm)
- list of electron density plugs Ø 30 mm x 165 mm:
Lung (inhale), Lung (exhale), Adipose tissue, Breast (50% gland / 50% adipose tissue), Pro water, Brain (gray matter), Brain (white matter), Brain (medium matter), Liver, Calcium 50 mg/mL, Bone 200, Calcium 300 mg/mL, Bone 1250, Water sample and optional titanium, steel or aluminum core - stand
- carrying case

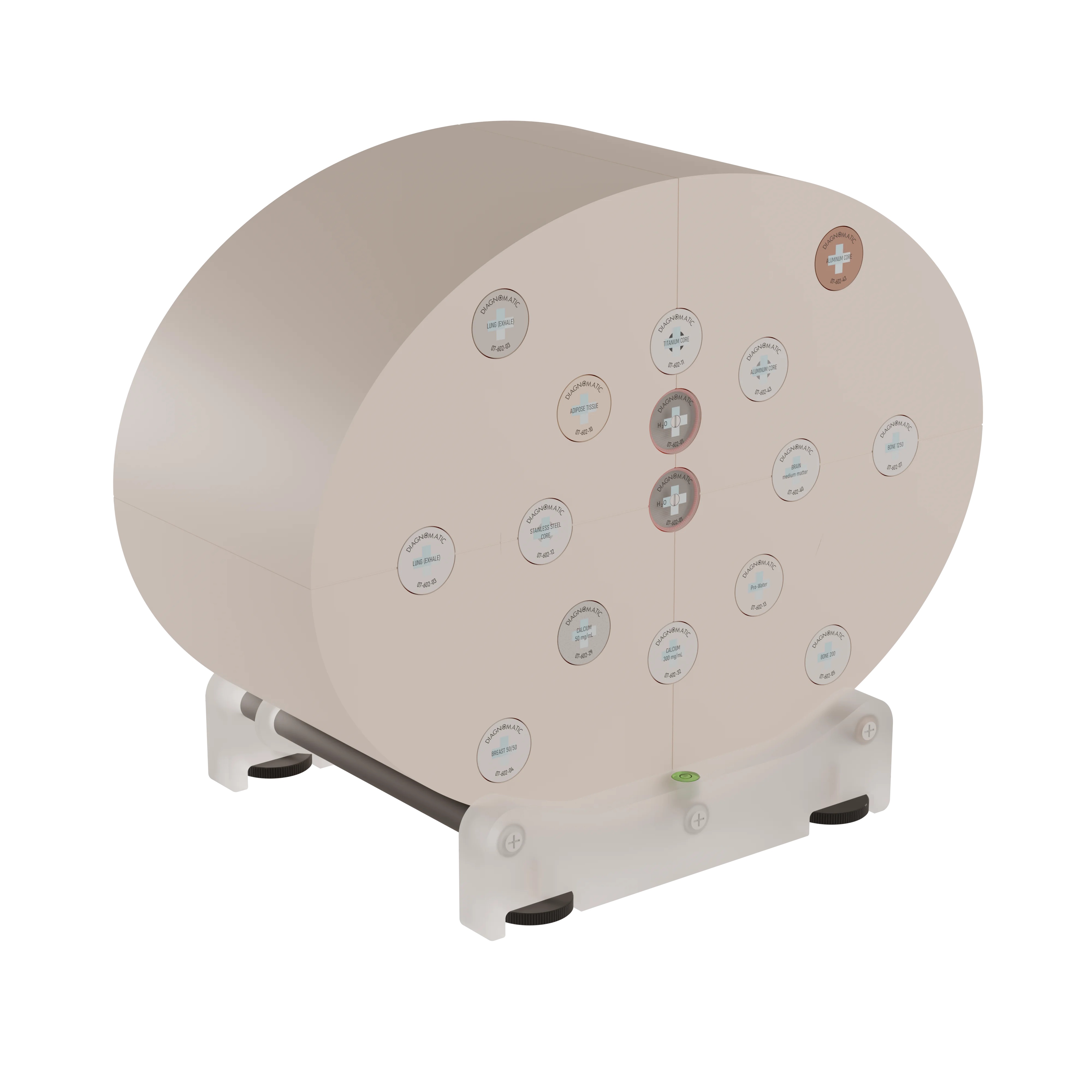

07-602A solid 165 mm insert and body
- Electron Density Head Insert: Ø 200 mm x 165 mm
- Electron Density Body without Head Insert: 300 mm x 400 mm x 165 mm
- list of electron density plugs Ø 30 mm x 165 mm:
Lung (inhale), Lung (exhale), Adipose tissue, Breast (50% gland / 50% adipose tissue), Pro water, Brain (gray matter), Brain (white matter), Brain (medium matter), Liver, Calcium 50 mg/mL, Bone 200, Calcium 300 mg/mL, Bone 1250, Water sample and optional titanium, steel or aluminum core - stand
- carrying case
The values shown in the table are example values only. Each product is supplied with its own certificate containing the actual product-specific data.
| Material | Physical Density | Electron Density Relative to Water |
|---|---|---|
| Lung (inhale) | 0.24 | 0.23 |
| Lung (exhale) | 0.67 | 0.65 |
| Adipose tissue | 0.93 | 0.90 |
| Breast 50/50 | 0.98 | 0.96 |
| Pro Water | 1.03 | 1.00 |
| Brain, gray matter | 1.09 | 1.07 |
| Brain, white matter | 1.07 | 1.06 |
| Brain, medium matter | 1.08 | 1.07 |
| Liver | 1.06 | 1.01 |
| Calcium 50 mg/mL | 1.16 | 1.09 |
| Bone 200 | 1.19 | 1.15 |
| Calcium 300 mg/mL | 1.39 | 1.29 |
| Bone 1250 | 1.80 | 1.66 |
| Water sample | — | — |
Features and Test References
- Complies with:
- IEC 61223-3-5
- IEC 61223-2-6
- AAPM guidelines
- ACR guidelines
- 21CFR 1020.33 specifications - CE marked
- Includes a manual covering the tests, result evaluation and recording.
