Pro-RT ED
Electron Density Phantom - Diagnomatic by Pro-Project - 07-601

Pro-RT ED from Diagnomatic by Pro-Project provides head and body geometries with tissue-equivalent plugs for CT-number-to-electron-density calibration.

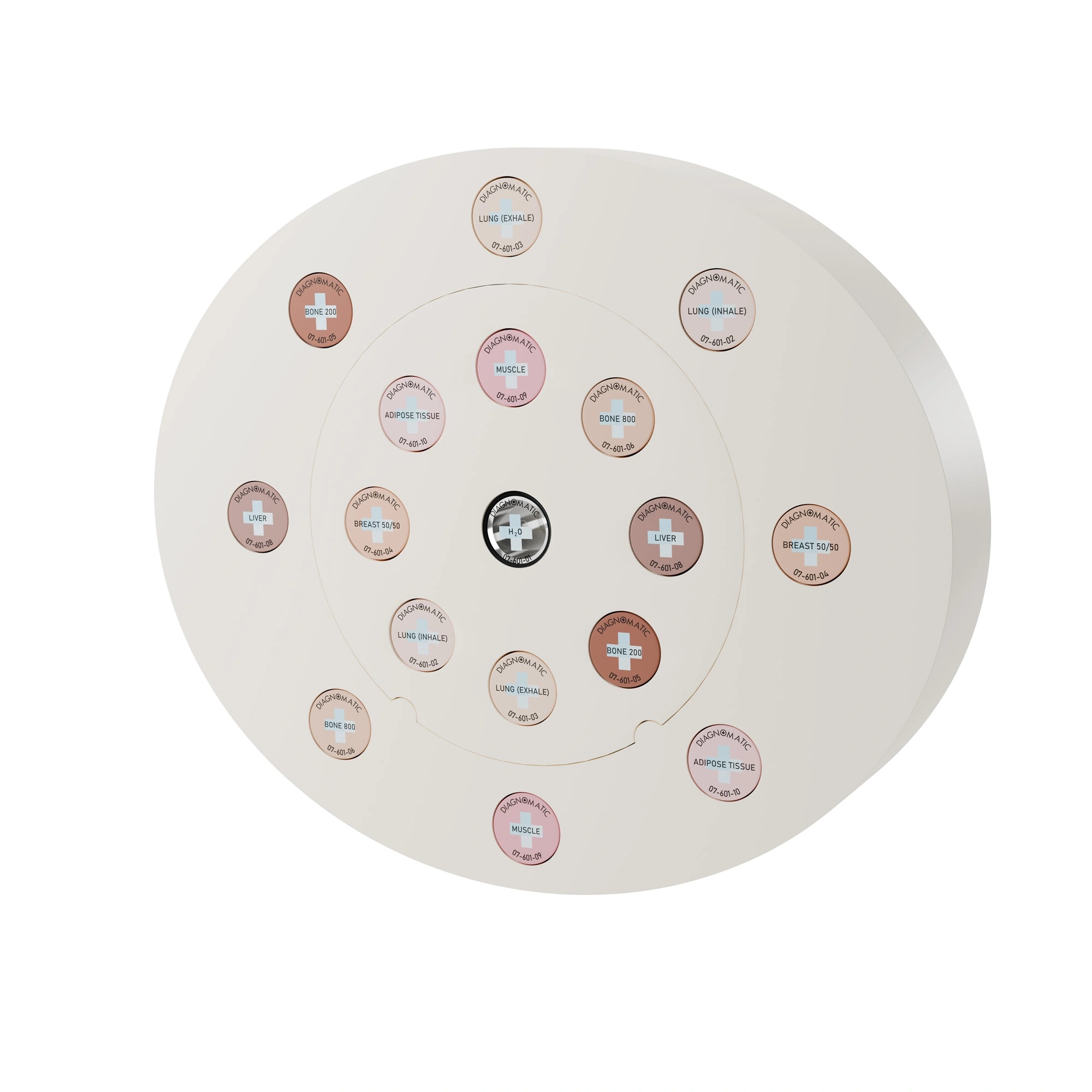

An elliptical thick disk with 8 holes arranged around it with cylindrical plugs, and a circular module in the middle that contains 9 holes with plugs.
An elliptical thick disk with 8 holes arranged around it with cylindrical plugs, and a circular module in the middle that contains 9 holes with plugs.

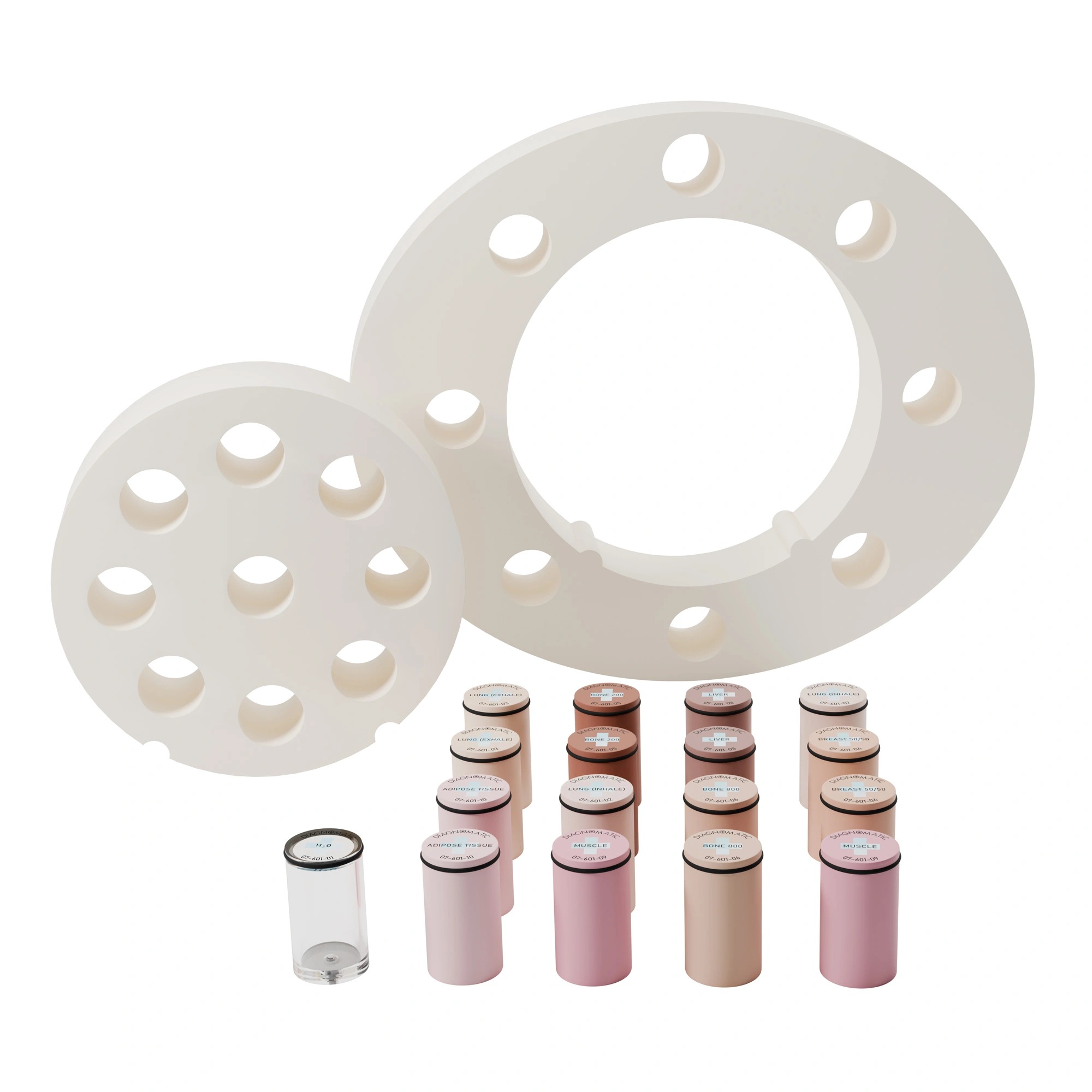

A standing elliptical thick disc with 8 holes around it and a large round hole in the middle, next to it there is a round module with 8 holes around it and one in the middle, 17 cylindrical plugs are standing in front of them in 4 rows.
A standing elliptical thick disc with 8 holes around it and a large round hole in the middle, next to it there is a round module with 8 holes around it and one in the middle, 17 cylindrical plugs are standing in front of them in 4 rows.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
07-601Pro-RT ED

Specifications

  • Electron Density Head Insert: Ø 180 mm x 50 mm
  • Electron Density Body without Head Insert: 330 mm x 276 mm x 50 mm
  • list of electron density plugs Ø 30 mm x 50 mm: Lung (inhale), Lung (exhale), Breast (50% gland / 50% adipose tissue), Fixed trabecular bone 200, Liver, Muscle, Adipose tissue, Fixed dense bone 800, Fixed dense bone 1250, Water-filled plug and optional titanium, steel or aluminium core
  • stand
  • carrying case

Features and Test References

  • complies with:
    - IEC 61223-3-5
    - IEC 61223-2-6
    - AAPM guidelines
    - ACR guidelines
    - 21CFR 1020.33 specifications
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
