Pro-RT AlignCube 6DoF
6DoF Treatment Couch Test Plate - Diagnomatic by Pro-Project

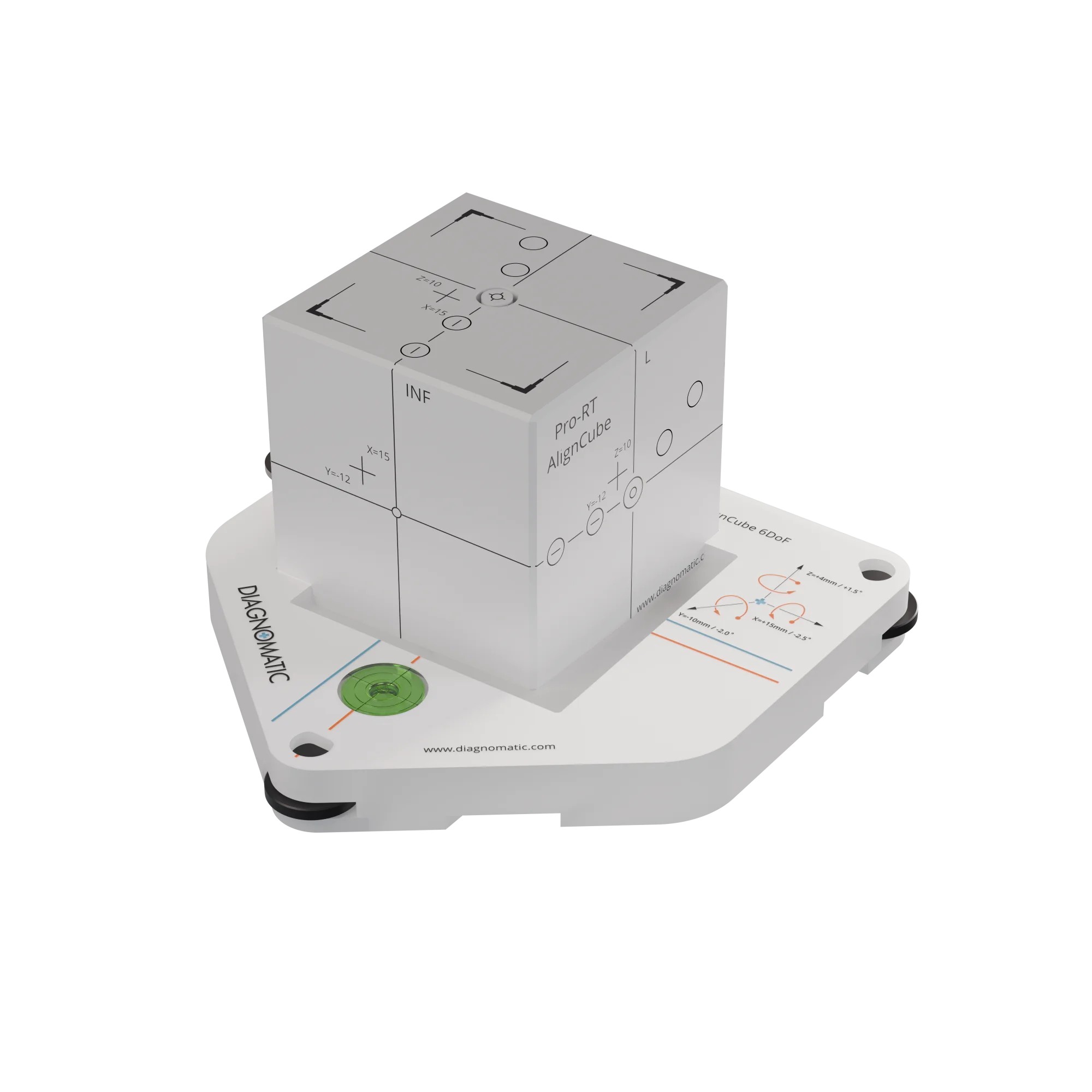

Pro-RT AlignCube 6DoF from Diagnomatic by Pro-Project provides reference and offset positions for checking treatment couch translations and rotations with the separately sold AlignCube phantom.
Click a photo or illustration to enlarge it.
It can be used to test
- 6DoF table correction accuracy
- SGRT systems
- automatic couch shift and rotation adjustment
- phantom positioning repeatability
- image-guided positioning workflows
Specifications

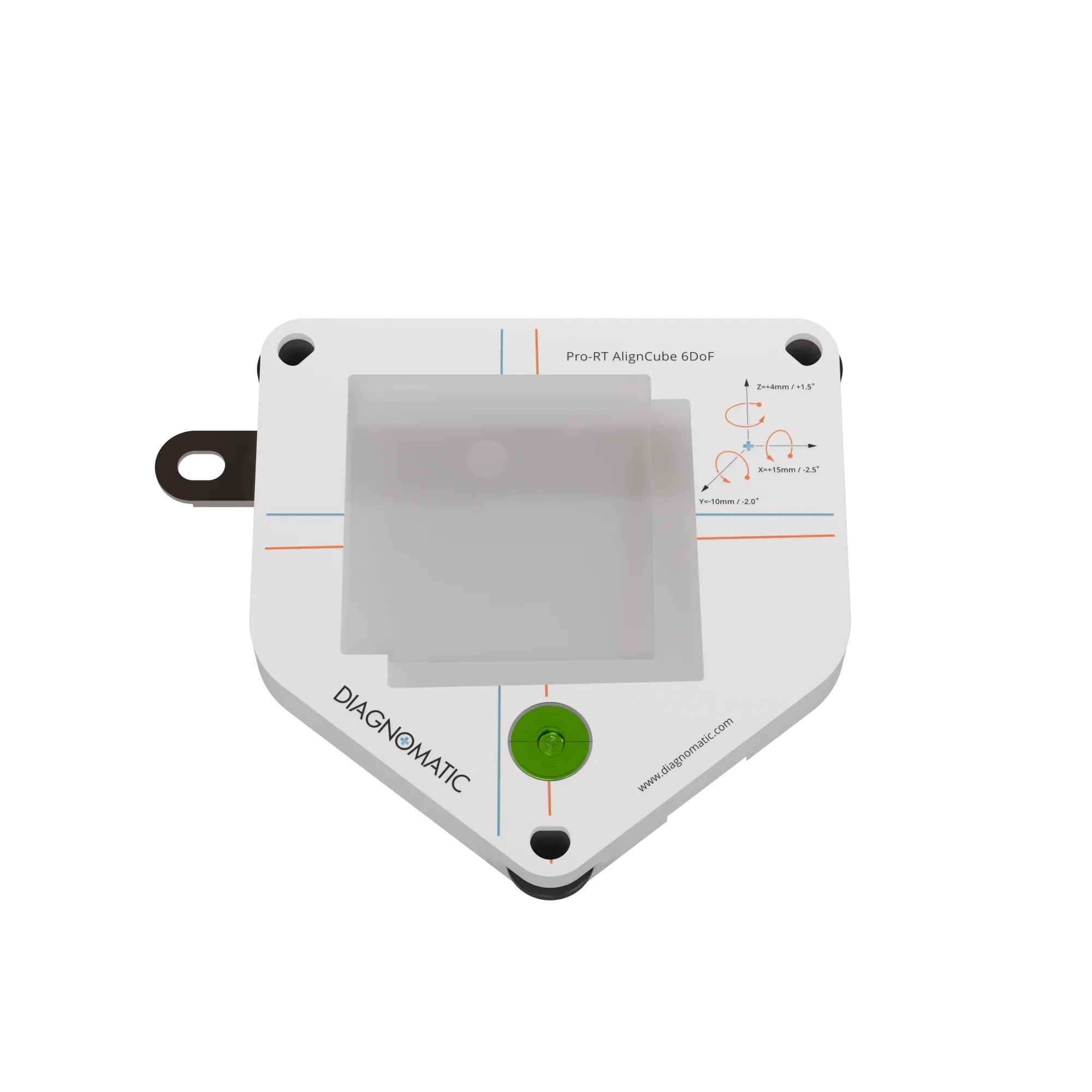

- dimensions 230 x 230 x 30 mm
- material: PMMA
- color: white
- external markings of the central and offset position
- spirit level
Features and Test References
- CE marked
- Includes a manual covering the tests, result evaluation and recording.
- The Pro-RT AlignCube 6DoF Plate is designed to support QA procedures consistent with AAPM TG-142 recommendations for image-guided positioning/repositioning and treatment couch correction verification.
Reference and Offset Positions

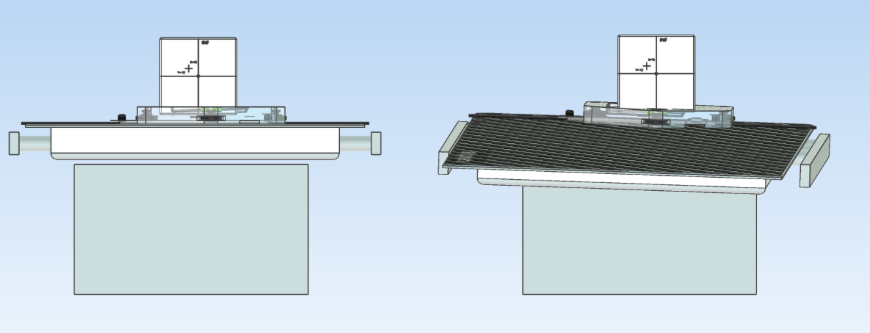

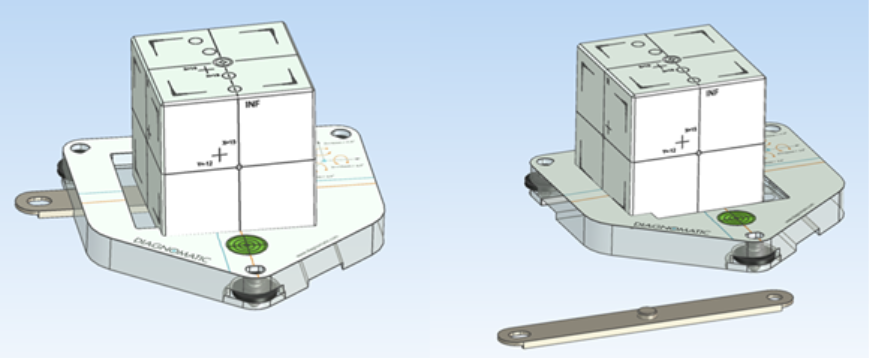

Use the left cutout as the upright reference and the right cutout for the defined offset. Following CBCT verification, the couch correction can be compared with the reference position.
At the 12 o'clock mounting orientation, the specified offsets are:
| Axis | Translation | Rotation |
|---|---|---|
| X | +15 mm | -2.5° |
| Y | -10 mm | -2.0° |
| Z | +4 mm | +1.5° |

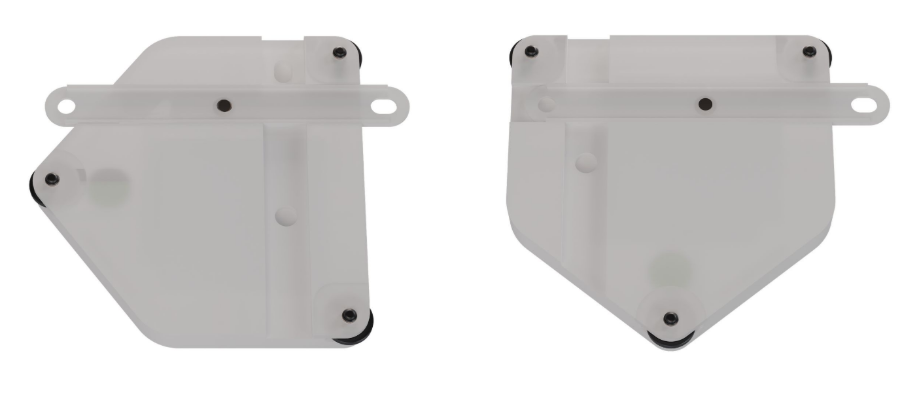

The underside mounting cutouts allow 12, 3, 6 and 9 o'clock orientations. A compatible adapter connects the plate to the treatment couch. The plate is an optional accessory; the AlignCube phantom is sold separately.

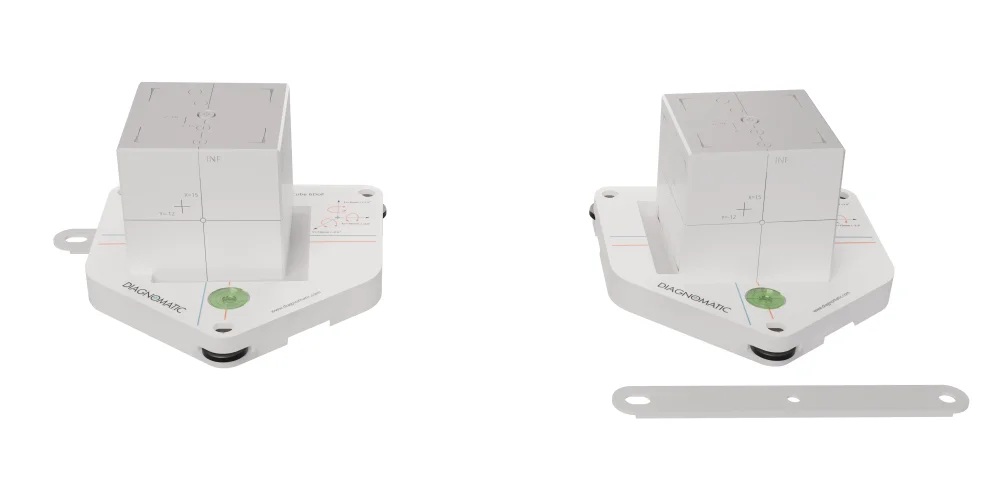

Additional Product Illustrations
