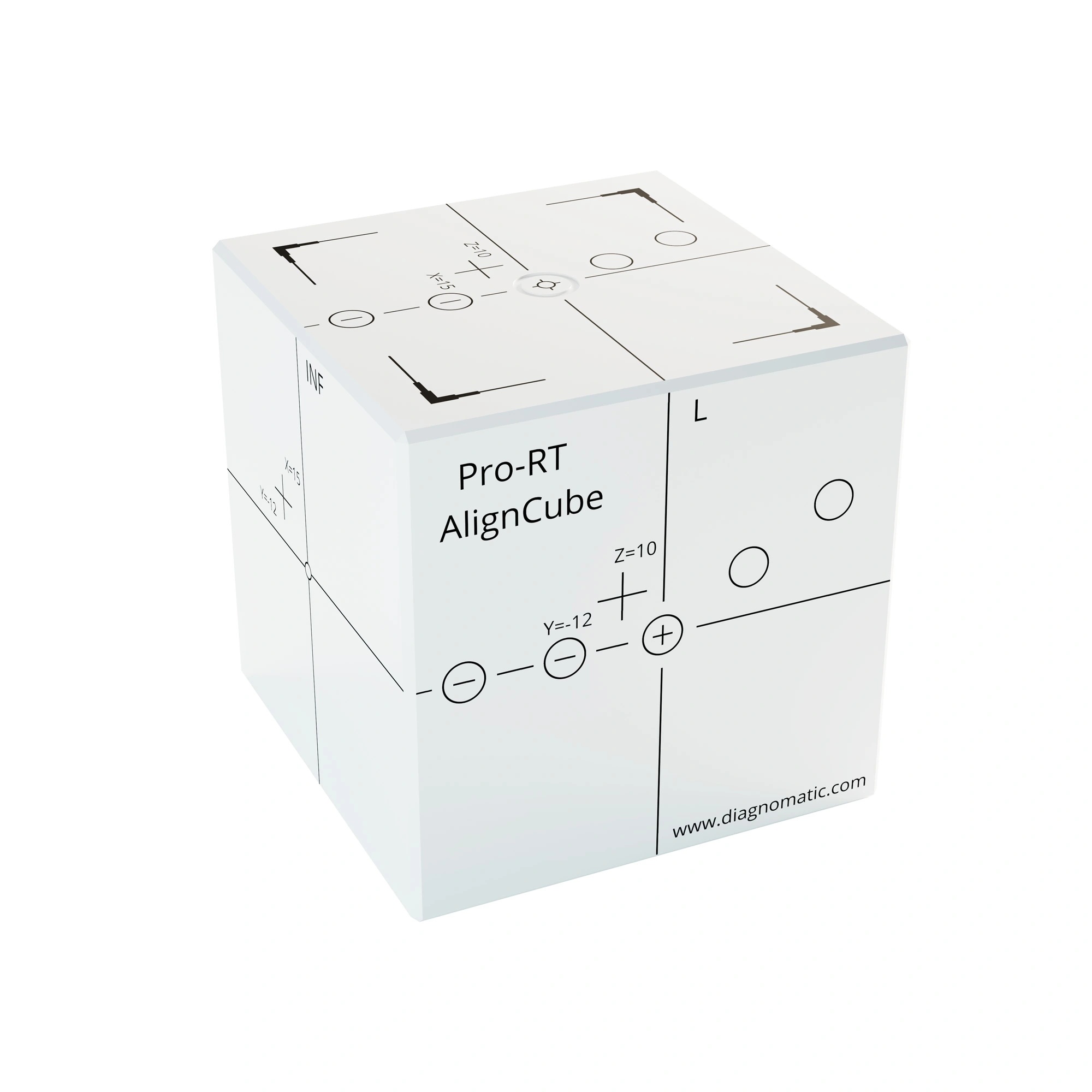

Pro-RT AlignCube
Radiotherapy Alignment Phantom - Diagnomatic by Pro-Project - 07-401
Pro-RT AlignCube from Diagnomatic by Pro-Project checks the relationship between imaging and treatment isocenters for radiotherapy positioning quality assurance.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 07-401 | Pro-RT AlignCube |
It can be used to test
- imaging systems (CBCT, 2D kV, 2D MV) and LINAC isocentre alignment
- automatic couch shift adjustment
- laser to isocentre coincidence
- SGRT systems
- optical distance indicator accuracy

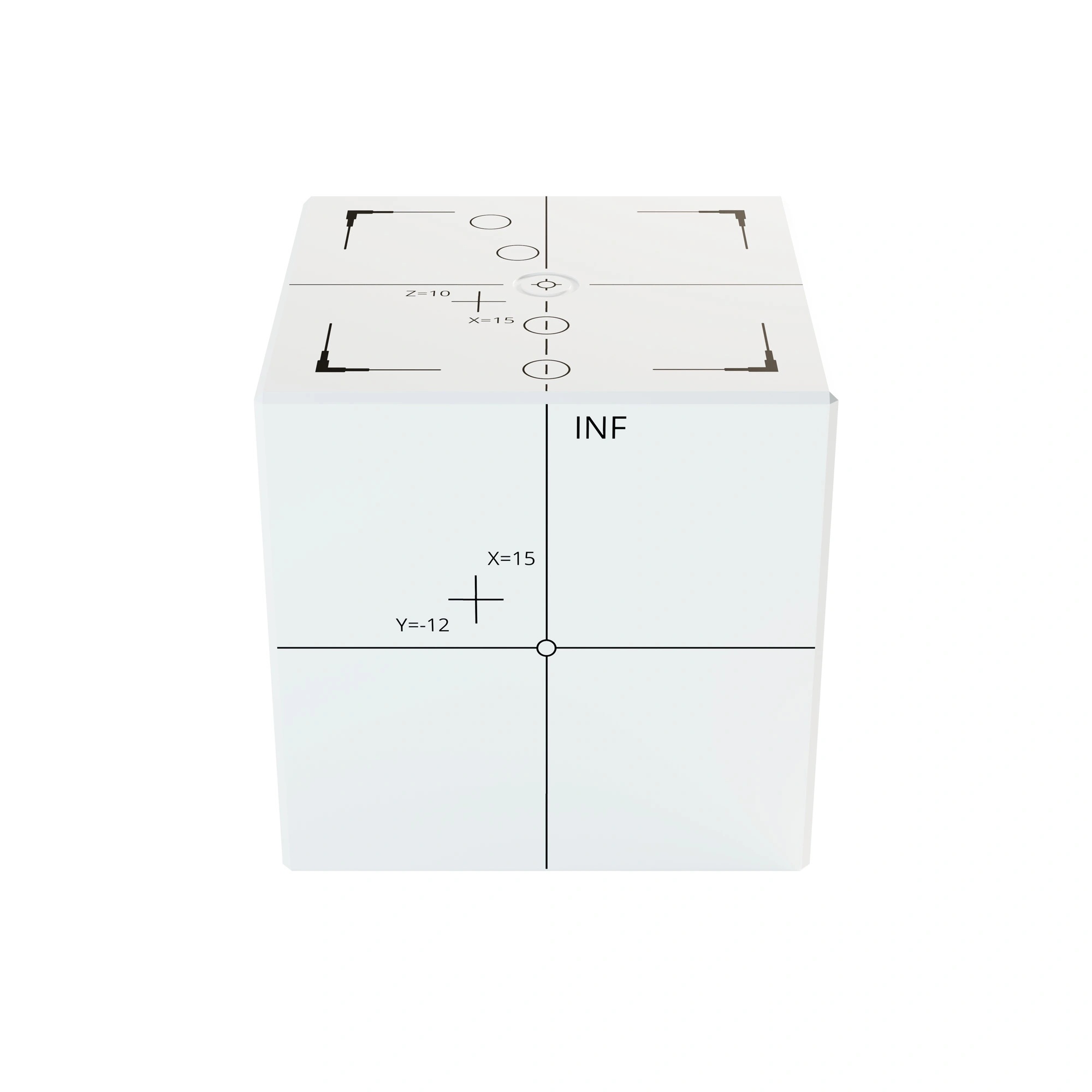

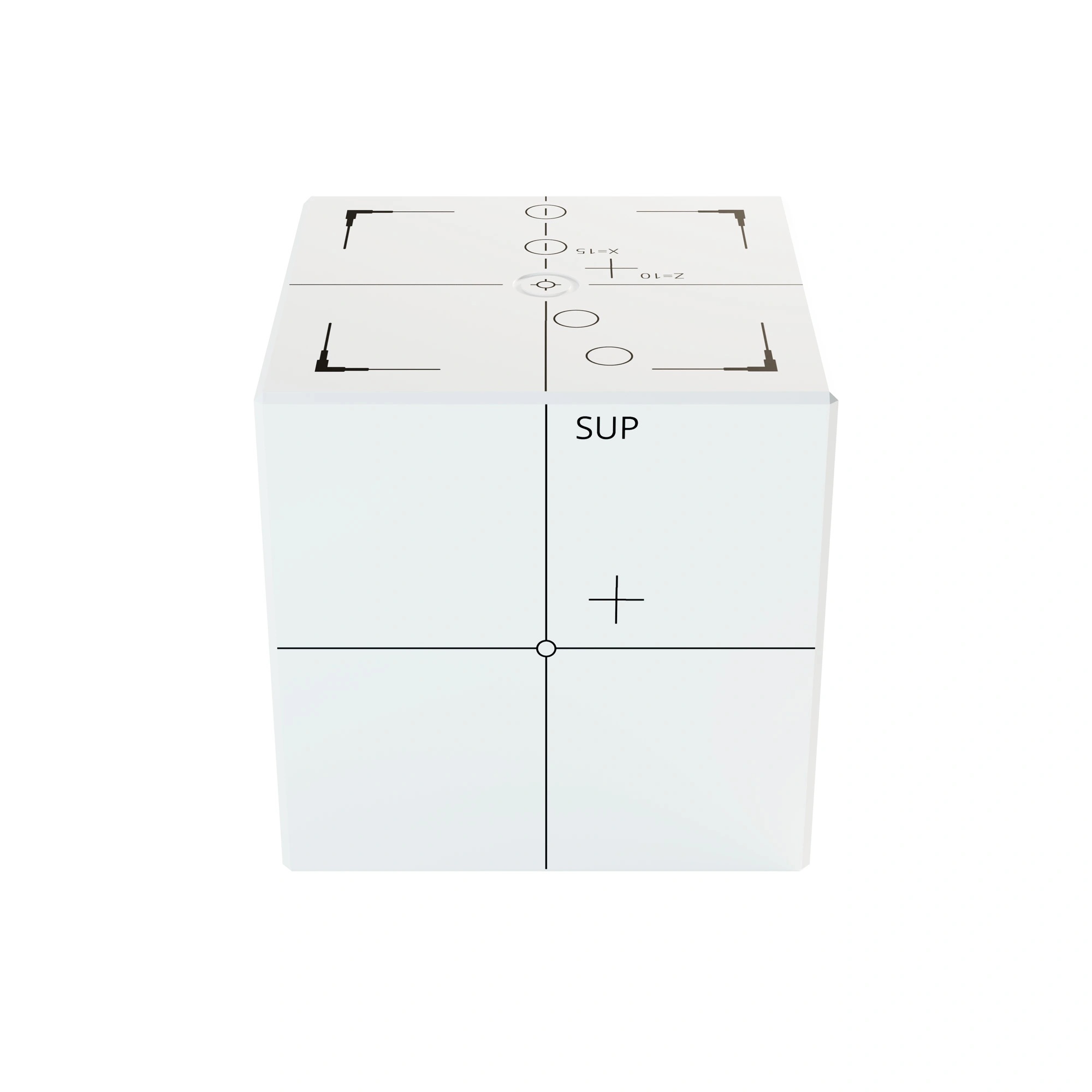

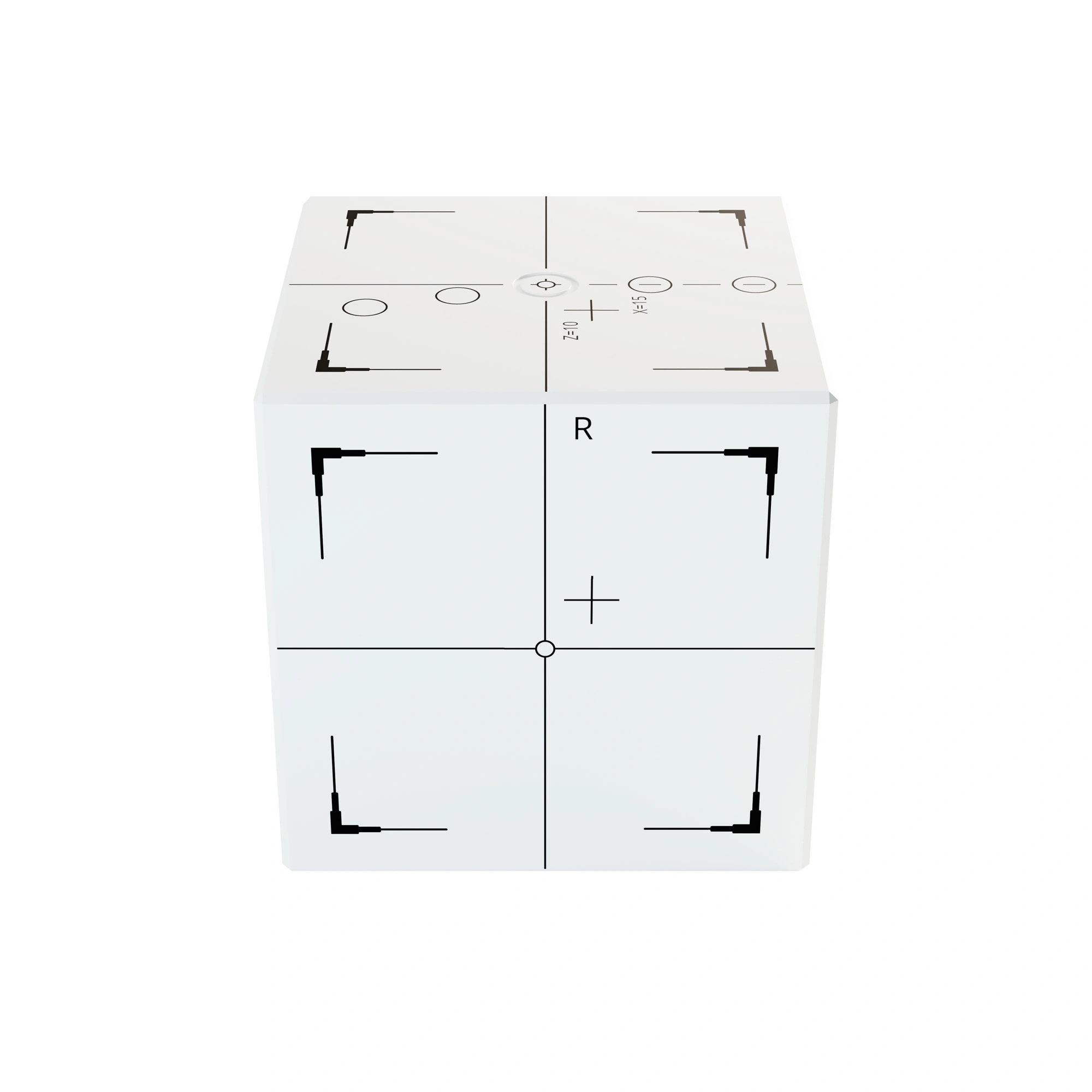

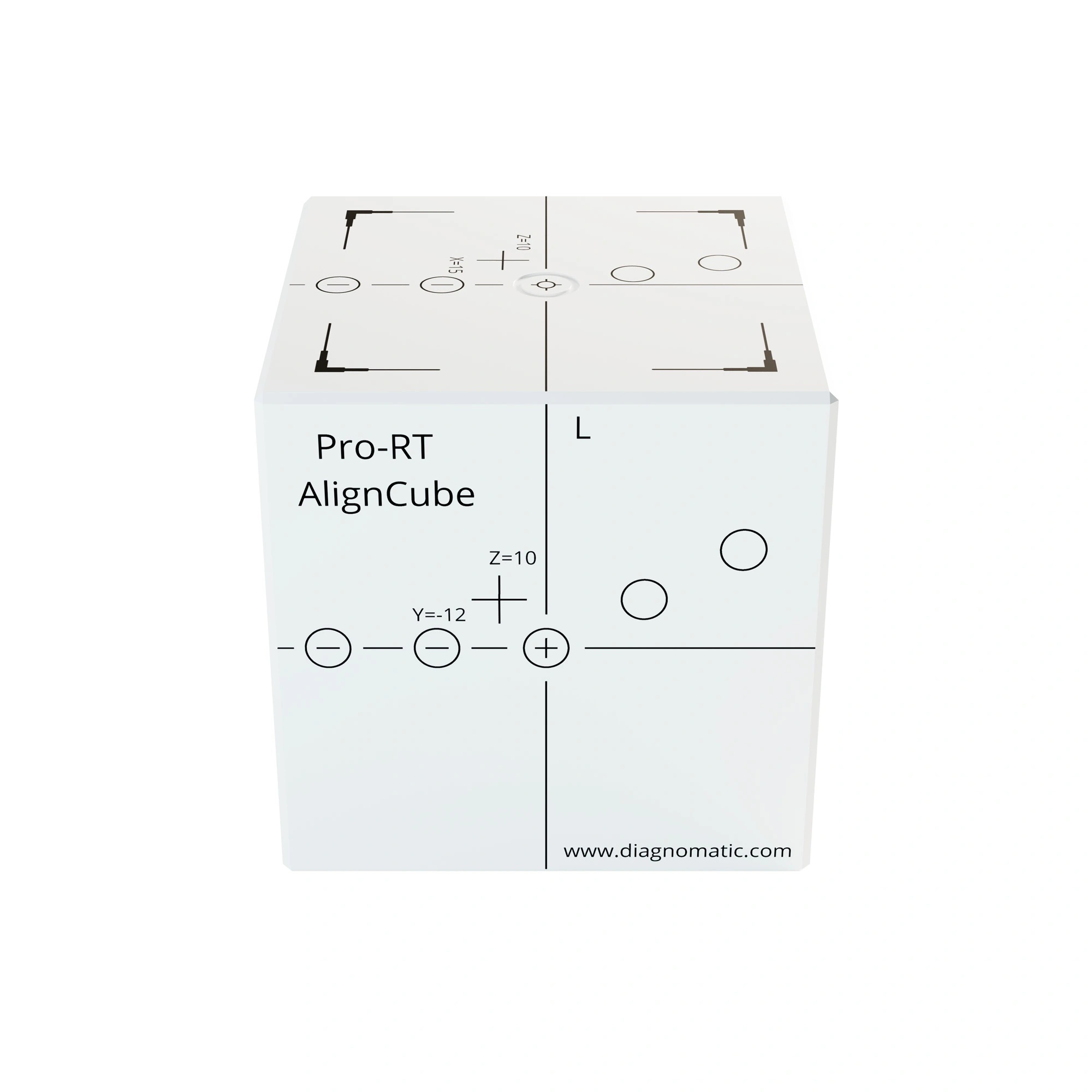

Specifications
- dimensions 120 x 120 x 120 mm
- material: PMMA
- color: white

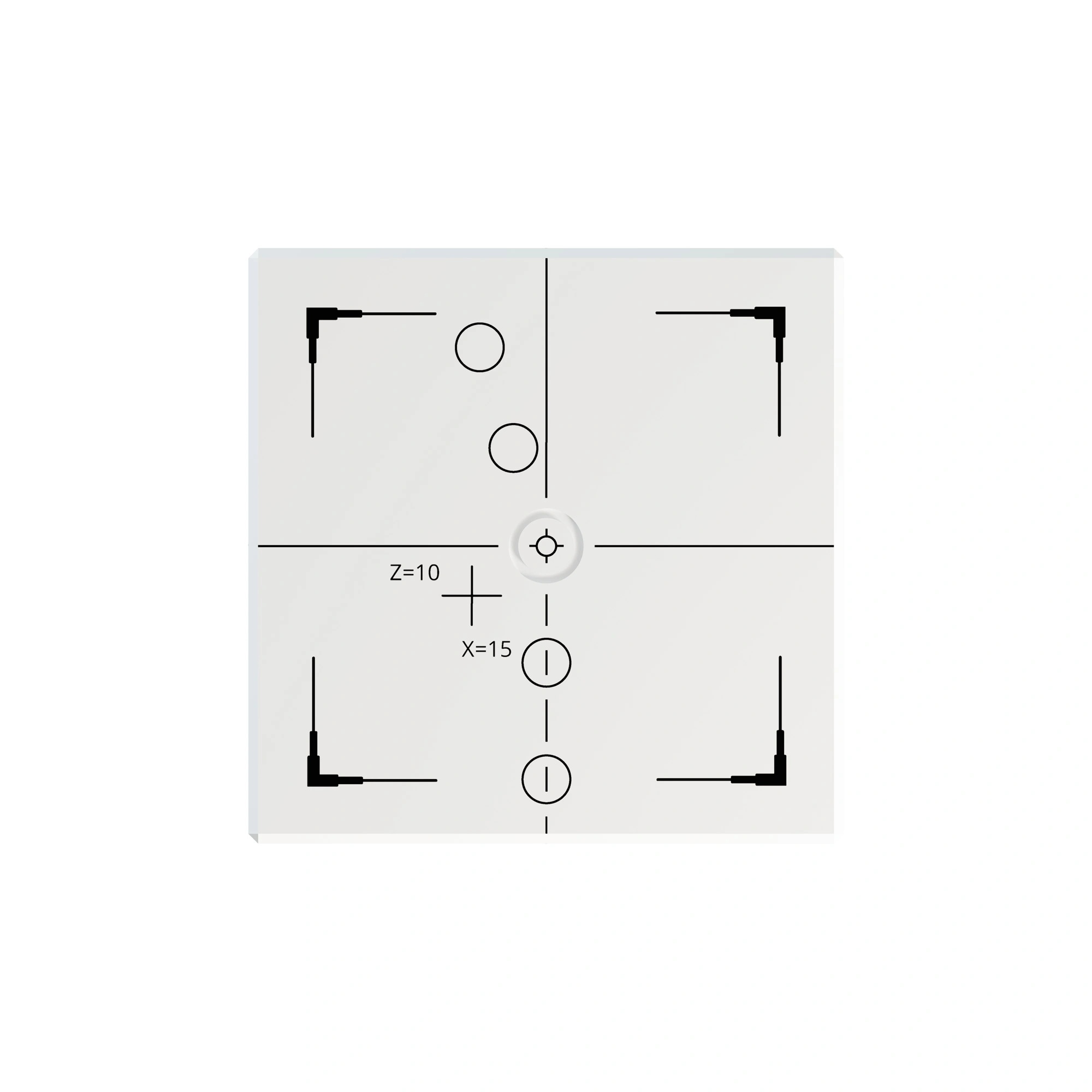

- central marker fi 8 mm
- 4 markers fi 6 mm in an asymmetric arrangement
- external markings of the central and offset position
- markers for the light field evaluation
- optional carrying case
Accessory
Features and Test References
- CE marked
- Includes a manual covering the tests, result evaluation and recording.
Pro-RT AlignCube Demonstration
