Pro-MAM PRO kit
Mammography Quality Assurance Kit - Diagnomatic by Pro-Project - 03-011

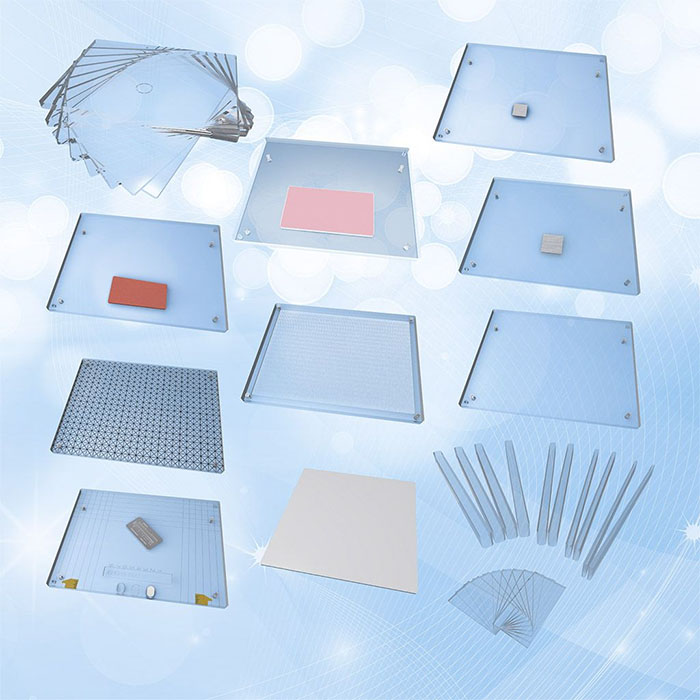

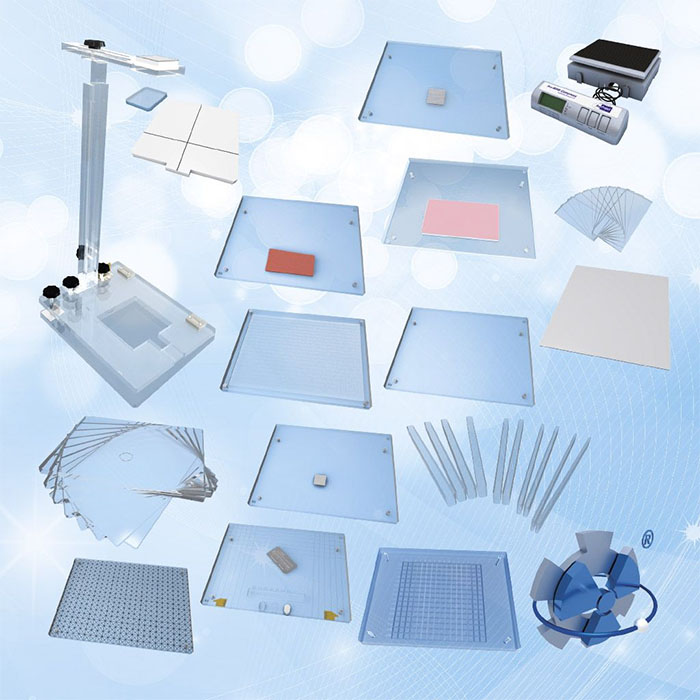

Pro-MAM PRO kit from Diagnomatic by Pro-Project combines digital mammography and contrast-detail phantoms with test tools and analysis software.
Click a photo or illustration to enlarge it.
Models and Ordering
| Part number | Model / configuration |
|---|---|
| 03-011 | Pro-MAM PRO kit |

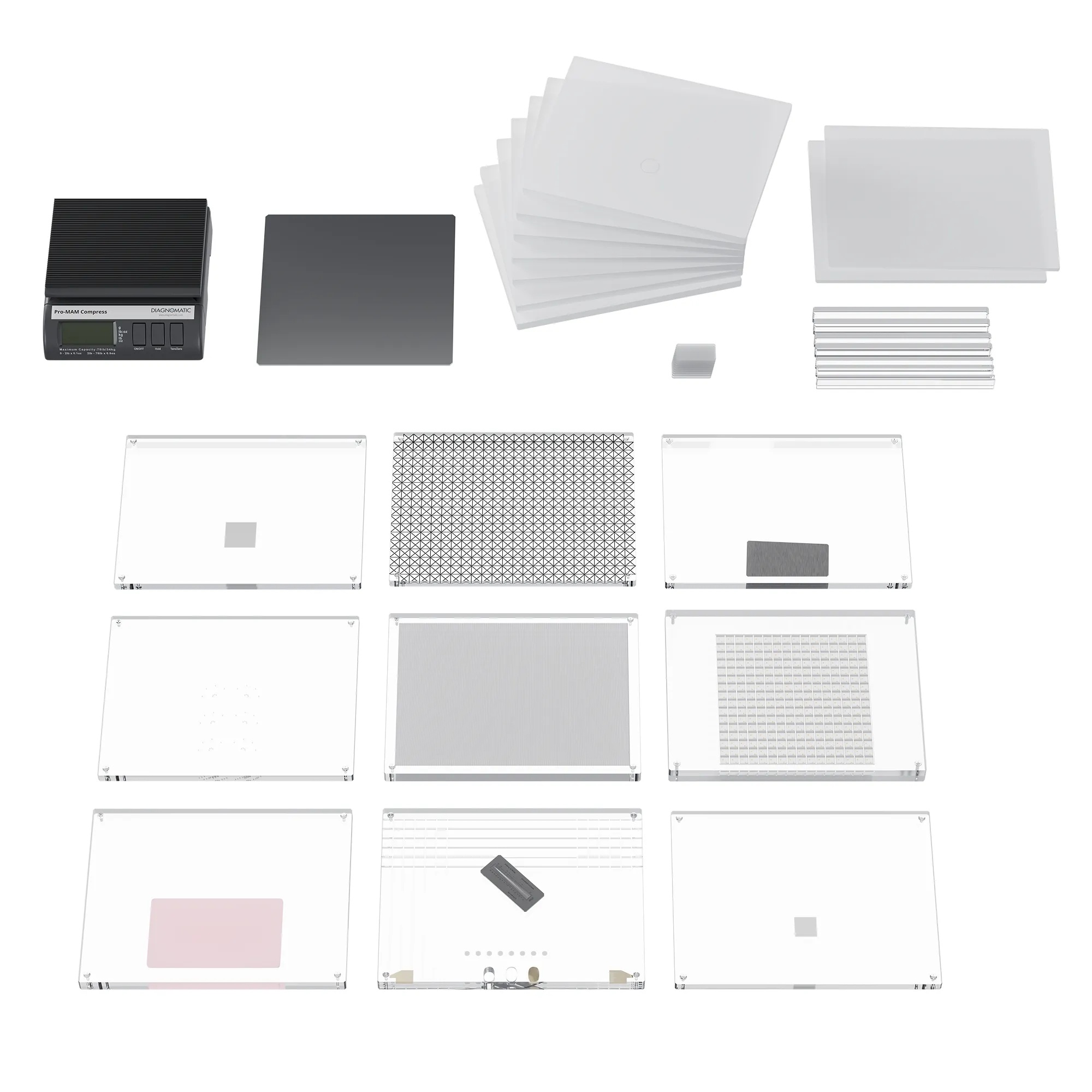

Included Components
- Pro-DigiMAM (03-302)
- Pro-MAM Gold

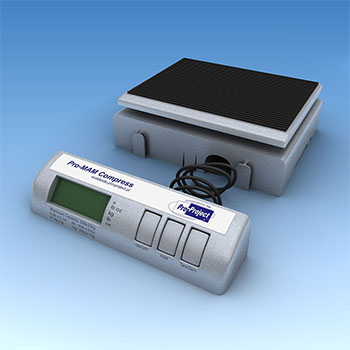

- Pro-MAM Compress (03-103)
- Diagnomatic PRO annual subscription
- carrying case with dedicated foam inlay
The kit can be used to measure
- optical density / luminance in the reference point
- spatial resolution
- threshold contrast visibility
- contrast
- effective radiation field
- AEC tests
- CNR, SNR
- NPS
- MTF
- ghosting
- filaments
- artefacts evaluation
- geometric distortion check
- contrast details
Features and Test References
- complies with:
- IEC 61223-3-2
- ”European Guidelines for Quality Assurance in Mammography Screening” - CE marked
- Includes a manual covering the tests, result evaluation and recording.
Learn about Diagnomatic quality assurance software and its image analysis workflow.
