Pro-Dent All PRO kit
Dental Acceptance and Constancy Test Kit - Diagnomatic by Pro-Project - 01-022

Pro-Dent All PRO kit from Diagnomatic by Pro-Project provides phantoms, test tools and software for quality assurance of intraoral, panoramic and dental CT systems.

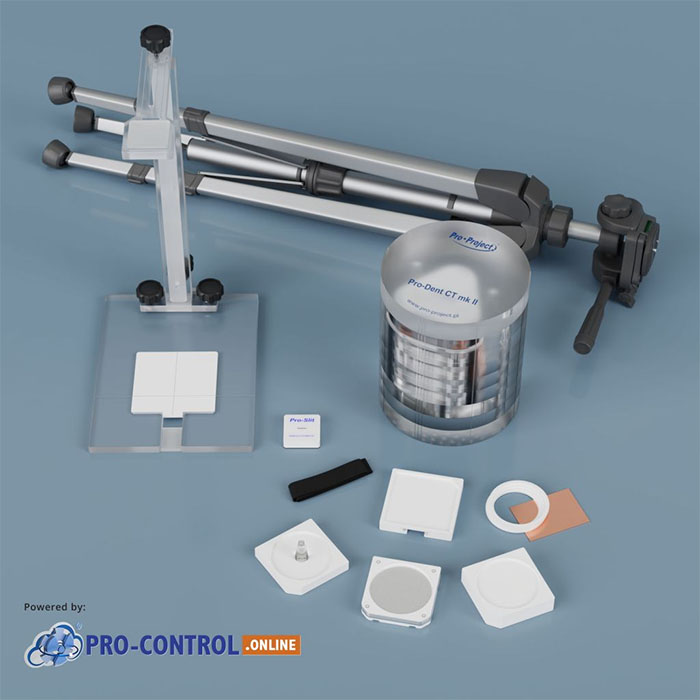

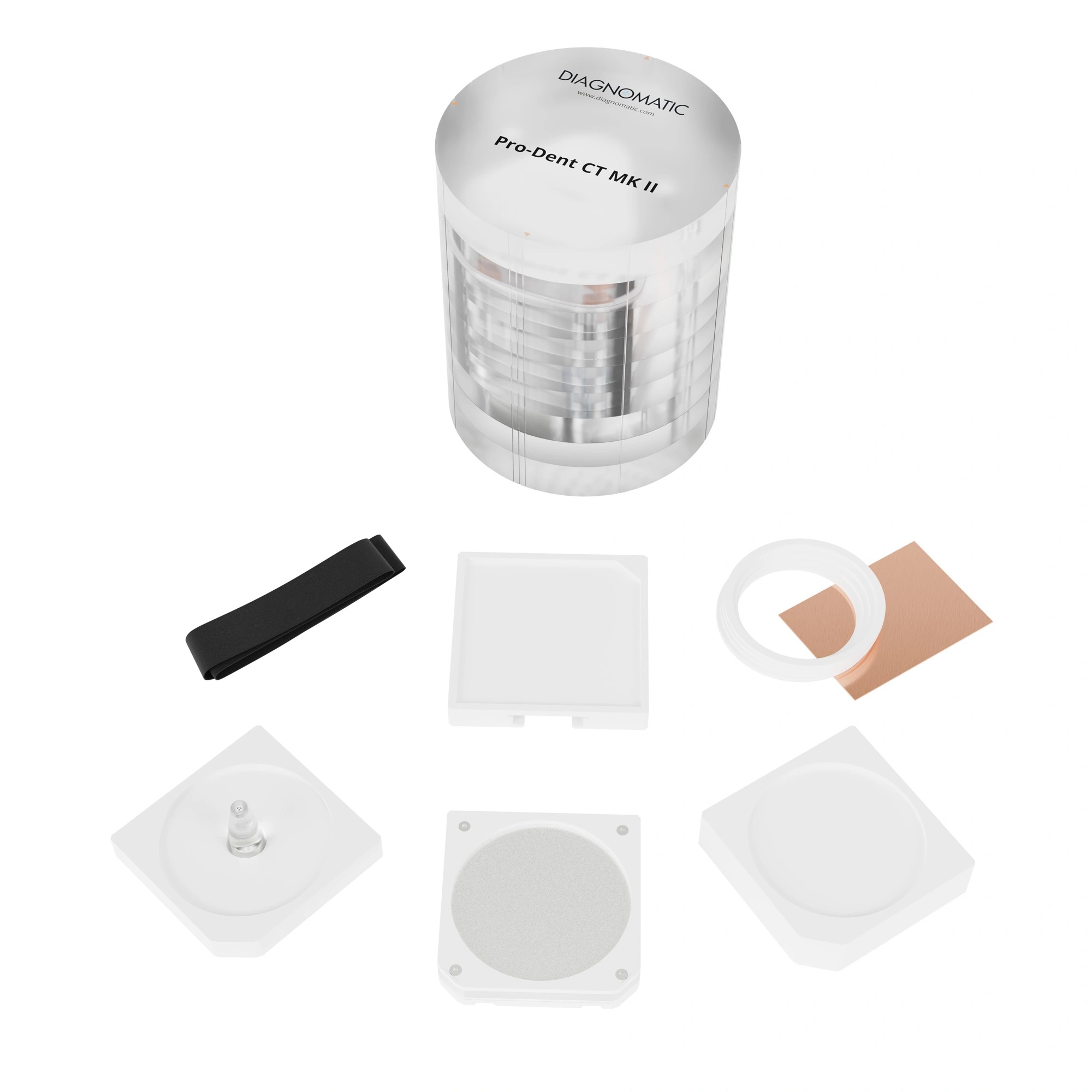

A set made of four square white plastic elements, a cylindrical object transparent made of 9 modules, four white plastic rings, a rectangular copper plate, and an elastic fabric stripe.

Click a photo or illustration to enlarge it.

Models and Ordering

Part number	Model / configuration
01-022	Pro-Dent All PRO kit

Included Components

Pro-Dent set All (01-203)
Pro-Dent CT mk II (01-501)
Diagnomatic PRO annual subscription
carrying cases with dedicated foam inlay

The kit can be used to measure

dose reproducibility
development process stability
alignment and beam geometry
image geometry
pixel (matrix) size
artefacts, noise
beam hardening artefacts
homogeneity
linearity
contrast
high-contrast resolution in XY and Z plane
low-contrast resolution (contrast sensitivity)
Line Spread Function
Point Spread Function
MTF
Contrast To Noise for different materials
focal spot size

Features and Test References

complies with:
- IEC 61223-3-4, IEC 61223-3-5 and IEC 61223-2-7
- DIN 6868-5 and DIN V 6868-151
- ÖNORM S 5240-5 and ÖNORM S 5240-11
CE marked
Includes a manual covering the tests, result evaluation and recording.

Learn about Diagnomatic quality assurance software and its image analysis workflow.
