Pro-Dent Set
Dental X-Ray QA Phantoms - Diagnomatic by Pro-Project - 01-201, 01-203

Pro-Dent Set from Diagnomatic by Pro-Project provides configurable phantoms for checking conventional and digital dental X-ray equipment.

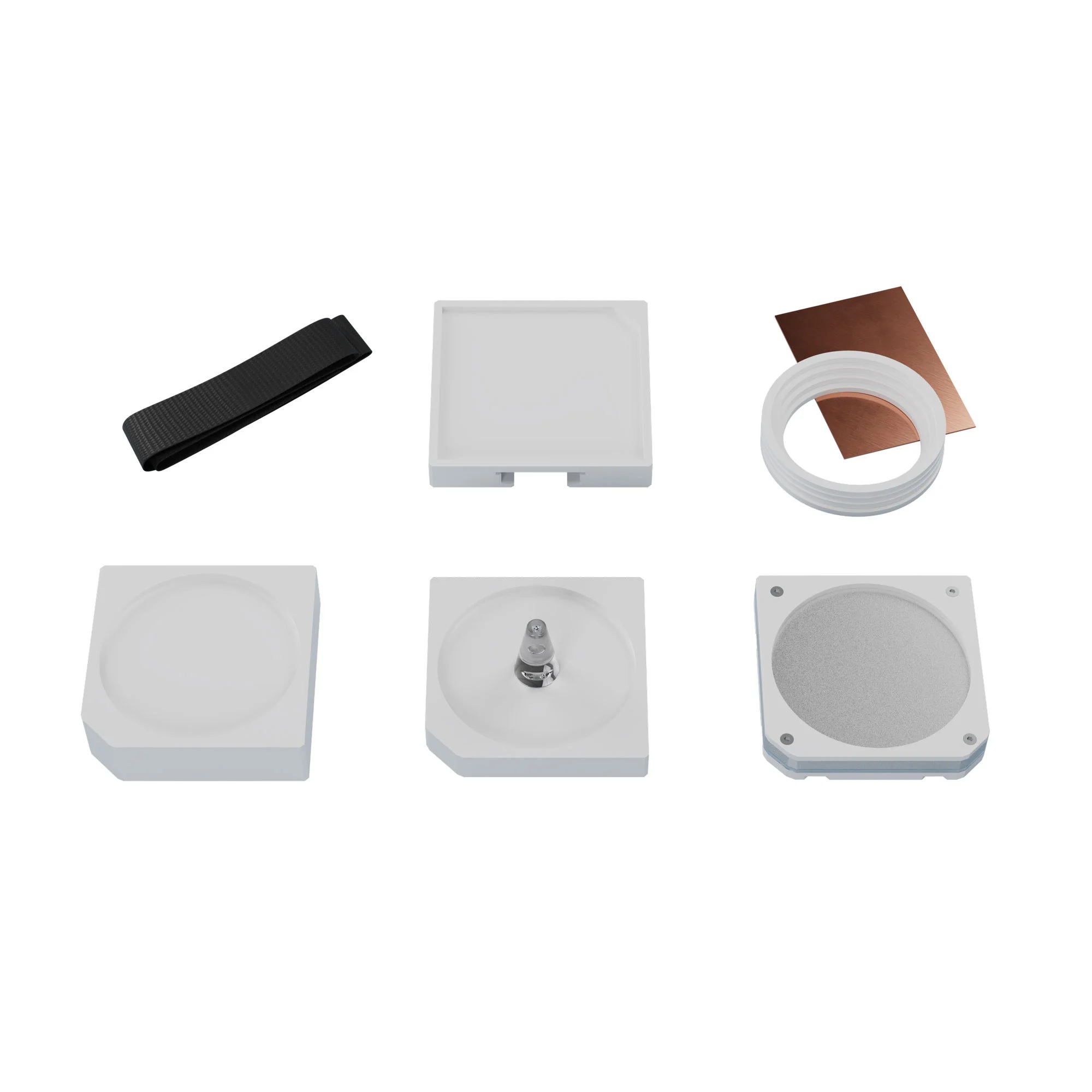

A set made of four square white plastic elements, four white plastic rings, a rectangular copper plate, and an elastic fabric stripe.
A set made of four square white plastic elements, four white plastic rings, a rectangular copper plate, and an elastic fabric stripe.

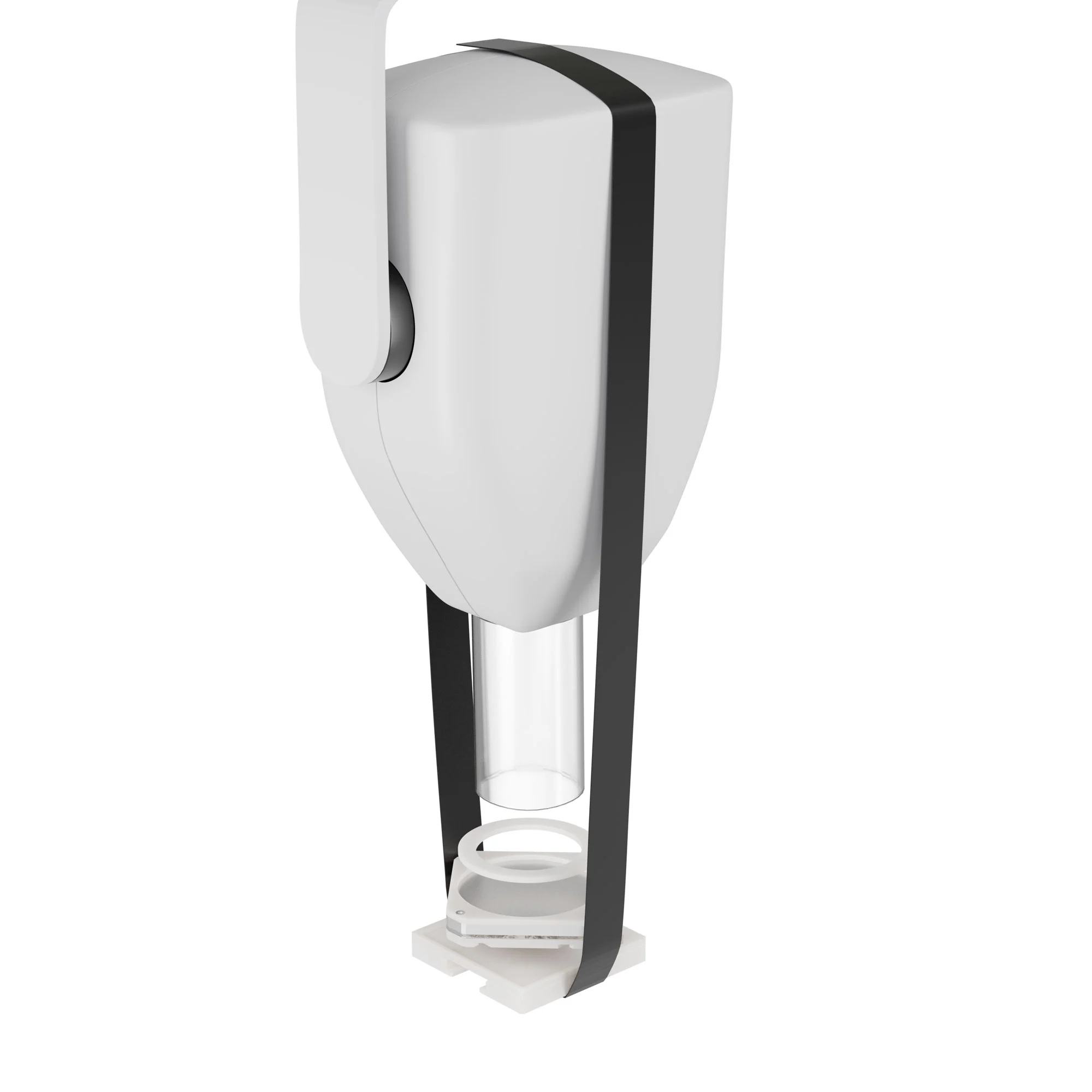

A small plastic square device is attached to a tube with a rubber stripe.
A small plastic square device is attached to a tube with a rubber stripe.

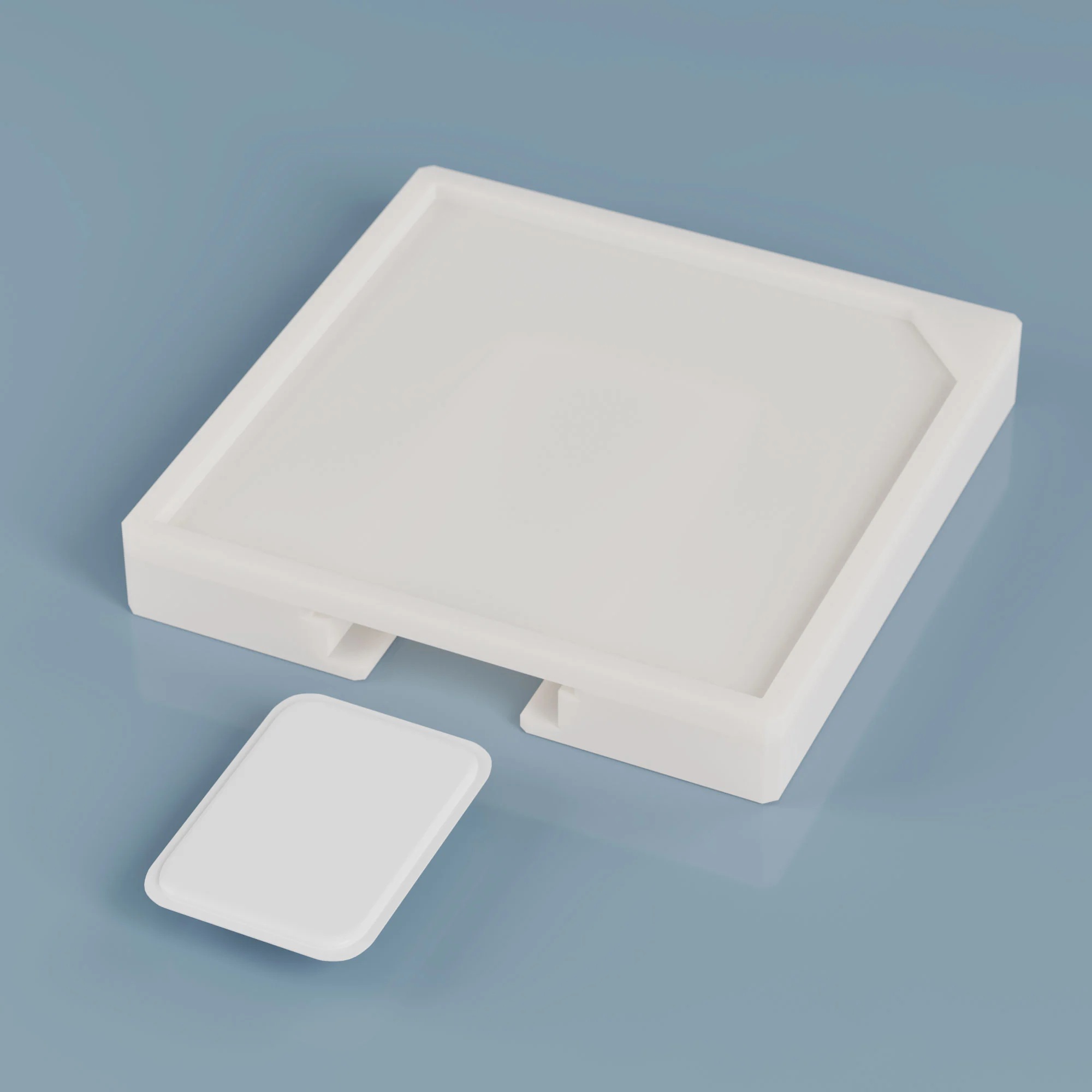

Sliding a small rectangle film to a plastic square base.
Sliding a small rectangle film to a plastic square base.

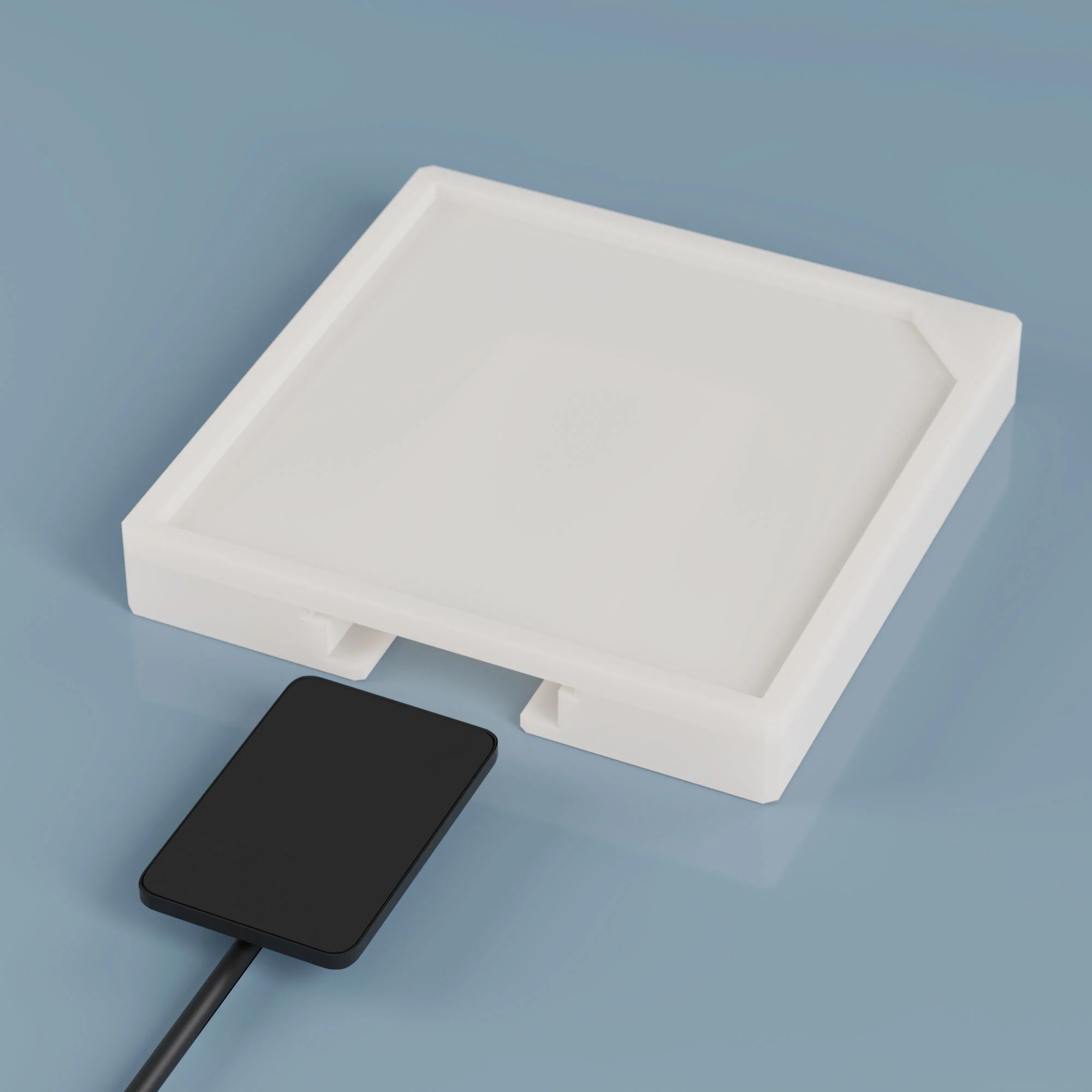

Sliding a small rectangle sensor on a cable to a plastic square base.
Sliding a small rectangle sensor on a cable to a plastic square base.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
01-201intra-oral devices
01-203intra-oral and OPG devices

The following tests can be performed with the Pro-Dent set

  • dose reproducibility
  • developing process stability
  • X-ray beam perpendicularity (range 0° ÷ 1.5°)
  • X-ray beam limitation and alignment (including beam radius measurement)
  • spatial / line pairs resolution (perpendicular, parallel and rotated 45° to the anode-cathode line)
  • low contrast resolution

Specifications

Pro-Dent Alpha phantom

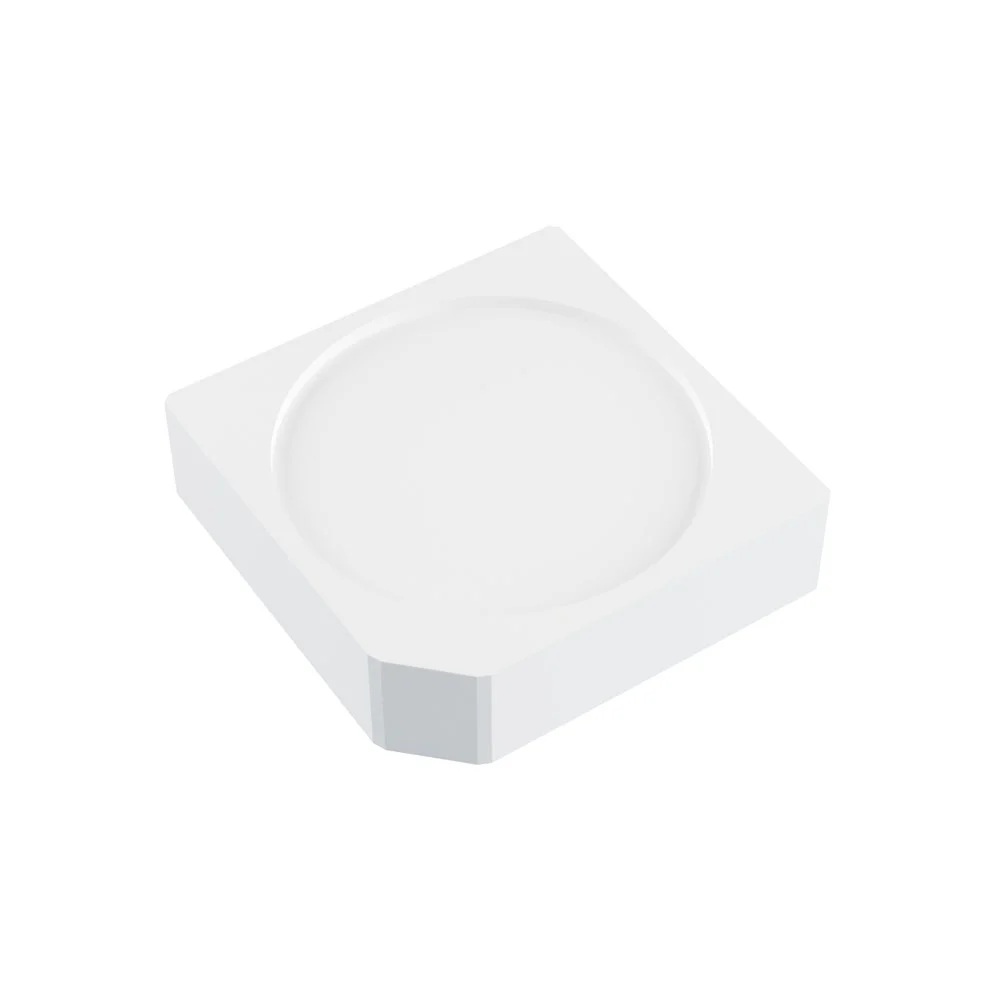

A square, thick plastic device with a circle engraved in the centre and one bevelled edge.
A square, thick plastic device with a circle engraved in the centre and one bevelled edge.
  • 3-level step (the first level is copper foil 0.3 mm thick; the following are polytetrafluoroethylene 8 mm and 16 mm thick)
  • PMMA cover

Pro-Dent Beta phantom (optional)

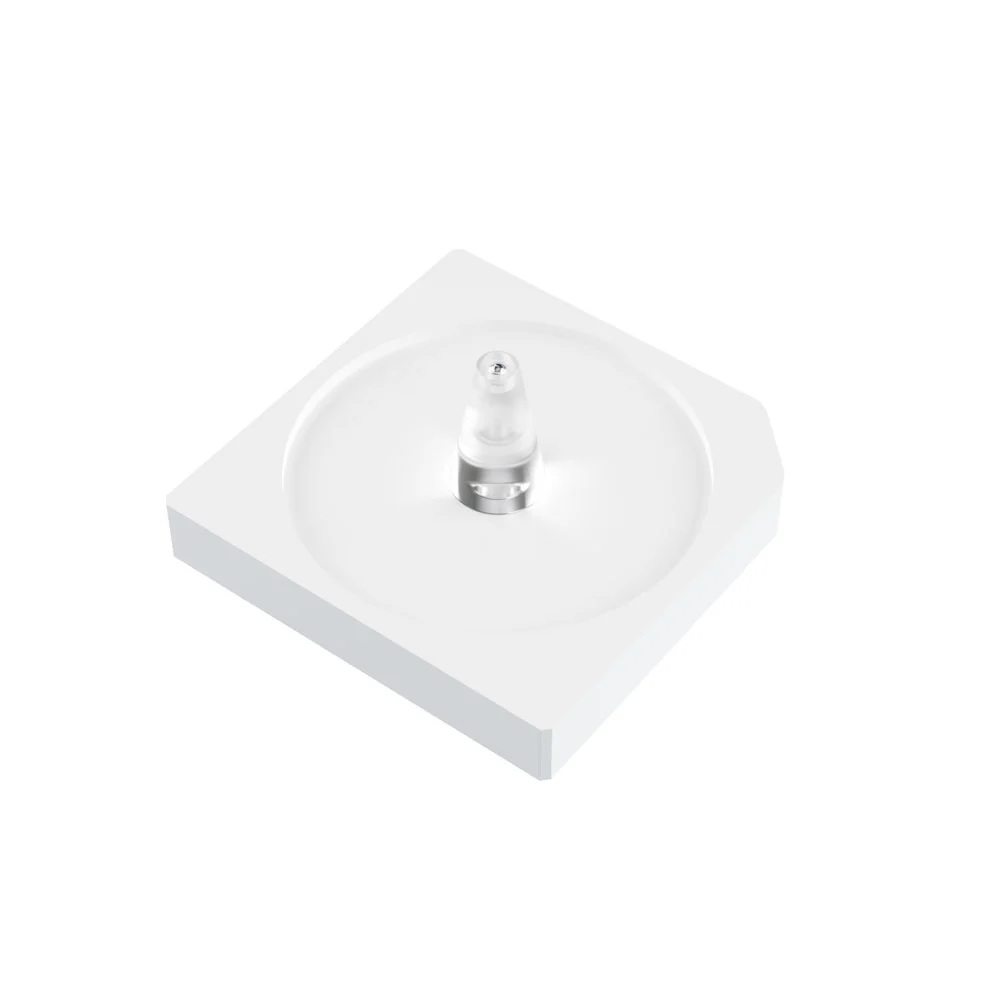

A square plastic device with a circle engraved in the centre, one bevelled edge and a transparent plastic cone in the middle with a small metal ball embedded at the top.
A square plastic device with a circle engraved in the centre, one bevelled edge and a transparent plastic cone in the middle with a small metal ball embedded at the top.
  • cone for checking X-ray beam perpendicularity in the range of 0° ÷ 1.5°
  • pattern for beam radius estimation
  • PMMA cover

Pro-Dent Gamma phantom

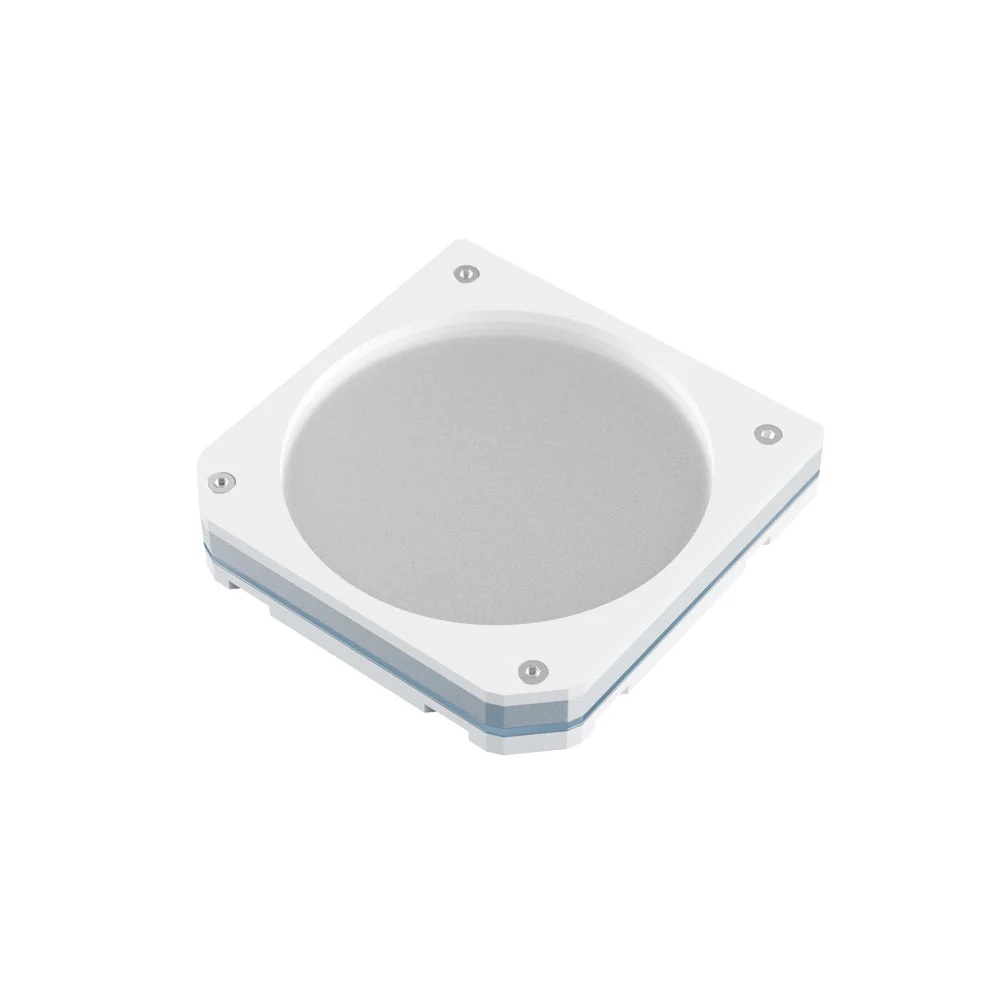

A square device made of four layers of plastic and metal, with a circle engraved on top and two bevelled edges.
A square device made of four layers of plastic and metal, with a circle engraved on top and two bevelled edges.
  • pattern for line pairs resolution evaluation (from 4 to 8 LP/mm)
  • optional second pattern for line pairs resolution evaluation (from 1.6 to 3 LP/mm) – OPG units
  • four holes in 0.5 mm Al foil for low contrast resolution tests
  • additional 6 mm aluminium filter
  • PMMA cover

Accessories

  • 0.8 mm copper filter – patient head equivalent
  • positioning holder with space for analogue film or digital detector
  • strap for firm and perpendicular fixing of the phantom to the beam applicator of the X-ray unit
  • rings for centring the phantoms on the beam applicator of the X-ray unit
  • case for storing the phantoms

Features and Test References

  • complies with:
    - IEC 61223-2-7 and IEC 61223-3-4
    - DIN 6868-5 and DIN V 6868-151
    - ÖNORM S 5240-5 and ÖNORM S 5240-11
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
