Pro-Slit
X-Ray Focal Spot Slit Camera - Diagnomatic by Pro-Project - 05-101

Pro-Slit from Diagnomatic by Pro-Project provides a precision slit for X-ray focal spot measurements, including use with dental digital detectors.

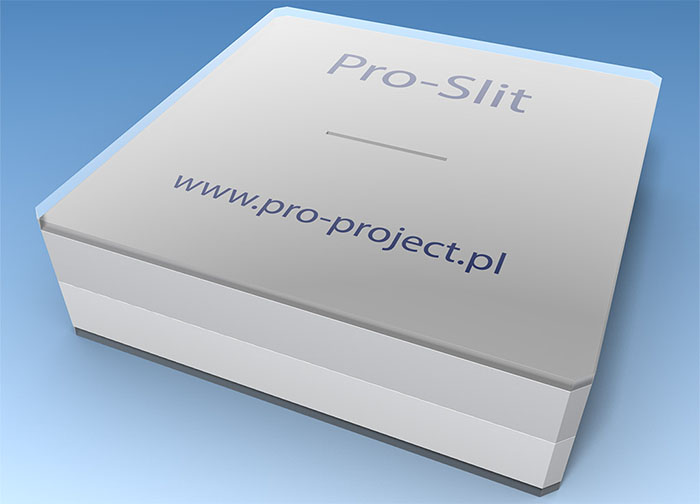

A square object with four beveled edges made of three layers: thin transparent PMMA layer, thick white PMMA layer with thin rectangiular hole in the middle, and thin aluminium layer.

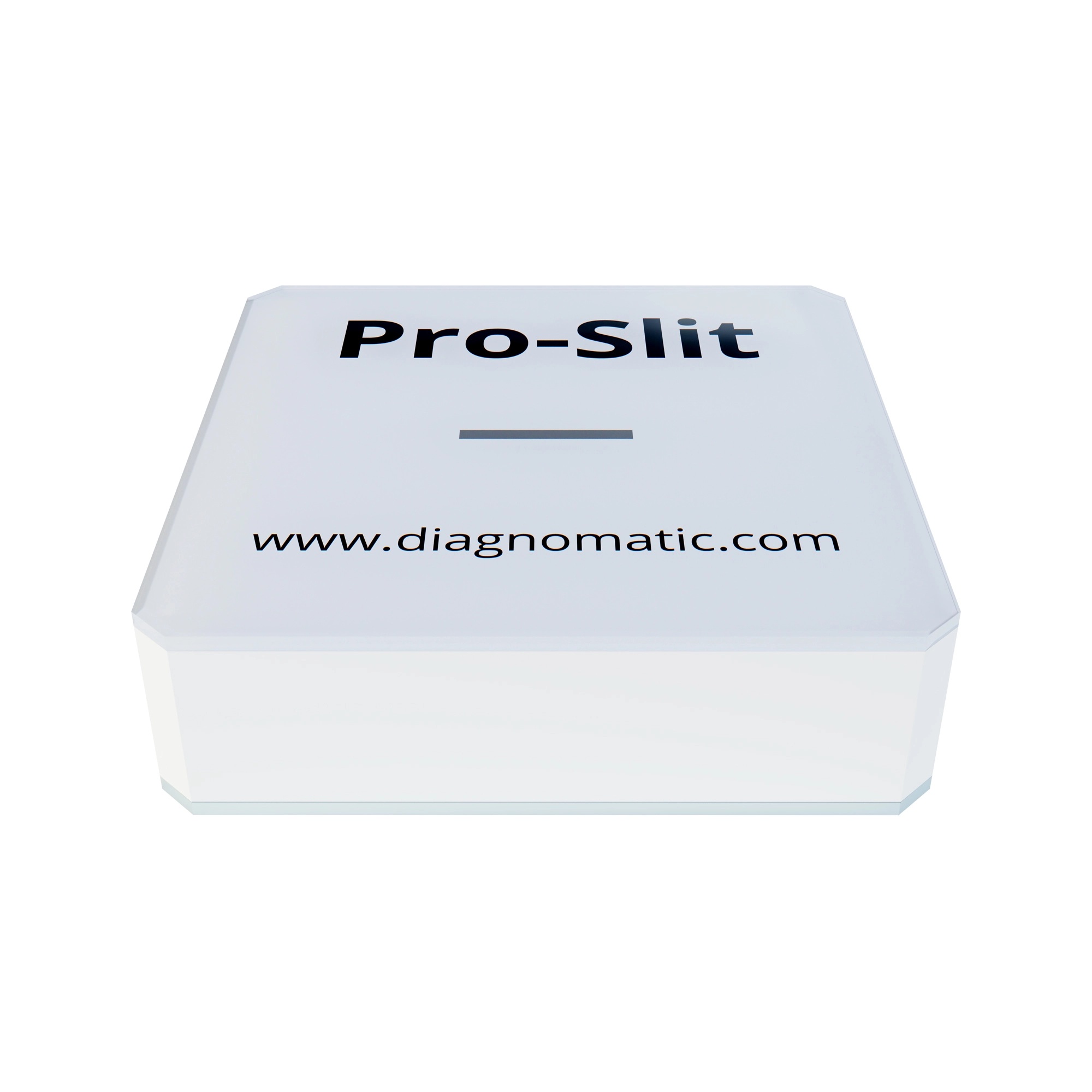

A square object with four beveled edges made of three layers: thin transparent PMMA layer, thick white PMMA layer with thin rectangiular hole in the middle, and thin aluminium layer.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
05-101Pro-Slit

Specifications

  • dimensions: 40 x 40 x 11.5 mm
  • 0.01 mm wide and 10 mm long slit with 8° spread
  • supports the range described in IEC 60336:2020 for the slit evaluation method: 0.1 mm to 3.0 mm
  • diaphragm made of tungsten
  • embedded in PMMA with additional stainless steel shielding
  • optional Pro-Stand in a heavy duty carrying case with two layer foam inly

Features and Test References

  • complies with:
    – IEC 60336:2020
    – IEC 61223-3-1, 2, 4
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
