Pro-Stand
Focal Spot and HVL Test Stand - Diagnomatic by Pro-Project - 05-102, 05-103

Pro-Stand from Diagnomatic by Pro-Project provides adjustable positioning for focal spot measurements and half-value layer testing.

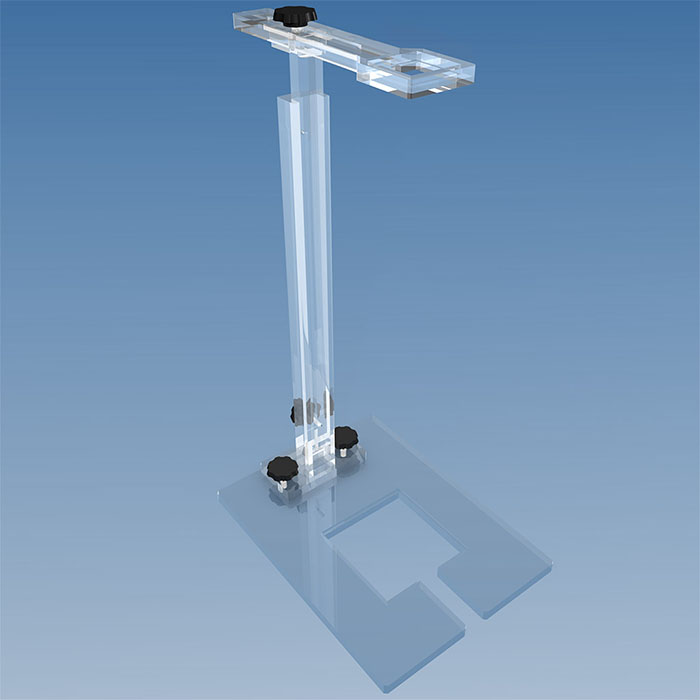

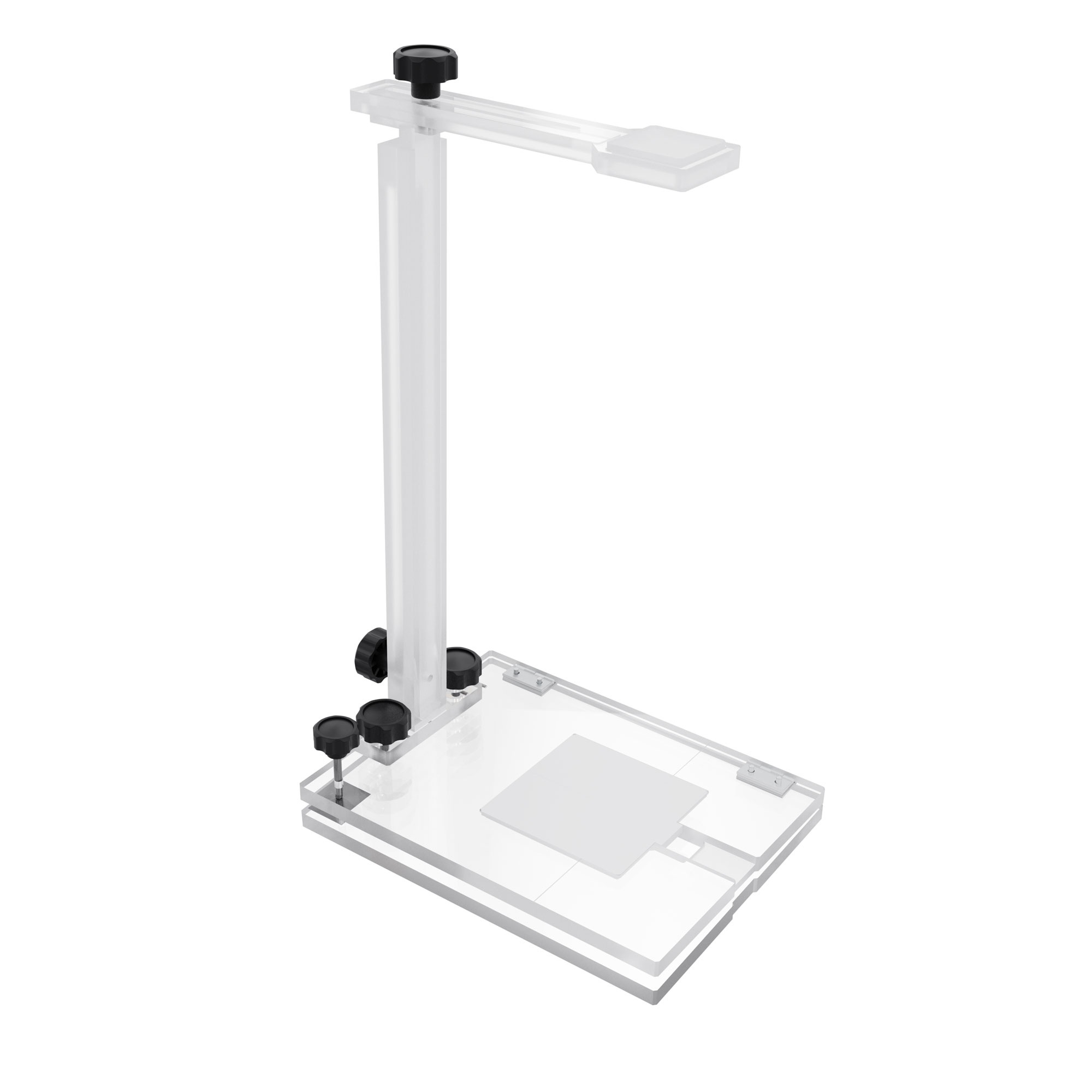

A crane-like stand, made of transparent PMMA, with a rectangular base with adjustable side angle, and interchangeable arm.
A crane-like stand, made of transparent PMMA, with a rectangular base with adjustable side angle, and interchangeable arm.

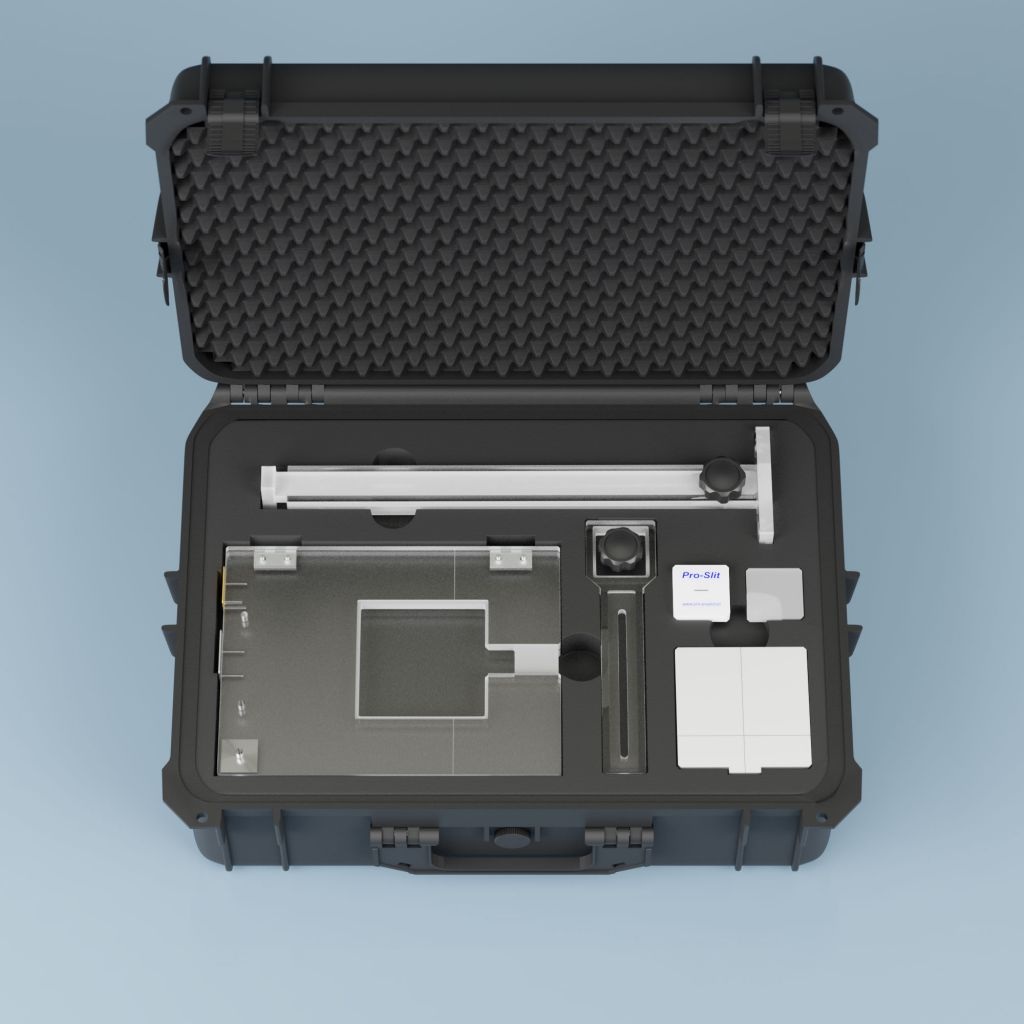

Dissassembled alements of the Pro-Stand in a heavy-duty carrying case.
Dissassembled alements of the Pro-Stand in a heavy-duty carrying case.

Click a photo or illustration to enlarge it.

Models and Ordering

Part numberModel / configuration
05-102R/F applications
05-103All applications including mammography

Specifications

  • adjustable height from 350 mm to over 600 mm (wide range of magnification)

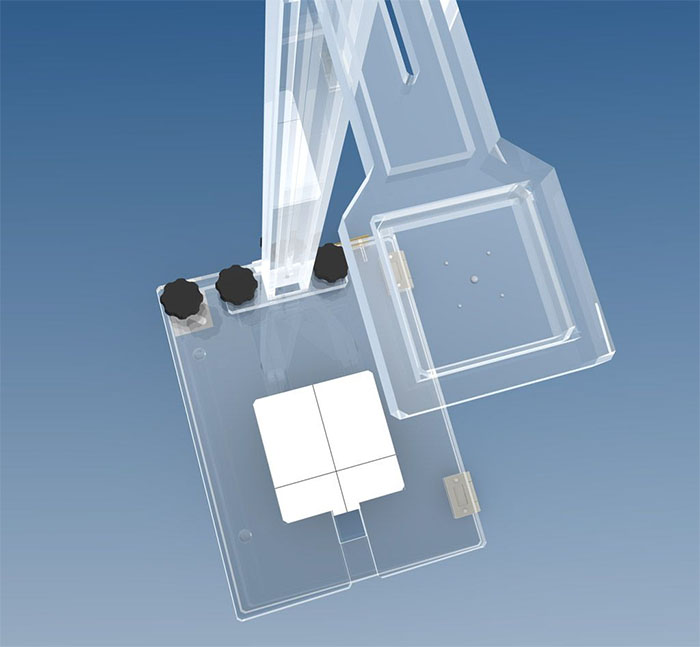

  • adjustable horizontal position and vertical angle (optional - for testing mammography systems) of the table top
  • place in the base for the Pro-Dent positioning stand for accurate positioning of dental RVG detectors
  • optional add-ons for stand alignment verification – especially useful for measurements on mammography units
  • optional wider arm for Pro-HVL filters
  • optional heavy duty carrying case with two layer foam inlay

Features and Test References

  • complies with:
    – IEC 60336:2020
    – IEC 61223-3-1, 2, 4
  • CE marked
  • Includes a manual covering the tests, result evaluation and recording.
