Pro-NM AutoMixer
Nuclear Medicine Phantom Mixer - Diagnomatic by Pro-Project - 08-199

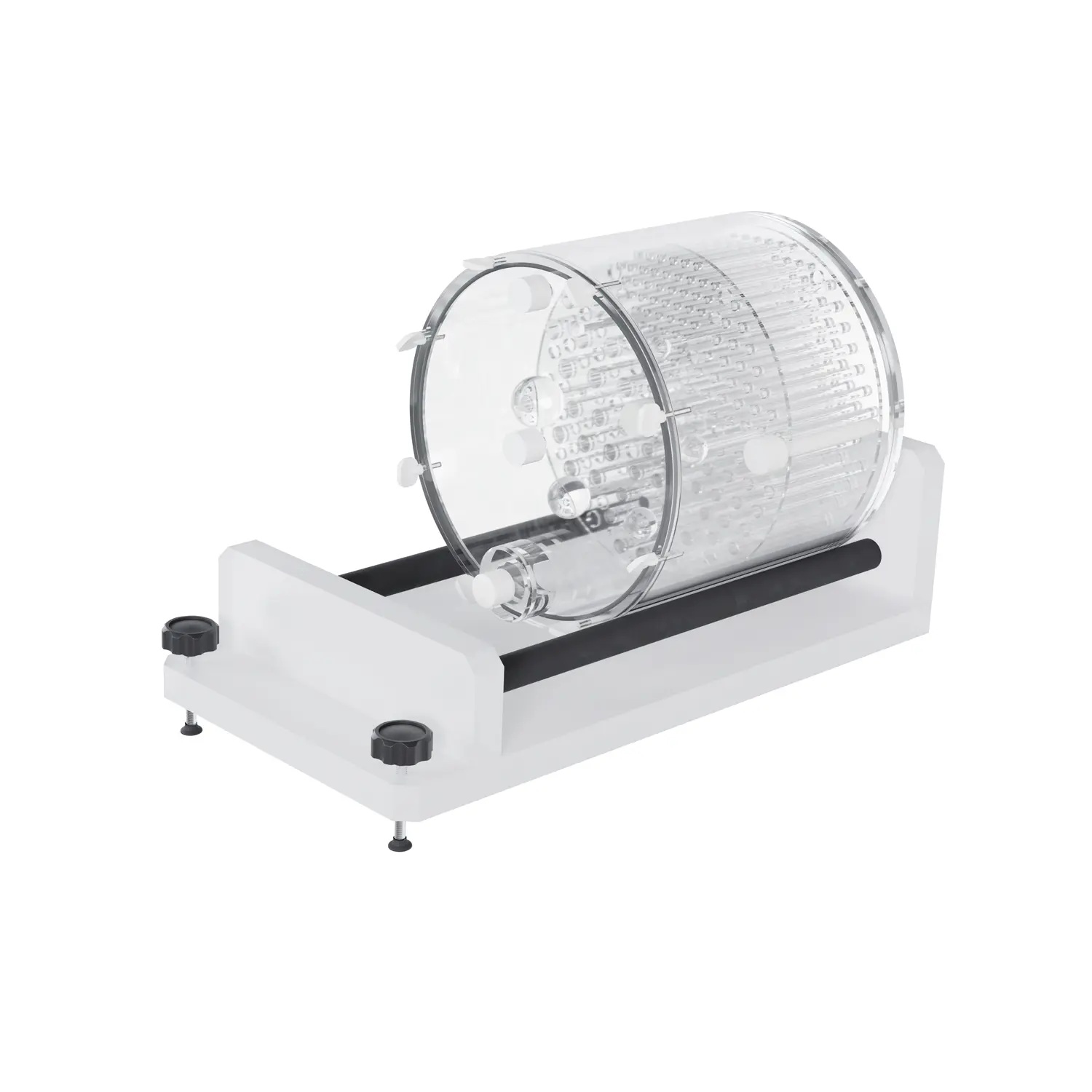

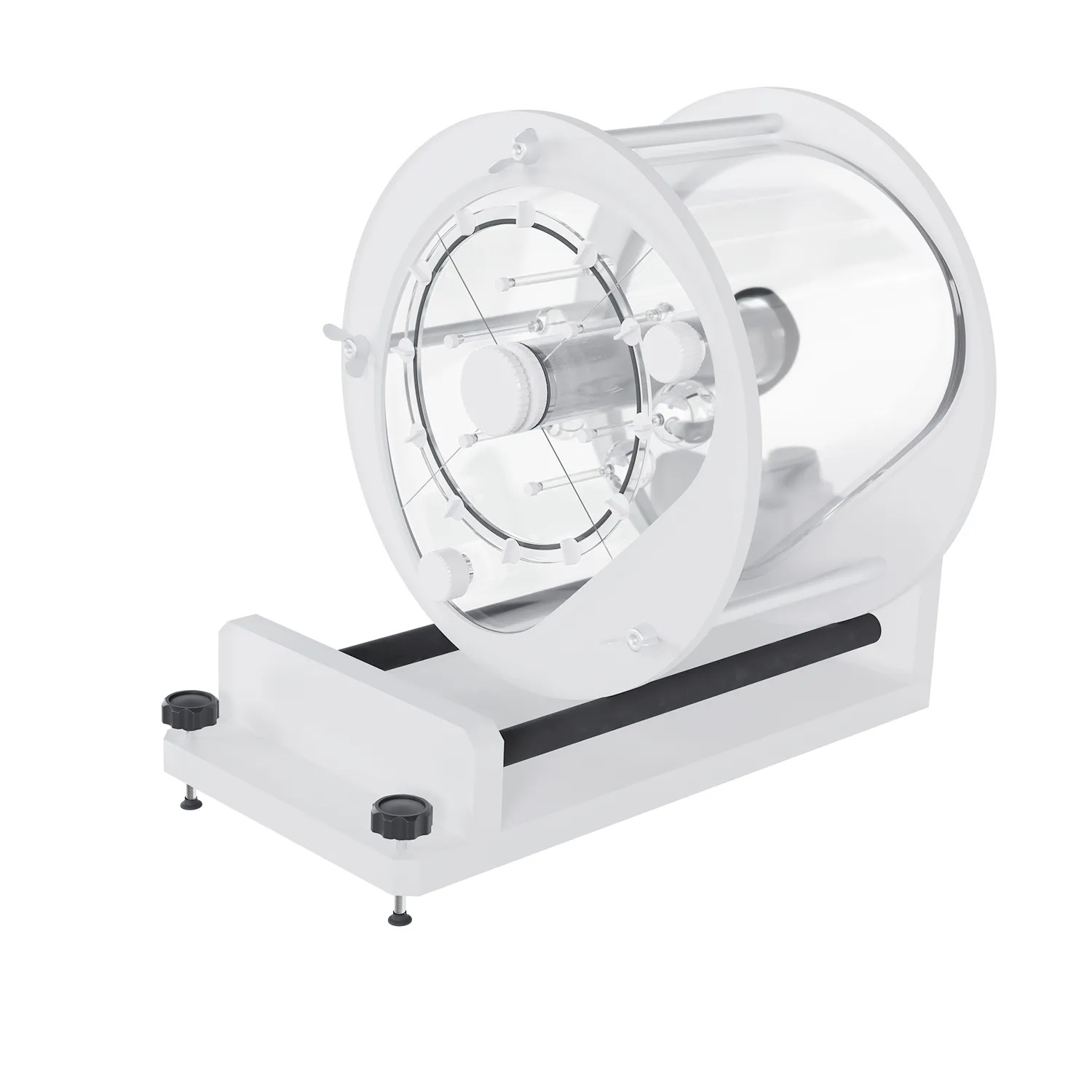

Pro-NM AutoMixer from Diagnomatic by Pro-Project rotates cylindrical nuclear medicine phantoms on rollers to mix their contents before testing.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• designed for: mixing solutions in NM cylindrical phantoms
• mixer dimensions: 425 x 220 x 130 mm
• weight: 4 kg
• rotation speed (depends on phantom size): app. 40 rpm ( for Jaszczak Ø220 mm) and 27 rpm (for NEMA Ø300 mm)
• power supply: plug-in power supply (AC100-240V~50/60Hz)
• power consumption: approx. 10 W
• mixing time: approx 5 - 10 min

Benefits

• reduce radiation exposure for personnel
• more homogeneous radio-nuclide solution
• reduced time spent on test preparation

Accessories

• power supply (included)
• Pro-NM Performance phantom (not-included)
• Pro-NM NEMA phantom (not-included)
• optional rotation support

Features and Test References

• complies with:
  - It applies to cylindrical phantoms, which must be filled with a homogeneous radioactive solution
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
