Pro-NM Performance - Pro-Project
08-101 - standard version
08-103 - version with the PET Lid
Works with Pro-Control.Online Software

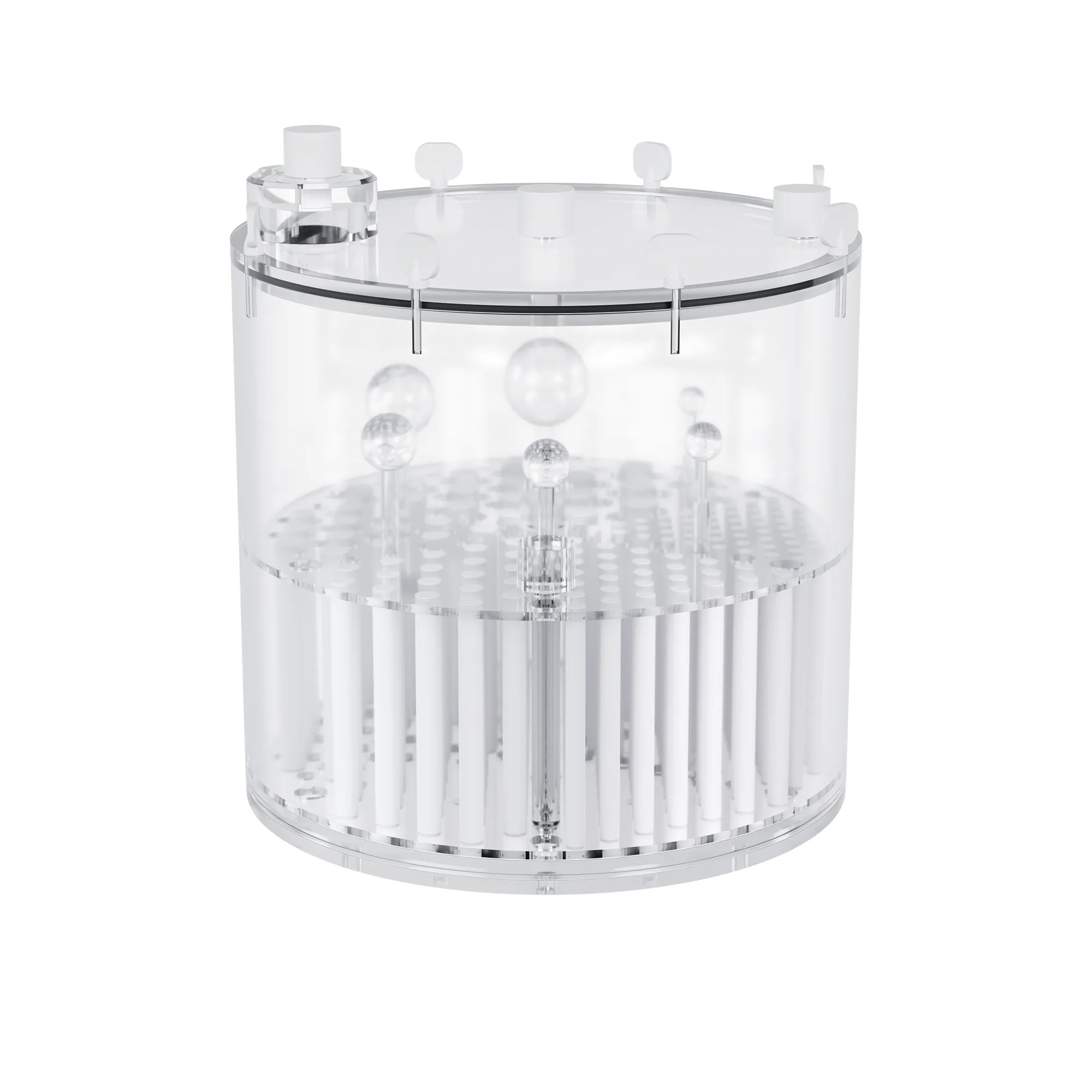

Phantom for NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters). It can be used to evaluate, for example: center-of-rotation error, non-uniformity artifacts, changes of radius-of-rotation on spatial resolution, reconstruction filters on spatial resolution, attenuation and scatter compensation.
Technical data (can be modified to customer specifications):

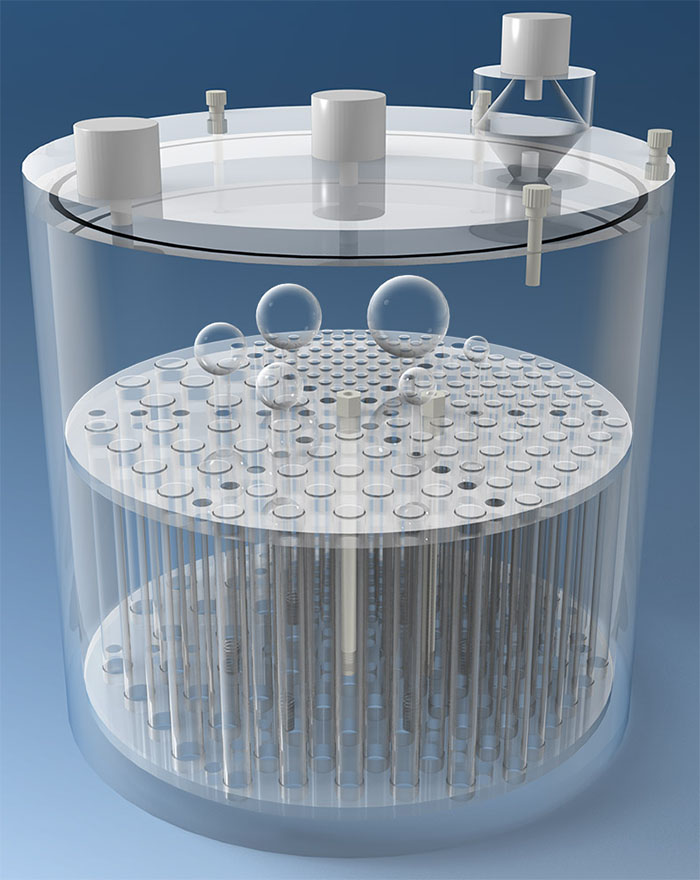

- main cylinder:
- inside cylinder diameter: 206mm
- inside cylinder height: 186mm
- cylinder wall thickness: 7mm
- cold rods insert:
- rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
- height of rods: 88mm
- cold spheres:
- solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8mm
- height of the center of the spheres from the base plate: 127mm

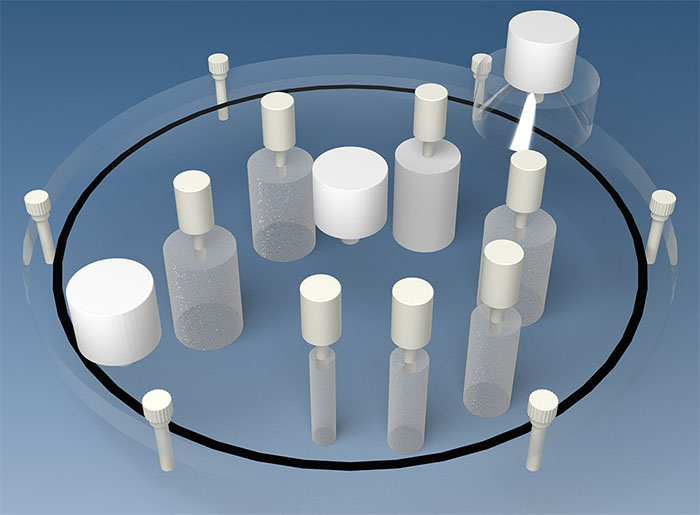

- optional PET Lid with cylindrical samples:
- refillable thin-walled cylinders, diameters: 8, 12, 16 and 25mm
- water filled cylinder diameter: 25mm
- air filled cylinder diameter: 25mm
- PTFE solid cylinder diameter: 25mm
- cylinder height: 38mm
- heavy duty carrying case
- Complies with:
- NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
- AAPM Report No. 9 - Computer Aided Scintillation Camera Acceptance Testing
- AAPM Report No. 22 - Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
- ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
- CE certified
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 08-101 | Pro-NM Performance - Standard Version |
| 08-103 | Pro-NM Performance - Version with the PET Lid |
| Optional | |
| Pro-Control.Online - Phantom Software (Semiautomatic Analysis) | |
