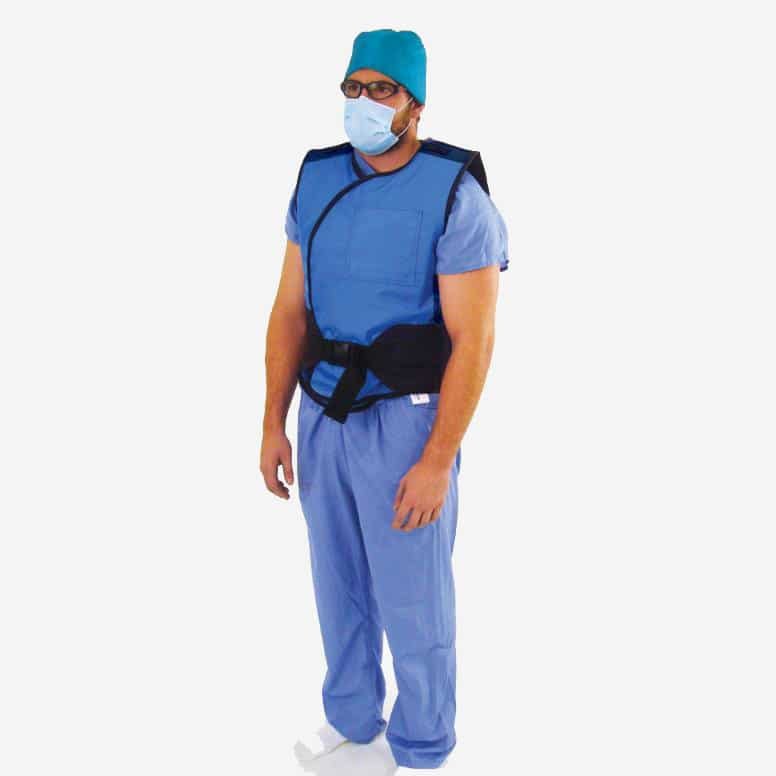

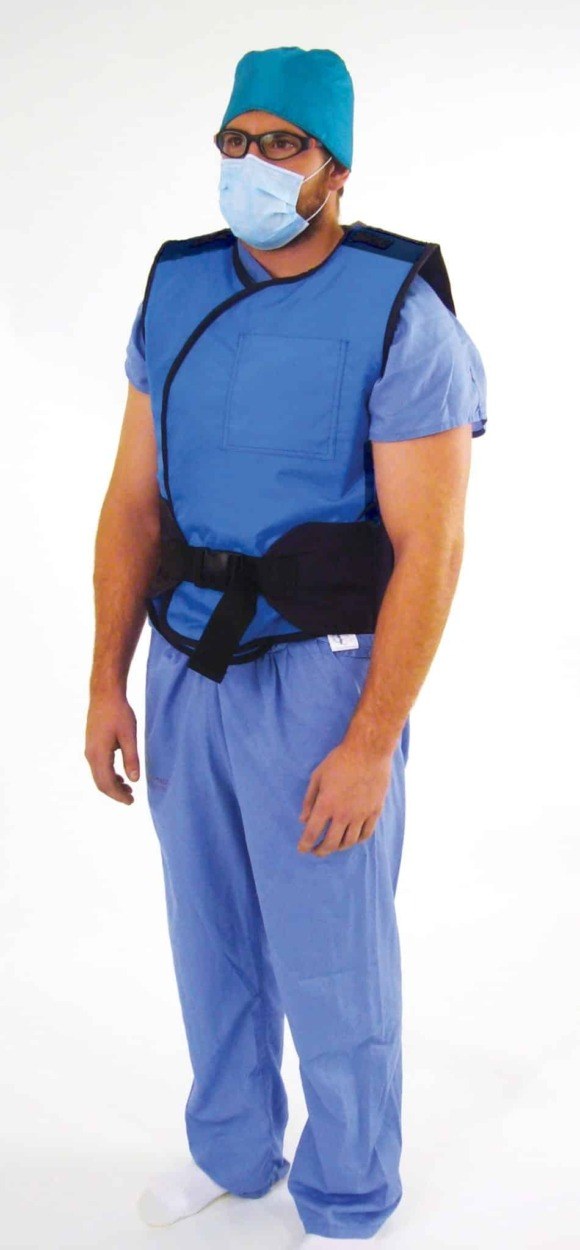

The ErgoLite® "V" Power Ventilated X-ray Vest
Air Cooled Comfort in an Ergonomic Design
LP-EXV600SERIES (family)
Not only does this X-ray Protective Vest eliminate 100% of the weight and contact at the shoulder areas, Our Patented ErgoLite® "V" now combines its exclusive ergonomic design with a Ventilation/Cooling System, that helps keep you cool, making it even more of a Zero Fatigue Apron.
This is possible because of ErgoLite's® Unique design that keeps the garment separated from your upper body. This separation area allows for natural ventilation. Now, this natural ventilation has been enhanced with continuous air movement and ultimately cooled air movement.
Of course all of our ErgoLite® Aprons include a reinforced, flexible internal framework, that can entirely eliminate the Repetitive Stress and Fatigue Problems of the upper back and extremities associated with the shoulder contact and weight of conventional X-ray aprons, now combined with an internal cooling system.
ErgoLite® There's Nothing Else Like It!
The ErgoLite® "V" has an attached air circulator/chiller with continuously variable rheostatic control to adjust air flow to the porous inner lining of the Vest. Its powered by a small rechargeable lithium ion battery pack. A spare Battery Pack and Recharging unit keep you ready and recharged for your next case.

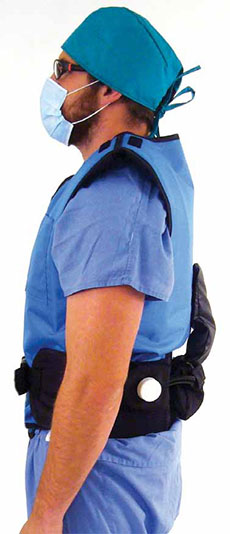

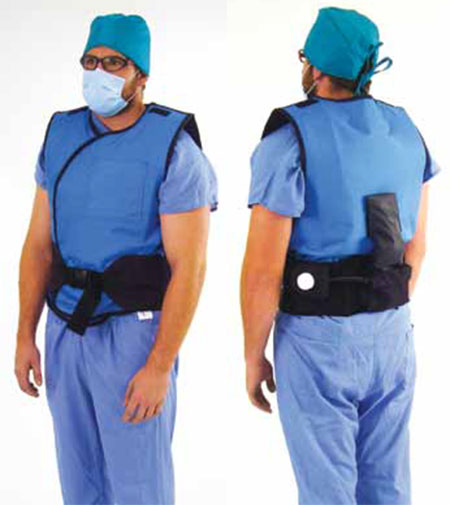

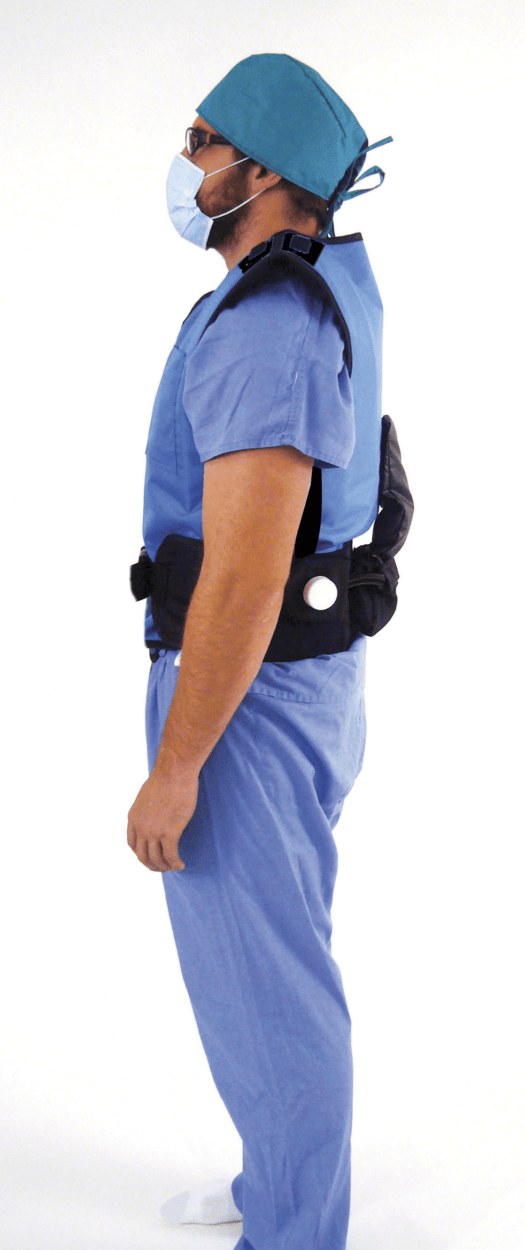

- The ErgoLite® "V" mechanisms are rear mounted on the Back Support Belt, weighing less than a lb.
- The control knob can be reached from the front, but is biased toward the rear so that it can be reached from the back slit of a sterile gown.
- The cooling systems has a circulator output of up to 34 CFM.
- Battery time to discharge at full power is approximately 2 hours, with recharge for the second battery being the same 2 hours.
- Overall Battery Life is 1,000 hours.
 |
 |
Click here to see the Exclusive Lifetime Warranty
| ErgoLite® "V" Power Ventilated X-ray Vests & Kilts | |||||
|
Male Sizes [Size Chart] |
Color | X-BAN® 0.5MM | X-BAN® 0.35MM | Lead Free 0.5mm | Lead Free 0.35mm |
| Small |
Standard Color is Blue For Custom Colors Click Here |
LP-EXV680-4 | LP-EAV680-4 | LP-ELV680-4 | LP-EFV680-4 |
| Medium | LP-EXV681-5 | LP-EAV681-5 | LP-ELV681-5 | LP-EFV681-5 | |
| Large | LP-EXV682-6 | LP-EAV682-6 | LP-ELV682-6 | LP-EFV682-6 | |
| X-Large | LP-EXV683-7 | LP-EAV683-7 | LP-ELV683-7 | LP-EFV683-7 | |
|
Female Sizes [Size Chart] |
Color | X-BAN® 0.5MM | X-BAN® 0.35MM | Lead Free 0.5mm | Lead Free 0.35mm |
| Petite |
Standard Color is Blue For Custom Colors Click Here |
LP-EXV600-4 | LP-EAV600-4 | LP-ELV600-4 | LP-EFV600-4 |
| Small | LP-EXV601-5 | LP-EAV601-5 | LP-ELV601-5 | LP-EFV601-5 | |
| Medium | LP-EXV602-6 | LP-EAV602-6 | LP-ELV602-6 | LP-EFV602-6 | |
| Large | LP-EXV603-7 | LP-EAV603-7 | LP-ELV603-7 | LP-EFV603-7 | |
| ErgoLite® "V" Includes Vest & Kilt with Battery Operated Ventilation System, Spare Rechargeable Battery & Charger | |||||
The ErgoLite V Vest combines its internal support structure with a ventilation and cooling system.
- Separation between garment and upper body supports airflow.
- X-Ban LeadFree and X-Ban SuperLightweight selections are listed, with 0.35 mm and 0.5 mm lead-equivalence options.
- Custom colors, binding colors and embroidery can be discussed with Supertech.
| Item / specification | Details |
|---|---|
| Model / item number | LP-EXV600SERIES (family) |
Configuration Choices
Specify the required configuration when requesting a quote.
| Ergolite v vest | X-Ban LeadFree, X-Ban SuperLightweight |
|---|---|
| Lead equivalence | 0.35mm, 0.5mm |
| Binding colors | Black, Blue, Default, Fuchsia, Green, Navy, Red, Silver, Yellow |
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
