Image-Guided Abdominal Biopsy Phantom CIRS 071
Transparent for demonstrations and for visual identification of needle placement

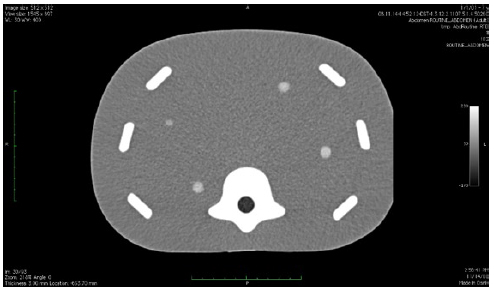

The Model 071 Image-Guided Abdominal Biopsy Phantom is based on the need for simplified abdominal training phantoms. Although it does not contain organs, the randomly positioned lesions are visible under ultrasound and CT.
Twelve randomly positioned lesions range in size from 8 to 12mm. The phantom also includes ribs and a simulated spine. The solid polymer gel will not leak when punctured. This phantom is well suited for training and demonstrating image-guided navigation technologies or any other procedure where visually locating the needle is important.
Features- Validate automated biopsy systems
- Improve performance of freehand abdominal biopsies
- Test new equipment
Model 071 SpecificationsLength: 125 mmWidth: 280 mm Height: 200 mm Weight: 5500 grams Background Material: Zerdine® |
MASSES Material: Zerdine®, soft tissue Quantity: 12, randomly positioned in background Diameter: 8 - 12mm RIBS AND VERTEBRAE Material: Epoxy |
|

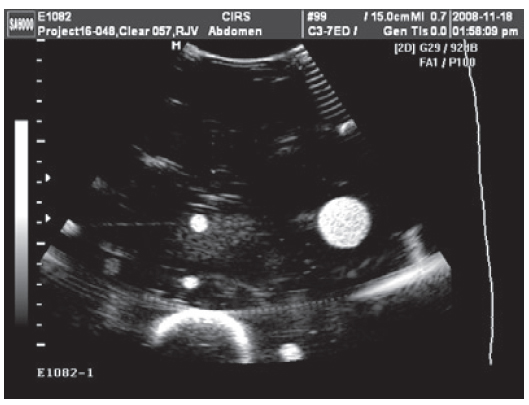

Model 071 Ultrasound Image |
