Prostate Elastography Ultrasound Phantom CIRS 066
The ideal demonstration tool for sonoelastography
The CIRS Model 066 Prostate Elastography Phantom is a disposable phantom developed for demonstrating procedures which involve the exciting new modality of sonoelastography.

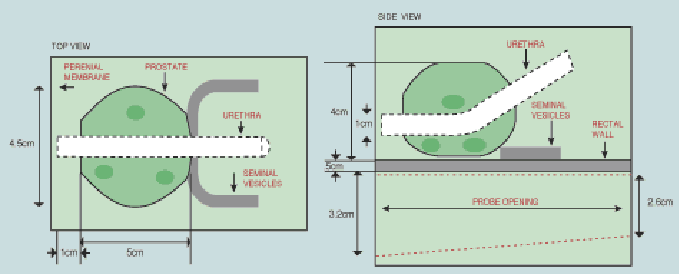

The prostate, along with structures simulating the rectal wall, seminal vesicles and urethra, is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.

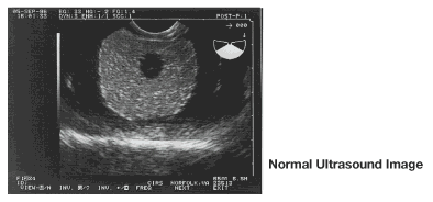

Based on the popular CIRS Tissue Equivalent Ultrasound Prostate phantom. The Model 066 contains 3 isoechoic lesions that are three times harder than the simulated prostate tissue. Under normal ultrasound they cannot be detected but are readily visible on elastograms.
(1)US PATENT# 5196343
Specifications |
||
|
CONTAINER: Material: Clear acrylic Dimensions: 11.5 cm x 7.0 cm x 9.5 cm Front probe opening: 3.2 cm diameter Rear probe opening: 2.6 cm diameter PERINEAL MEMBRANE: 4.5 cm diameter 3 mm thick urethane BACKGROUND GEL: Similar to water with very little back- scatter attenuation ≤ 0.07 dB/cm/MHz URETHRA: Dimensions: 0.7 cm diameter Material: Zerdine®, low scatter |
SEMINAL VESICLES: Dimensions: 7 mm diameter x 10 cm long Material: Zerdine® Properties: Speed=1540 m/s Attenuation=0.5 dB/cm/MHz Backscatter similar to liver tissue PROSTATE: Material: Green Zerdine®, high scatter Volume: approximately 53 cc RECAL WALL: Dimensions: 6 cm x 11 cm x 0.5 cm Material: Zerdine® Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue |
Lesions: 3 embedded isoechoic lesions. 1 cm diameter randomly placed. |
|
||
