Prostate Ultrasound Demonstration Phantom CIRS 058
Non-disposable urethane phantom for prostate imaging
The Model 058 is a derivative of the Model 053 Ultrasound Prostate Training Phantom. The Model 058 is durable and appropriate for repetitive demonstration scanning.

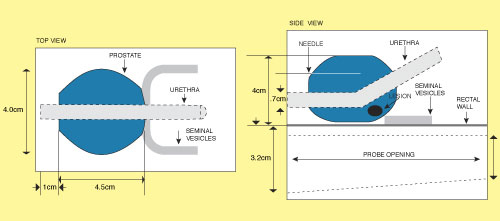

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear container.
A needle is embedded within the prostate to demonstrate needle localization. The phantom also contains a simulated lesion and calcification cluster.
This phantom is an ideal demonstration device for rectal scanning.
Specifications
|
Container: Material: Clear PETG Dimensions: 11.5 cm X 7.0 cm X 9.5 cm Front probe opening: 3.2 cm diameter Rear probe opening: 2.6 cm diameter |
Background gel: Similar to water with very little backscatter attenuation ≤ 0.20 db/cm/MHz Urethra: Dimensions: 0.7 cm diameter Material: urethane, low scatter Seminal vesicles: Dimensions: 7 mm diameter X 10 cm long Material: urethane |
Prostate: Dimensions: 5 cm X 4.5 cm X 4.0 cm Material: Blue urethane, high scatter Volume: approximately 53cc Rectal wall: Dimensions: 6 cm X 11 cm X .5 cm Material: Urethane, Backscatter similar to liver tissue |
