Multi-Modality Prostate Training Phantom CIRS 053-MM
The ideal training device for Ultrasound, CT and MRI guided procedures
The CIRS Model 053-MM Multi-Modality Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate under ultrasound, CT or MRI.

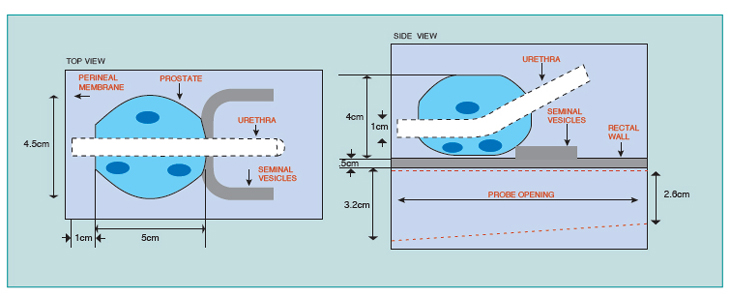

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm x 7.0 cm x 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.
This phantom is an ideal training device for any interventional prostate procedure guided by ultrasound, CT or MRI.
|
Specifications |
|
|
CONTAINER: Material: Clear acrylic Dimensions: 11.5 x 7.0 x 9.5 cm Front probe opening: 3.2 cm Ø Rear probe opening: 2.6 cm Ø PERINEAL MEMBRANE 4.5 cm Ø 3 mm thick urethane BACKGROUND GEL: Similar to water with very little backscatter attenuation ≤ 0.07 db/cm-MHz URETHRA Dimensions: 0.7 cm Ø Material: Zerdine®(1) , low scatter |
SEMINAL VESICLES: Dimensions: 7 mm Ø x 10 cm long Material: Zerdine®(1) Properties: Speed = 1540 m/s Attenuation = 0.5 dB/cm-MHz Backscatter similar to liver tissue PROSTATE: Dimensions: 5 x 4.5 x 4.0 cm Material: Blue Zerdine®(1), high scatter Volume: approximately 53 cc RECTAL WALL: Dimensions: 6 x 11 x 0.5 cm Material: Zerdine®(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm-MHz Backscatter similar to liver tissue |
