Prostate Ultrasound Training Phantom Seed Placement CIRS 053-I
The ideal training device for permanent seed implantation procedures
The CIRS Model 053-I Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing permanent seed implantation procedures. It contains several unique features to assist the teaching and learning process.
The simulated perineal membrane permits needle insertion with realistic resistance. In addition, the area below the rectal wall is a clear gel to permit visualization of probe orientation. The prostate is transparent to allow visual verification of seed placement. The phantom also includes a removable pubic arch simulation.
This modification to the CIRS Model 053 phantom was developed with Dr. Peter Grimm and his associates at the Seattle Prostate Institute.

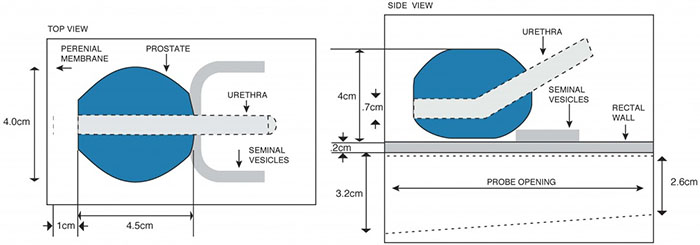

| Specifications | |
| Container |
Material: Clear acrylic Dimensions: 11.5 x 7.0 x 9.5 cm Front probe opening: Ø 3.2 cm Rear probe opening: Ø 2.6 cm |
| Perineal Membrane | 3mm thick urethane |
| Background Gel | Similar to water with very little backscatter attenuation ≤ 0.07 dB/cm-MHz |
| Urethra |
Dimensions: Ø 0.7 cm Material: Zerdine®1, low scatter |
| Seminal Vesicles |
Dimensions: Ø 7 mm x 10 cm long Material: Zerdine® Properties: Speed = 1540 m/s Attenuation = 0.5 dB/cm-MHz Backscatter similar to liver tissue |
| Prostate |
Dimensions: 4.0 x 4.5 x 4.0 cm Material: Zerdine®, low scatter |
| Rectal Wall |
Dimensions: 6 x 11 x 0.2 cm Material: Zerdine® Properties: Speed = 1540 m/s Attenuation = 0.5 dB/cm-MHz Backscatter similar to liver tissue |
| Other Features | Removable public arch |
| Note: This phantom is not intended to ultrasonically mimic the human prostate. | |
| 053-I Includes |
Ultrasound Prostate Training Phantom User Guide 6-Month Warranty |
| Prostate Phantom Selection Guide | ||
| Model | Description | Transducer Type |
| 053S | Tissue-Equivalent Ultrasound Prostate Phantom without Lesions | Side-Fire or BiPlane |
| 053L | Tissue-Equivalent Ultrasound Prostate Phantom with Lesions | Side-Fire or BiPlane |
| 053L-EF | Tissue-Equivalent Ultrasound Prostate Phantom with Lesion for End-Fire Transducers | End-Fire |
| 053-I | Ultrasound Prostate Training Phantom | Side-Fire or BiPlane |
1 US PATENT #5196343
