Prostate Training Phantom Brachytherapy, Minimal Needle Tracks CIRS 053G
The ideal training device for ultrasound guided procedures

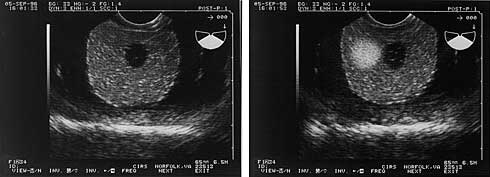

The CIRS Model 053G Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe.

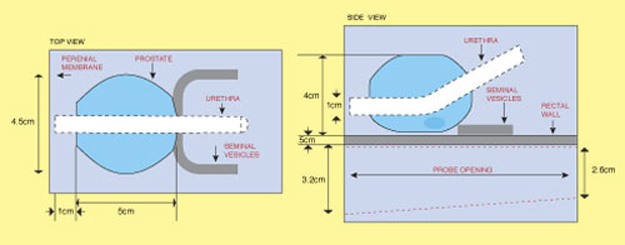

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.
This phantom is an ideal training device for ultrasound guided radioactive seed implantation. Uses an oil-based gel for minimal needle tracks.
|
Container: Material: Clear acrylic Dimensions: 11.5 cm X 7.0 cm X 9.5 cm Front probe opening: 3.2 cm diameter Rear probe opening: 2.6 cm diameter Perineal membrane: 4.5 cm diameter 3 mm thick urethane Background gel: Similar to water with very little backscatter attenuation ≤ 0.07 db/cm/MHz Urethra: Dimensions: 0.7 cm diameter Material: Zerdine® , low scatter |
Seminal vesicles: Dimensions: 7 mm diameter X 10 cm long Material: Zerdine®(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue Prostate: Dimensions: 5 cm X 4.5 cm X 4.0 cm Material: Blue Zerdine, high scatter Volume: approximately 53 cc Rectal wall: Dimensions: 6 cm X 11 cm X 0.5 cm Material: Zerdine®(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue |
Versions Available: EF. Optimized for scanning with end-fire transducers & Pubic arch simulator. G. Oil based prostate gel for minimal needle tracks. I. Seed implant version-see data sheet for Model 053-I MM. Multi-Modality for Ultrasound, CT, & MRI |
