Prostate Ultrasound Training Phantom CIRS 053 Tissue Equivalent/Cryotherapy
The ideal training device for ultrasound guided procedures

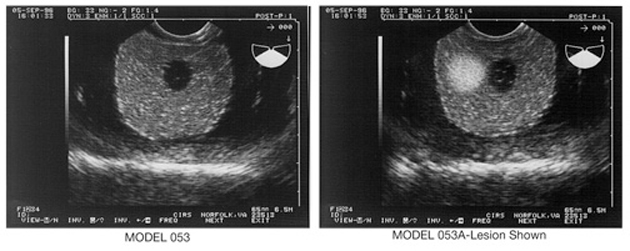

The CIRS Model 053 Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe.
The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.
This phantom is an ideal training device for ultrasound guided cryosurgery, radioactive seed implantation, and needle biopsy.
Specifications
|
Container: Material: Clear acrylic Dimensions: 11.5 cm X 7.0 cm X 9.5 cm Front probe opening: 3.2 cm diameter Rear probe opening: 2.6 cm diameter Perineal membrane: 4.5 cm diameter 3 mm thick urethane Background gel: Similar to water with very little backscatter attenuation ≤ 0.07 db/cm/MHz Urethra: Dimensions: 0.7 cm diameter Material: Zerdine®(1), low scatter |
Seminal vesicles: Dimensions: 7 mm diameter X 10 cm long Material: Zerdine®(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue Prostate: Dimensions: 5 cm X 4.5 cm X 4.0 cm Material: Blue Zerdine®(1), high scatter Volume: approximately 53 cc Rectal wall: Dimensions: 6 cm X 11 cm X 0.5 cm Material: Zerdine®(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue |
Versions Available 053A-EF - For end fire tranducers See data sheet for Model 053A-EF 053D - Semi-clear prostate allows visualization of seed placement. 053F - Hollow urethra for catheterinsertion. 053G - Oil based prostate gel for minimal needle tracks. 053I - Seed implant version-see data sheet for Model 053-I |
